DS18

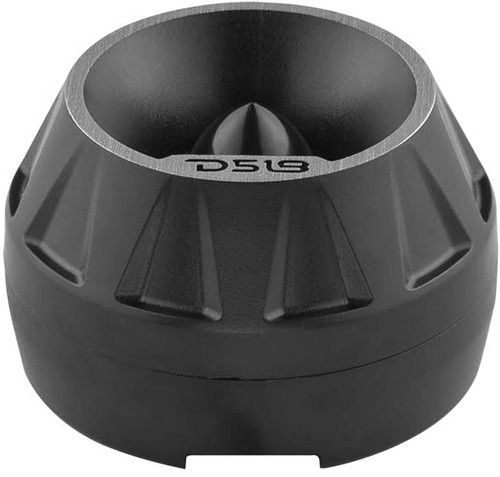

DS18 PRO-TSQ3IN1 3" Surface/Flush/Angle High Compression Neodymium Super Bullet Tweeter (Pair)

$68.99
$54.99
SKU:
PRO-TSQ3IN1
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

DS18 PRO-TSQ3IN1 3" Surface/Flush/Angle High Compression Neodymium Super Bullet Tweeter (Pair)

$68.99
$54.99

About: DS18 PRO-TSQ3IN1 3" Surface/Flush/Angle High Compression Neodymium Super Bullet Tweeter (Pair)

Do you crave versatility and the ability to customize your car audio experience to match your dynamic aesthetic? Look no further than DS18's PRO-TSQ3IN1, a tweeter designed to revolutionize your car audio system. Adapting effortlessly to your installation needs, DS18’s PRO-TSQ3IN1 offers multiple mounting options with a simple flick of the wrist. Here at DS18, we understand the demands of car audio enthusiasts worldwide, which is why the PRO-TSQ3IN1 is engineered with a fully modular design, complete with all the necessary hardware for a seamless installation. But that’s just the beginning.  DS18's PRO-TSQ3IN1 goes beyond versatility. With three distinct mounting modes at your disposal, the PRO-TSQ3IN1 not only caters to your audio requirements but also presents a fresh new look every time you switch mounts.

With Peak Power Handling of 200 watts, the PRO-TSQ3IN1 takes very little wattage to achieve eardrum-shattering volume levels. It’s astounding sensitivity of 102dB ensures that every nuance of your music is faithfully reproduced. The PRO-TSQ3IN1 features a 1" Kapton CCA voice coil engineered with a neodymium magnet structure. This powerful combination guarantees precise and accurate sound reproduction, allowing you to enjoy the richness of your favorite music. Its aluminum alloy diaphragm resonates with clarity, delivering a full spectrum of frequencies from 3kHz to 20kHz. Pair it with a recommended hi-pass crossover at 2kHz and immerse yourself in a world of audio excellence. Experience firsthand the dynamic power of DS18's PRO-TSQ3IN1, and join the ranks of satisfied customers who have elevated their car audio setups to new heights.

Product Highlights:

  • 3" Super Bullet Tweeter
  • RMS Power: 100 Watts(200 Watts Peak)
  • Impedance: 4 Ohm ~ 102dB
  • Neodymium Magnet

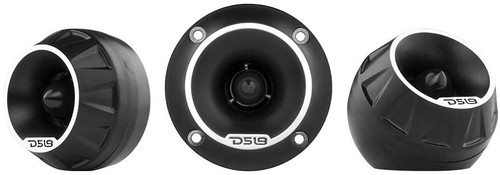

  • Flat ~ Angle ~ Flush Mounts
  • Pair

Specifications:

  • Nominal Diameter: 3" (2.2 mm)
  • Nominal Impedance: 4 Ohms
  • AES Power Handling: 50W
  • Program Power Handling: 100W
  • Peak Power Handling: 200W
  • Sensitivity (1w/1m): 102 dB
  • Frequency Response: 3K-20KHz
  • Recommended Hi Pass Crossover: 2KHz

Motor:

  • Voice Coil Diameter: 1" (25.4 mm)
  • Voice Coil Former Material: Kapton
  • Winding Material: CCA
  • Diaphragm Material: Aluminum Alloy
  • Body Material: ABS
  • Magnet Material: Neodymium

Measurements:

Mode 1 (Flush Mount)

  • Overall Diameter: 2.95" (75 mm)
  • Overall Depth: 1.39" (35.5 mm)
  • Front Mount Baffle Cutout: 2.26" (57.5 mm)
  • Mounting Depth: 1" (26 mm)
Mode 2 (Angle Mount):
  • Overall Width: 2.26" (57.5 mm)
  • Overall Height: 2.1" (53.5 mm)
  • Overall Depth: 2.3" (60 mm)

Mode 3 (Flat Surface Mount):

  • Overall Diameter: 2.26" (57.5 mm)
  • Overall Height: 1.4" (35.9 mm)
