DS18

DS18 PRO-TW220 3” PRO Aluminum Super Bullet Tweeter with Built in Crossover - Silver

$55.99
$46.99
SKU:
PRO-TW220
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

DS18 PRO-TW220 3” PRO Aluminum Super Bullet Tweeter with Built in Crossover - Silver

$55.99
$46.99

About: DS18 PRO-TW220 3” PRO Aluminum Super Bullet Tweeter with Built in Crossover - Silver (Pair)

he DS18 PRO-TW220 are out-of-this-world tweeters and for good reason. With 240W peak power handling and a frequency response of 2KHz to 20KHz, these professional grade super tweeters deliver accurate sounds at high frequencies––perfect if you like your highs crisp, bright, and loud! Better yet, the Bullet dust cover protects the voice coil and ensures that your highs cut through the noise. Order the DS18 PRO-TW220 today to upgrade your sound system and produce highs that are loud, crisp, and accurate.

Product Highlights:

  • 3" Pro Aluminum Super Bullet Tweeter
  • RMS Power: 120 Watts (240 Watts Peak)
  • Impedance: 4 Ohm - 104dB
  • Frequency Response: 2KHz to 20KHz
  • Body Material: Aluminum
  • Pair

Specifications:

  • Nominal Diameter: 3.2" (81 mm)
  • Nominal Impedance: 4 Ohms
  • AES Power Handling: 60W
  • Program Power Handling: 120W
  • Peak Power Handling: 240W
  • Sensitivity (1w/1m): 104dB
  • Frequency Response: 2K-20Khz
  • Recommended Hi Pass Crossover: 3Khz
  • Sold In Pair or Single: Pair

Body / Features:

  • Filter (Bass Blocker): 4.7uf/50v (Included)
  • Body Material: Aluminum
  • Body Color / Finish: Black Sandblasted
  • Faceplate Color / Finish: Aluminum / Black
  • Bullet Material: Aluminum
Motor:
  • Voice Coil Diameter: 1" (25.4 mm)
  • Voice Coil Former Material: Kapton
  • Winding Material: CCAR
  • Diaphragm Material: Aluminum
  • Magnet Material: Ferrite
  • Magnet Weight: 8 Oz

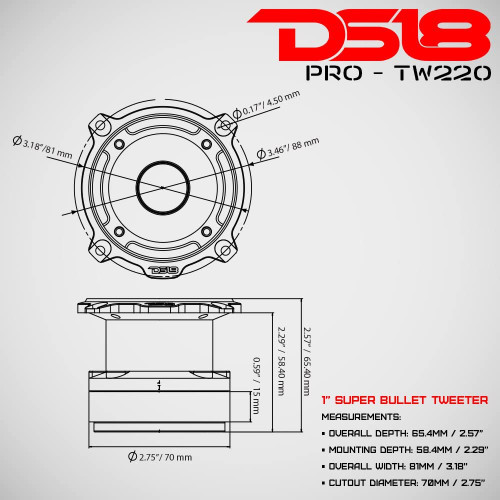

Measurement

  • Overall Diameter: 3.2" (81 mm)
  • Overall Depth: 2.57" (65.4 mm)
  • Front Mount Baffle Cutout: 2.83" (72 mm)
  • Mounting Depth: 2.3" (58.4 mm)
