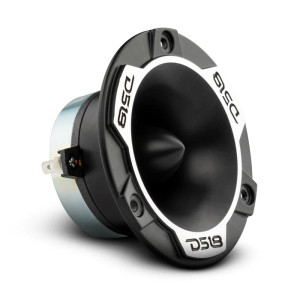

About: DS18 PRO-TWN3 2.5" High Compression Neodymium Tweeter

Brace yourself for an unparalleled auditory experience as the PRO-TWN3 takes your car audio system to new heights, combining superior sound quality, mind-blowing volume, and a sleek, attention-grabbing design. Featuring a square design that demands attention, the PRO-TWN3 is not just about exceptional performance. Mount these tweeters tightly side by side, and watch as your sound system transforms into a complete wall of extraordinary highs, captivating your senses and onlookers. In the world of car audio, precision is paramount. That's why DS18 leaves no stone unturned when it comes to the construction of the PRO-TWN3. The tweeter features a 1-inch voice coil diameter, meticulously crafted with Kapton—a material known for its exceptional heat resistance and durability. The voice coil winding, made from CCAW, guarantees precise and accurate sound reproduction, while the diaphragm, crafted from PEN, ensures optimal performance.

Power is at the core of the PRO-TWN3. With a power rating of 50W AES and a peak power handling of 200W, these tweeters play with authority. They effortlessly command the stage, ensuring that every high-range frequency is delivered with unparalleled precision and impact. Feel the power surge through your system as you explore new dimensions of sonic bliss. But it's not just about power—it's about integration. The PRO-TWN3's compact size makes it a breeze to mount, and its versatile design allows for easy pairing, ensuring a visually striking installation. DS18 understands the importance of aesthetics, creating a tweeter that not only sounds phenomenal but also elevates the overall look of your audio system.

Product Highlights:

• 2.5" High Compression Tweeter
• MAX Power:  200 Watts
• RMS Power: 100 Watts
• Impedance: 4-Ohm
• Neodymium Magnet
• Flush Style Mount

Specifications:

• Nominal Diameter: 2.5" / 63mm
• Nominal Impedance: 4 Ohms
• AES Power Handling: 50W
• Program Power Handling: 100W
• Peak Power Handling: 200W
• Sensitivity (1w/1m): 107 dB
• Frequency Response: 1.6 KHz - 20 KHz
• Recommended Hi Pass Crossover: 2 KHz
• Pair or Single: Single
• Filter Included: Yes 2.2 uf

Motor:

• Voice Coil Diameter: 1" / 25.4mm
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Diaphragm Material: PEN
• Magnet Material: Neodymium
• Magnet Weight: 0.57 oz
• Body Material: PC

Measurements:

• Overall Diameter: 2.48" X 2.48" / 63 x 63 mm
• Overall Depth: 1.49" / 32.8 mm
• Front Mount Baffle Cutout: 2.12" / 54mm
• Mounting Depth: 1.32" / 33.5mm
• Product Weight: 0.34 lbs
• Product Dimensions: 3.1875" x 2.75" x 2"
