Descriptions

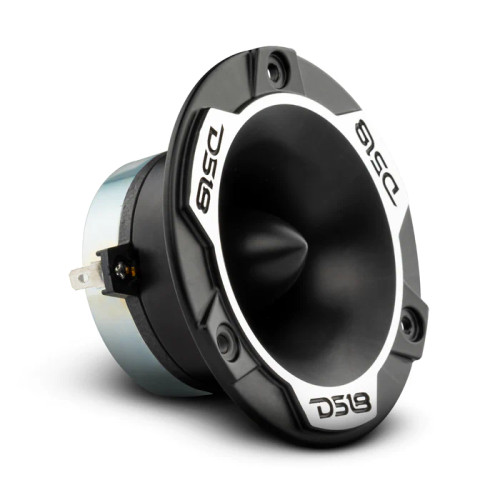

About: DS18 PRO-TWN6.4 4" High Compression Neodymium Tweeter 1.25" VC - 4 Ohm (Each)

Unlock the full potential of your high frequency response with the DS18 PRO-TWN6.4. The PRO-TWN Series Tweeter, a time-honored legend in the competitive professional audio scene, has returned with unparalleled brilliance and clarity. DS18’s PRO-TWN6.4 is a masterpiece, featuring a 1.25" Voice Coil that harmonizes seamlessly with your car's audio system.

Crafted with an aluminum body, the PRO-TWN6.4 not only delivers exceptional sound but also exudes elegance and sophistication. The black and machined finish adds a touch of class, ensuring that it effortlessly blends into the aesthetics of your vehicle. Its 1.25" voice coil, encased in Kapton and wound with CCAR, guarantees durability and superior heat resistance, allowing you to enjoy its mesmerizing sound for years to come. The Polyimide diaphragm faithfully reproduces even the most intricate musical details, capturing the essence of every melody with utmost accuracy.

But, what sets DS18’s PRO-TWN6.4 apart from the rest is its revolutionary neodymium magnet. By utilizing this magnet, we have unlocked new levels of efficiency while significantly reducing the tweeter's weight. With an unrivaled sensitivity of 109 dB, DS18’s PRO-TWN6.4 effortlessly achieves mind-blowing volumes with minimal power consumption.

With the power of cutting-edge technology, the PRO-TWN6.4 handles AES Power at 75W, Program Power at 150W, and Peak Power at an electrifying 300W. Prepare yourself for a sonic adventure that will leave you breathless. Designed to fit seamlessly into most spaces with slight modification or fabrication, the PRO-TWN6.4’s integrate flawlessly with your setup, taking center stage in your audio performance.

Product Highlights:

• 4" High Compression Tweeter
• RMS Power: 150 Watts(300 Watts Peak)
• Impedance: 4 Ohm ~ 109dB
• Neodymium Magnet
• Flush Style Mount
• Single

Specifications:

• Nominal Diameter: 4" (100 mm)
• Nominal Impedance: 4 Ohms
• RMS Power Handing: 150 Watts
• Maximum Power Handing: 300 Watts
• Sensitivity (1w/1m): 109 dB
• Frequency Response: 2K-20KHz
• Recommended Hi Pass Crossover: 3KHz
• Voice Coil Diameter: 1.25" / (32mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAR

Measurements:

• Overall Diameter: 3.93" (100 mm)
• Front Mount Baffle Cutout: 3.22" (82 mm)
• Mounting Depth: 1.77" (45 mm)
• Overall Depth: 1.96" (50 mm)
• Product Weight: 1.28 lbs
• Product Dimensions: 4.25" x 4.25" x 3"
