Descriptions

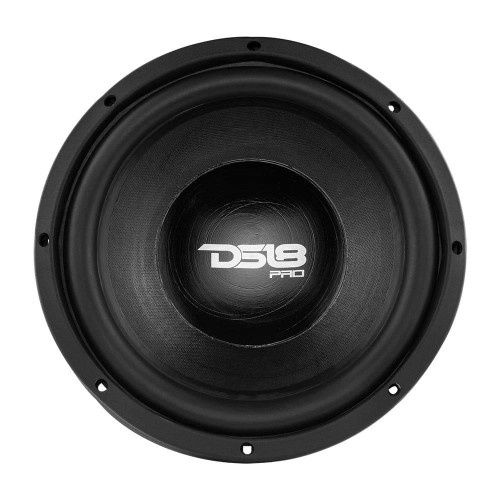

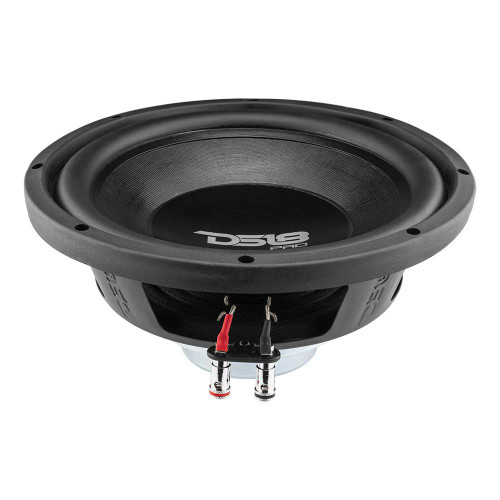

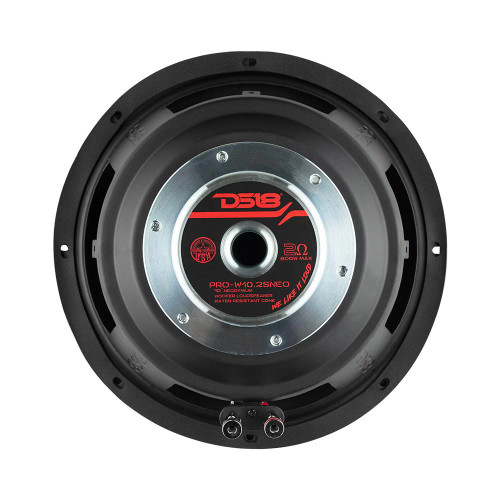

About: DS18 PRO-W10.2SNEO PRO 10" 400W RMS Neodymium Water Resistant Woofer - 2 Ohm

Experience the power of superior sound on your motorcycle with DS18’s PRO-W10.2SNEO DS18’s PRO-W10.2SNEO is a full-size water-resistant woofer that withstands the harshest elements without compromising on build quality. Unlike traditional speakers, this hybrid marvel features a unique design that incorporates a water-resistant cone, ensuring zero corrosion or deformation caused by water exposure. We've gone the extra mile to guarantee longevity and unrivaled performance. The magnet and basket have been expertly coated to resist corrosion, ensuring that your woofer remains in pristine condition even in challenging environments. Crafted from lightweight, water-resistant paper, the cone is supported by a robust rubber surround, preventing water from penetrating the inner workings of the woofer.

The DS18 PRO-W10.2SNEO boasts an impressive power handling capacity of 400 watts RMS and a peak power of 800 watts, ensuring that every beat is delivered with precision and impact. Equipped with a 2.5" voice coil, this woofer is designed to withstand the demands of high-performance audio systems. The voice coil's former material and winding material ensure reliable operation and optimal performance. In addition to its remarkable water resistance and impressive power handling, the DS18 PRO-W10.2SNEO also features a neodymium motor structure, taking its performance to a whole new level. The neodymium motor structure gives the PRO-W10.2SNEO enhanced efficiency and responsiveness, resulting in tighter, more controlled audio reproduction. With a sensitivity of 89dB and a frequency response ranging from 40Hz to 4.5KHz, every note and every beat is delivered with clarity and depth.

Amplify your experience with our single voice coil 2-ohm and 4-ohm versions, allowing you to optimize your ohm load according to your amplifier's specifications. Experience the ultimate combination of power, durability, and unrivaled performance with DS18’s PRO-W10.2SNEO. Its superior design and exceptional features make it a must-have for motorcycle riders and powersports enthusiasts seeking an audio solution that can withstand the rigors of the road.

Product Highlights:

• 10" Woofer
• MAX Power: 800 Watts
• RMS Power: 400 Watts
• Impedance: 2-Ohm 2.5" SVC
• Neodymium Magnet ~ 91dB
• Water Resistant

Specifications:

• Nominal Diameter: 10’’ (254 mm)
• Nominal Impedance: 2 Ohm
• RMS Power Handling: 400W
• MAX Power Handling: 800W
• Sensitivity (1w/1m): 91 dB
• Frequency Response: 40Hz-5KHz
• Recommended Lo Pass Crossover: 180hz

Motor:

• Voice Coil Diameter: 2.5’’ (65.5 mm)
• Voice Coil Former Material: Til
• Winding Material: SV
• Cone Material: Water resistant paper
• Dust Cap Material: Water resistant paper
• Surround Material:Rubber
• Basket Material: Steel
• Basket Color/Finish: Matte Black
• Magnet Material: Ferrite
• Magnet Weight: 8.8 oz
• Displacement Volume: 1.8L / 0.0635ft3

Thiele & Small Parameters:

• Equivalent Volume (Vas): 22.5L / 0.79ft3
• Resonance Frequency (Fs): 40 Hz
• Mechanical Factor (Qms): 5.846
• Electrical Factor (Qes): 0.452
• Total Factor (Qts):0.397
• Mechanical Mass (Mms): 91.85g
• Mechanical Compliance (Cms): 0.16mm/N
• Bl Factor (Bl): 12.95
• Voice Coil Inductance (Le): 0.4578mH
• Cone Area (Sd): 352.99 cm2
• Dc Resistance (Re): 2.0 ohms
• Efficiency Bandwidth Product (EBP): 88.4

Recommended Enclosures:

• Sealed Internal Volume: 1.4ft3
• Sealed Box Output Response F3: 53Hz
• Ported Internal Volume: 1.5ft3
• Port Size *Square (W x H x Long): 3" x 3" x 5.6" (76 x 76 x 142 mm)
• Port Tunning Frequency FB: 45Hz
• Ported Box Output Response F3: 38Hz

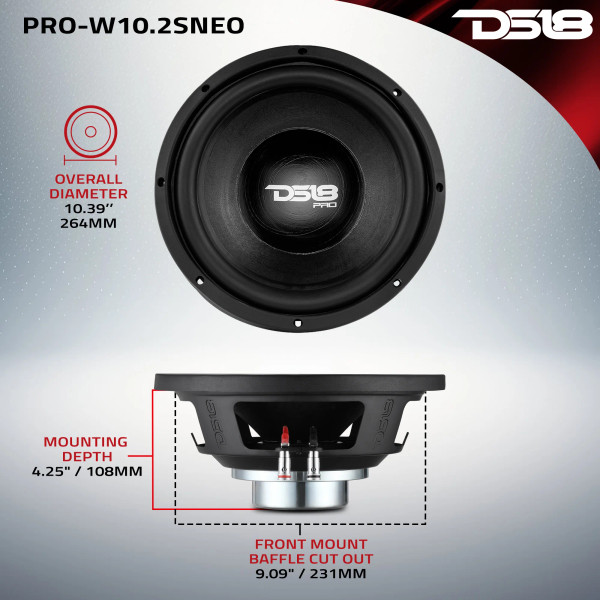

Measurements:

• Dimensions L x W x H (Inches): 10.87 x 10.87 x 5.5
• Overall Depth: 4.8" (122 mm)
• Front Mount Baffle Cutout: 9.1" (231 mm)
• Mounting Depth: 4.25" (108 mm)
• Motor Diameter: 3.42" (87 mm)
• Weight: 7 lb
• Sold in: Single
