Descriptions

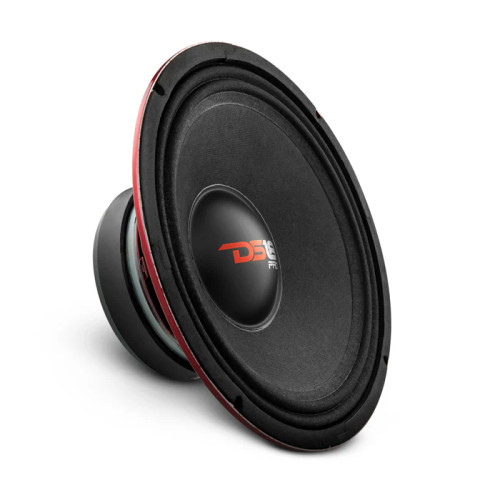

About: DS18 PRO-X10.4M PRO-X 10” 300W RMS Mid-Range Loudspeaker - 4 Ohm (Each)

Step into the world of powerful, high-quality sound with DS18’s PRO-X10.4M 10” Mid-Range Loudspeaker! The PRO-X10.4M delivers a concert-like audio experience without any distortion, making it an excellent choice for audiophiles and music enthusiasts alike. With a high 100.2dB sensitivity, the PRO-X10.4M lets you crank up the volume without any sound distortion. The 76Hz to 6.8KHz frequency range provides richer and more accurate tones that any audiophile will immediately notice, making these loudspeakers an excellent choice for those who want to experience music the way it was meant to be heard.

The DS18 PRO-X10.4M can handle up to 300 W RMS, making it capable of handling consistent and heavy usage. The 40 Oz ferrite magnet and 2” voice coil make for a powerful combination, ensuring that every beat is heard and handled efficiently. Whether you’re listening to your favorite album or enjoying a live concert, the DS18 PRO-X10.4M will take your audio experience to the next level. Its compact size and 4.06” mounting depth make it easy to install in your car, truck, or home, while its powerful performance ensures that you’ll enjoy high-quality sound for years to come.

DS18’s PRO-X10.4M is a high-quality midrange loudspeaker that delivers crystal-clear audio and powerful performance. Its high sensitivity, wide frequency range, and impressive power handling make it an excellent choice for audiophiles and music enthusiasts who want to enjoy loud, clear music without any distortion. Order your DS18 PRO-X10.4M today and experience the thrill of powerful, high-quality sound!

Product Highlights:

• 10" Mid-Range
• MAX Power: 600 Watts
• RMS Power: 300 Watts
• Impedance: 4-Ohm
• Ferrite Magnet
• 96dB

Specifications:

• Nominal Diameter: 10” (254 mm)
• Nominal Impedance: 4 Ohms
• RMS Power Handing: 300 Watts
• Maximum Power Handing: 600 Watts
• Sensitivity (1w/1m): 96 dB
• Frequency Response: 70Hz - 5KHz
• Recommended Hi Pass Crossover: 100Hz
• Voice Coil Diameter: 2" (50.8 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Basket Material: Steel
• Magnet Weight: Ferrite 40 oz
• Sold Individually

Thiele & Small Parameters:

• Equivalent Volume (Vas): 23.34L / 0.824ft3
• Excursion (one way) (Xmax): 9.8mm
• Free Air Resonance (Fs): 81Hz
• Mechanical Factor (Qms): 5.776
• Electrical Factor (Qes): 0.887
• Total Factor (Qts): 0.769
• DC Resistance (Re): 3.3 ohm

Measurements:

• Overall Diameter: 10" (256 mm)
• Front Mount Baffle Cutout: 9" (230 mm)
• Mounting Depth: 3.77" (96 mm)
• Overall Depth: 4" (103 mm)
• Product Weight: 8.5lb
• Product Dimensions: 10.75" x 10.75" x 4.5"
