About: DS18 PRO-X5.4M 5.25" Mid-Range Loudspeaker 150 Watts RMS - 4 Ohm (Each)

Step into the world of powerful, high-quality sound with DS18’s PRO-X5.4M 5.25” Mid-Range Loudspeaker! The PRO-X5.4M delivers a concert-like audio experience without any distortion, making it an excellent choice for audiophiles and music enthusiasts alike. With a high 93dB sensitivity, the PRO-X5.4M lets you crank up the volume without any sound distortion. The 200Hz to 16KHz frequency range provides richer and more accurate tones that any audiophile will immediately notice, making these loudspeakers an excellent choice for those who want to experience music the way it was meant to be heard.The DS18 PRO-X5.4M can handle up to 150 Watts RMS, making it capable of handling consistent and heavy usage. The 18.5 Oz ferrite magnet and 1.2” Kapton voice coil make for a powerful combination, ensuring that every beat is heard and handled efficiently.

Whether you’re listening to your favorite album or enjoying a live concert, the DS18 PRO-X5.4M will take your audio experience to the next level. Its compact size and 2.67” mounting depth make it easy to install in your car, truck, or home, while its powerful performance ensures that you’ll enjoy high-quality sound for years to come. DS18’s PRO-X5.4M is a high-quality midrange loudspeaker that delivers crystal-clear audio and powerful performance. Its high sensitivity, wide frequency range, and impressive power handling make it an excellent choice for audiophiles and music enthusiasts who want to enjoy loud, clear music without any distortion. Order your DS18 PRO-X5.4M today and experience the thrill of powerful, high-quality sound!

Products Highlights:

• 5.25" Mid-Range
• MAX Power: 300 Watts
• RMS Power: 150 Watts
• Impedance: 4-Ohm
• Ferrite Magnet

Specifications:

• Nominal Diameter: 5.25" (133.3 mm)
• Nominal Impedance: 4 ohms
• RMS Power Handing: 150 Watts
• Maximum Power Handing: 300 Watts
• Sensitivity (1w/1m): 93 db
• Frequency Response: 200Hz-16KHz
• Recommended Hi Pass Crossover: 250 Hz
• Voice Coil Diameter: 1.2" (30.5 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Basket Material: Steel
• Magnet Weight: 18.5 oz
• Sold Individually

Thiele & Small Parameters:

• Equivalent Volume (Vas): 0.827 LTR
• Excursion (one way) Xmax: 6.7 mm
• Free Air Resonance (Fs): 240 Hz
• Mechanical Factor (Qms): 6.382
• Electrical Factor (Qes): 1.625
• Total Factor (Qts): 1.326
• DC Resistance (Re): 3.2 ohm

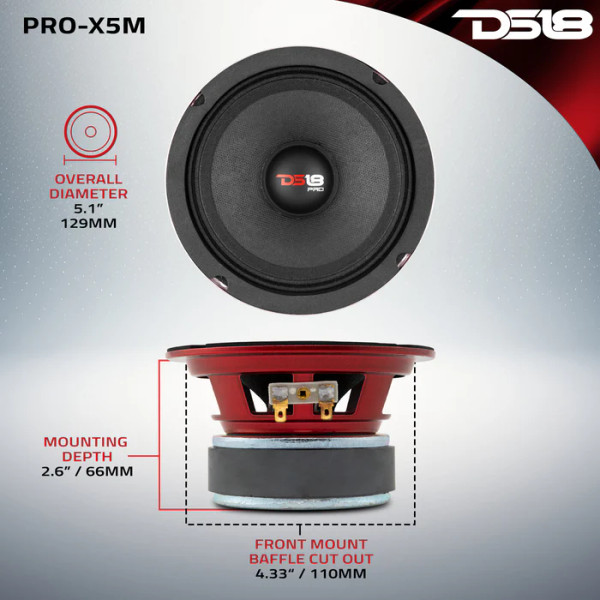

Measurements:

• Overall Diameter: 5.08" (129 mm)
• Front Mount Baffle Cutout: 4.33" (110 mm)
• Mounting Depth: 2.67" (68 mm)
• Overall Depth: 2.83" (72 mm)
• Product Weight: 3 lbs
• Product Dimensions: 5.5" x 5.5" x 3.25"
