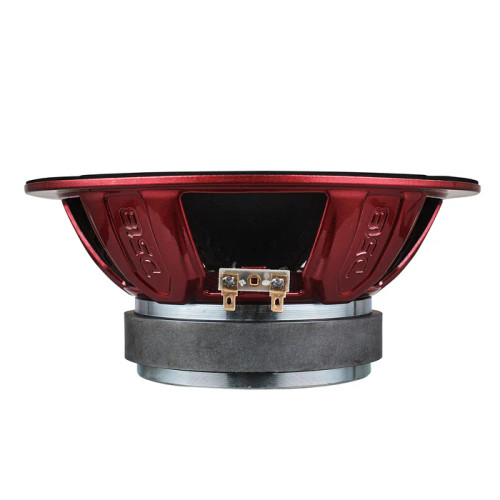

About: DS18 PRO-X8.4BMPK 8" Midrange Speaker Package with Super Tweeters

Imagine feeling every beat of your favorite song in stunning clarity, with the sound resonating through your body like never before. This experience is possible with the DS18 PRO-X8.4BMPK Loudspeakers and Tweeters Package. From the crystal-clear midrange to the soaring highs, every note is brought to life with breathtaking accuracy and intensity, making this package a must-have for anyone who demands the very best in pro audio. With a maximum power output of 550W, the PRO-X8.4BM midrange loudspeakers are built to deliver high-powered sound. The cloth edge surround, non-pressed paper cone, and red steel basket frame provide unmatched durability and incredible style. The frequency response of 93Hz-16KHz and sensitivity of 96dB help these speakers produce crisp, clear audio that will leave you in awe.

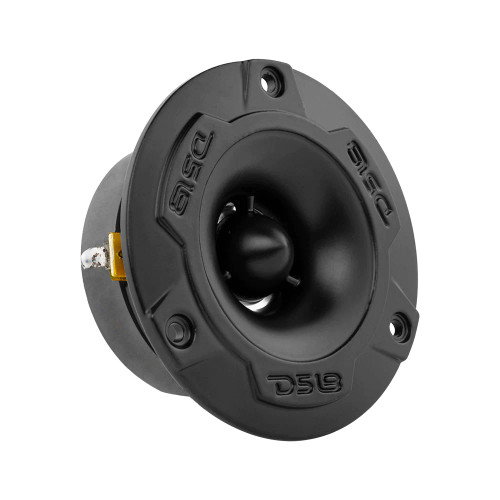

Pairing these powerful midrange loudspeakers with the PRO-TWX1/BK super bullet tweeters creates an audio experience that is truly unmatched. These tweeters are designed with a built-in crossover and can handle up to 240 watts of peak power. These tweeters deliver crystal-clear high-frequency sounds thanks to their incredible frequency response of 3.5KHz – 20KHz. Turn your volume all the way up to be transported to the front row of your favorite concert. DS18’s PRO-X8.4BMPK Loudspeakers and Tweeters Package are the perfect combination of power, clarity, and durability. Take your audio experience to the next level and experience music like never before, then look no further than this package.

Product Highlights:

• 8" Mid-Range X 2
• 3.78" Super Bullet Tweeter X 2
• MAX Power: 550 Watts(W) | 240 Watts(T)
• RMS Power: 275 Watts(W) |  120 Watts(T)
• Impedance: 4-Ohm
• Ferrite Magnet

Specifications:

• Nominal Diameter: 8" (203.2 mm)
• Nominal Impedance: 4 ohms
• RMS Power Handing: 275 Watts
• Maximum Power Handing: 550 Watts
• Sensitivity (1w/1m): 96 dB
• Frequency Response: 93Hz-16KHz
• Recommended Hi Pass Crossover: 100 Hz
• Voice Coil Diameter: 1.5" (38.6 mm)
• Voice Coil Former Material: Kapton
• Winding Material: CCAW
• Basket Material: Steel
• Magnet Weight: 30 oz

Thiele & Small Parameters:

• Equivalent Volume (Vas): 26.60 LTR
• Excursion (one way) Xmax: 9.3 mm
• Free Air Resonance (Fs): 93 Hz
• Mechanical Factor (Qms): 9.275
• Electrical Factor (Qes): 0.589
• Total Factor (Qts): 0.552
• DC Resistance (Re): 3.2 ohms

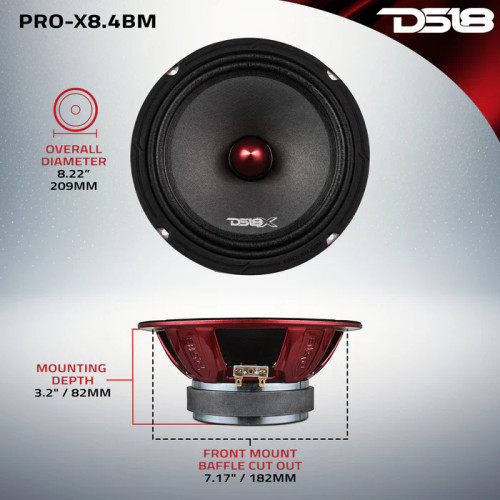

Measurements:

• Overall Diameter: 8.23" (209 mm)
• Front Mount Baffle Cutout: 7.17" (182 mm)
• Mounting Depth: 3.11" (79 mm)
• Overall Depth: 3.38" (86 mm)
• Product Dimensions: 21" x 12.5" x 12.5"

What's in the Box:

• 2 x 8" Midrange Loudspeaker (PRO-X8.4BM)
• 2 x Super Bullet Tweeter 1" Built In Crossover (PRO-TWX1/BK)
