About: DS18 PRO-ZXI10MBASS 10" Mid-Bass Loudspeaker With Neodymium/Ferrite Magnets 500W RMS - 8 Ohm (Each)

DS18's PRO-ZXI10MBASS is the ultimate choice for car audio enthusiasts who demand the best in sound quality and performance. This speaker is designed specifically for the car audio enthusiast who wants unparalleled volumes with amazing sound quality, all while efficiently absorbing power to play at extreme volumes for extended periods of time.

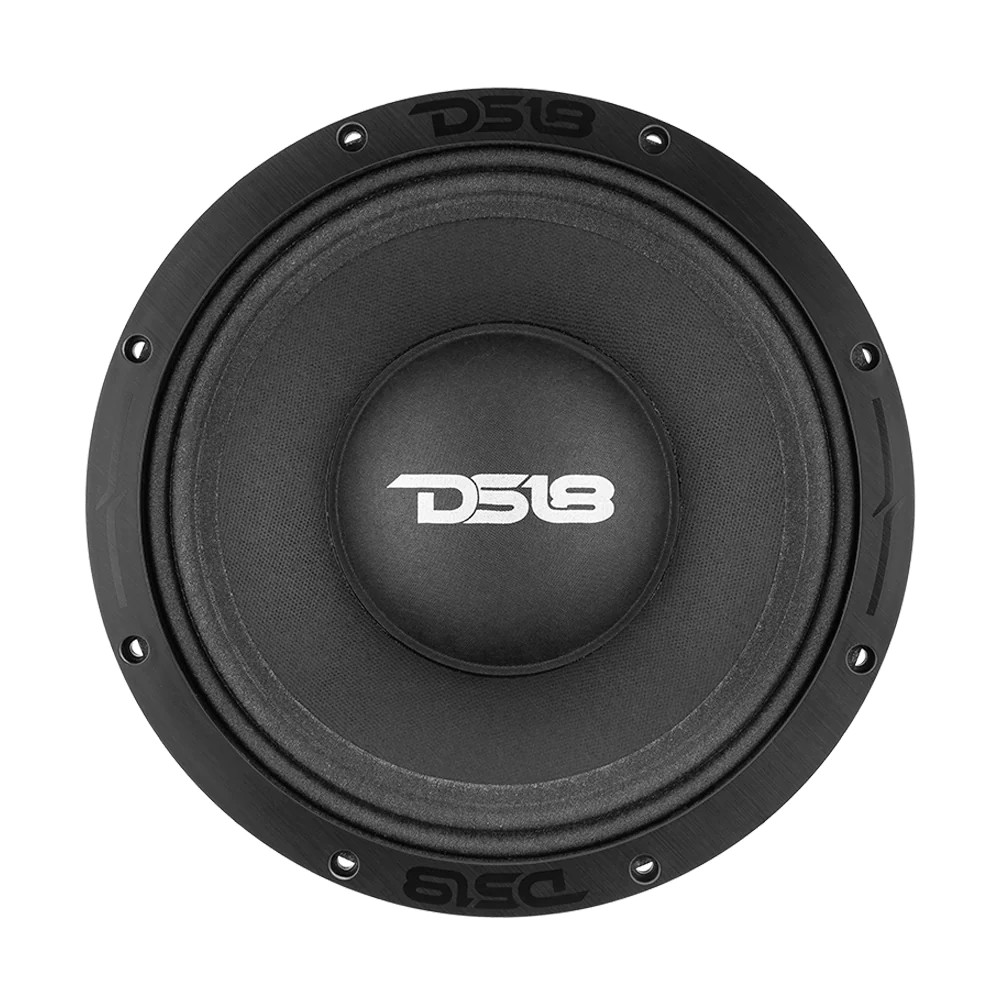

The PRO-ZXI10MBASS features a beautiful black basket face with a solid black cone that not only looks great but also delivers exceptional performance. This mid-bass speaker has a maximum power handling of 1000 watts and an RMS power handling of 500 watts, making it a powerhouse compared to other speakers in it's class. At the heart of the PRO-ZXI10MBASS is a 2.5" USA glass fiber voice coil that can withstand the most demanding conditions while delivering exceptional performance.

The frequency response of the DS18 PRO-ZXI10MBASS, which ranges from 50Hz to 5.5KHz, is one of the key features that make it an exceptional mid-bass speaker. This range hits the sweet spot for mid-bass speakers, as it allows for a full and punchy bass response while still maintaining clear and accurate sound quality. This mid-bass speaker has a recommended high pass of 78Hz, which makes it perfect for use in a wide range of car audio setups.

The PRO-ZXI10MBASS has a mounting depth of 4.1", which ensures it can fit in most standard car audio installations. This speaker is an excellent choice for those who want to upgrade their car audio system with a powerful mid-bass speaker that looks as good as it sounds. With its sleek black design, powerful construction, and exceptional performance capabilities, the PRO-ZXI10MBASS is a must-have for any car audio setup.

Product Highlights:

• 10" Mid-Bass
• MAX Power: 1000 Watts
• RMS Power: 500 Watts
• Impedance: 8-Ohm
• Ferrite Magnet
• Aluminum Basket

Specifications:

• Nominal Diameter: 10" (254 mm)
• Nominal Impedance: 8 Ohms
• RMS Power Handing: 500 Watts
• Maximum Power Handing: 1000 Watts
• Sensitivity (1w/1m): 98dB
• Frequency Response: 50Hz - 5.5KHz
• Recommended Hi Pass Crossover: 78 Hz
•  Voice Coil Diameter: 2.5" / 63.5mm
• Voice Coil Former Material: Glass Fiber Made in USA
• Winding Material: SV Made in Japan
• Basket Material: Aluminum
• Magnet Weight: 68 Oz
• Sold Individually

Thiele & Small Parameters:

• Equivalent Volume (Vas): 25.1L / 0.88ft3
• Excursion (Xmax): 11 mm
• Free Air Resonance (Fs): 78Hz
• Mechanical Factor (Qms): 8.21
• Electrical Factor (Qes): 0.46
• Total Factor (Qts): 0.435
• Dc Resistance (Re): 5.2 ohms

Measurements:

• Overall Diameter: 10.3" (261.5 mm)
• Front Mount Baffle Cutout: 9.17" (233 mm)
• Mounting Depth: 4.1" (104.5 mm)
• Overall Depth: 4.54" (115.5 mm)
• Product Weight: 12.5 lbs
• Product Dimensions: 11.25" x 11.25" x 5.5"
