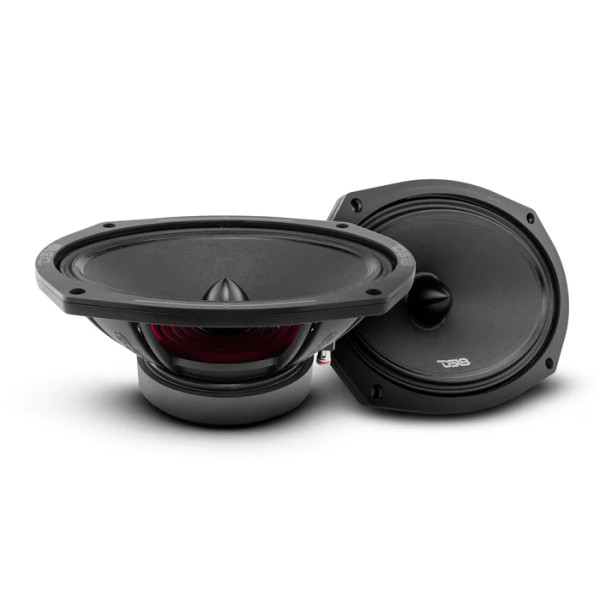

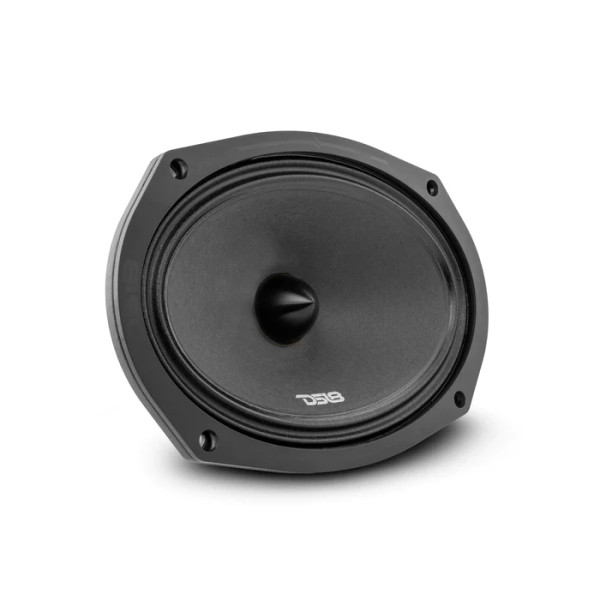

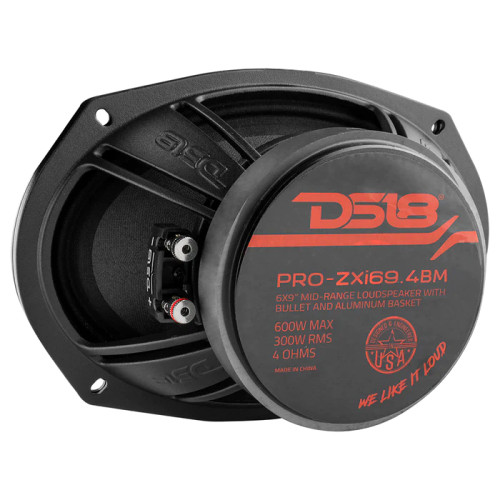

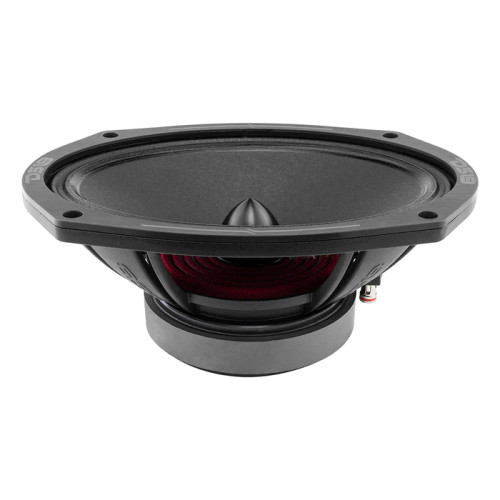

About: DS18 PRO-ZXI694BM 6x9" 300W RMS Mid-Range Loudspeaker with Bullet and Grill - 4 Ohm (Each)

Introducing the DS18 PRO-ZXI694BM - the ultimate audio solution for the music lover who demands nothing but the best! With its sleek black basket face and bullet dust cap, this speaker not only looks great but also sounds phenomenal, delivering clear, crisp, and powerful mid and high range frequencies with ease. Designed with the audio enthusiast in mind, the ZXI series takes Pro Audio to new heights of elegance, clarity, and loudness. The PRO-ZXI694BM is perfect for anyone who wants unparalleled volume and sound quality without sacrificing efficiency or performance.

The bullet design of the DS18 PRO-ZXI694BM helps enhance its frequency response, which ranges between 80Hz and 12.5KHz, and improves its ability to handle mid-range frequencies. The bullet shape of the dust cap allows for smoother and more efficient sound dispersion, which helps to minimize distortion and improve clarity, even at higher volumes. With a sensitivity rating of 98dB, this speaker is highly efficient and requires less power to achieve the same volume as less sensitive speakers. This translates to a cleaner and clearer sound with less distortion, even at high volumes.

The PRO-ZXI694BM's magnet weighs in at a light 30 Oz + 3 Oz, constructed from high-quality ferrite, ensuring that it can handle the power thrown at it efficiently. Its 3.38" mounting depth makes installation a breeze, allowing you to easily upgrade your car's audio system without breaking a sweat. The PRO-ZXI694BM is the perfect addition to any audio system, offering a premium listening experience that is unmatched by other speakers on the market.

Product Highlights:

• 6X9" Mid-Range
• MAX Power: 600 Watts
• RMS Power: 300 Watts
• Impedance: 4-Ohm
• Ferrite & Neodymium Magnet
• With Bullet

Specifications:

• Nominal Diameter: 6x9" (152.4 x 228.6 mm)
• Nominal Impedance: 4 OHMS
• RMS Power Handing: 300 Watts
• Maximum Power Handing: 600 Watts
• Sensitivity (1w/1m): 98dB
• Frequency Response: 80Hz - 12.5KHz
• Recommended Hi Pass Crossover: 100 Hz
• Voice Coil Diameter: 1.5" / 38.6mm
• Voice Coil Former Material: Glass Fiber
• Winding Material: CCAW
• Basket Material: Aluminum
• Magnet Weight: 30 + 3 Oz
• Sold Individually

Thiele & Small Parameters:

• Equivalent Volume (Vas): 14.9L / 0.5271f
• Excursion (one way) Xmax: 7.2mm
• Free Air Resonance (Fs): 100Hz
• Mechanical Factor (Qms): 10.64
• Electrical Factor (Qes): 0.439
• Total Factor (Qts): 0.421
• DC Resistance (Re): 3.6 ohm

Measurements:

• Overall Diameter: 9.43 x 6.57" (640 x 167 mm)
• Front Mount Baffle Cutout: 8.74x6" (222 x 153 mm)
• Mounting Depth: 3.38" (86mm)
• Overall Depth: 3.7" (94 mm)
• Product Weight: 6 lbs
• Product Dimensions: 10.25" x 7.25" x 4.25"
