About: DS18 PU210A Dual 10" 350W RMS Active Shallow-Mount Subwoofer Enclosure  for Pickup Trucks

Unleash high-performance bass in your pickup with DS18’s PU210A subwoofer. This 10-inch active and passive subwoofer work in harmony to deliver punchy bass in tight spaces. Specifically designed for compact settings, its shallow enclosure seamlessly fits into tight spaces, ensuring your vehicle's cabin remains uncluttered while elevating your sound system to new heights.

DS18’s PU210A handles an impressive 350W RMS and peaks at 700W, providing powerful car audio that resonates with deep and impactful bass. Its frequency response ranges from 30–250Hz, capturing every nuance of your music with remarkable clarity. The sensitivity of 87dB ensures efficient sound reproduction, making it a top choice for truck audio upgrades.

Equipped with advanced controls such as a remote controller for gain adjustment, phase selector, and adjustable low-pass filter (LPF), this compact subwoofer for trucks allows you to tailor your listening experience to perfection. The bass boost feature further enhances the depth of sound, offering up to a 6dB increase.

Crafted with durability in mind, the PU210A features a robust sealed subwoofer box made from 5/8" MDF with a sleek black carpet finish. It houses a digital monoblock amplifier that includes thermal, overload, short circuit, and DC output protections, ensuring longevity and reliability. Upgrade to high-performance bass with the expertly crafted PU210A!

Product Highlights:

• Active Subwoofer Enclosure
• 2 X 10" Shallow Mount
• RMS Power: 350 Watts(700 Watts Peak)
• Impedance: 2 Ohm
• Class D ~ Bass Knob
• 5/8" MDF with Black Carpet

Features:

• Speaker Type / Size: 10" Active + 10" Passive (261+261mm)
• RMS Power Handling (14.4V): 350W
• MAX Power Handling (14.4V): 700W
• Sensitivity (1w/1m): 87dB
• Frequency Response: 30-250Hz

Speaker Specifications:

• Voice Coil Diameter: 1.5" (38.6 mm)
• Voice Coil Former Material: Aluminum
• Winding Material: EISV
• Cone Material: IPP
• Surround Material: Rubber
• Basket Material: Steel
• Magnet Material: Ferrite
• Magnet Weight: 40 Oz

Amplifier Specifications:

• Amplifier Class: Digital
• Amplifier Type: Monoblock Subwoofer
• Number of Channels: 1CH
• Minimum Impedance: 2-ohms
• Signal to Noise Ratio: 75 dB
• Efficiency @ 4ohm: 75%
• Total Harmonic Distortion (THD): 0.30%
• Low Level Input Range: 0.1-0.6V
• High Level Input: Yes (Auto Turn-On)
• Selectable X-Over: LPF Fixed
• X-Over Filter Range: 50-200Hz
• Bass Boost Range: 0-6 dB
• Bass Boost Frequency: 50Hz
• Phase Selector: 0-180?
• LED Indicator: Power / Protection
• Power Input Terminal Size: 8Ga (Quick Connector)
• Fuse Size: 30A
• Remote Level Control: Yes
• Thermal Protection: Yes (75? / 167?F)
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes (<9v,>16v)
• Signal Output (Pass-Through RCA): Yes

Box Specifications:

• Internal Volume: 16L / 0.56ft3
• Load Configuration: Single 2-Ohms
• Box Type: Sealed Box
• Box Material: 5/8" / 15mm MDF
• Finish Material: Black Carpet
• -3dB Dropping Point: 45Hz

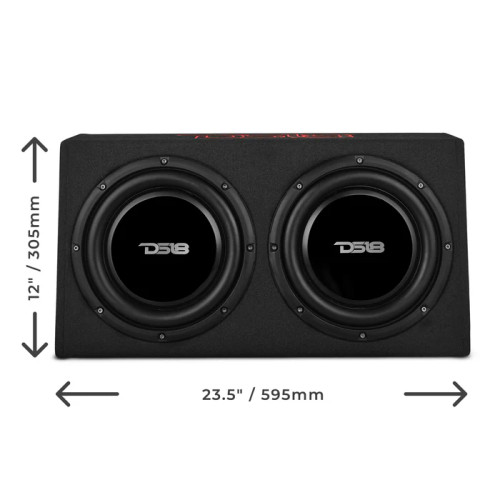

Measurements:

• Height: 12" (305 mm)
• Width: 23.5" (595 mm)
• Depth 1 (Top): 4.25" (108 mm)
• Depth 2 (Bottom): 7" (176 mm)
