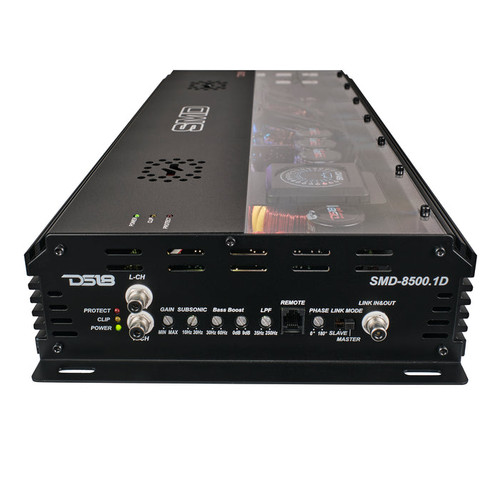

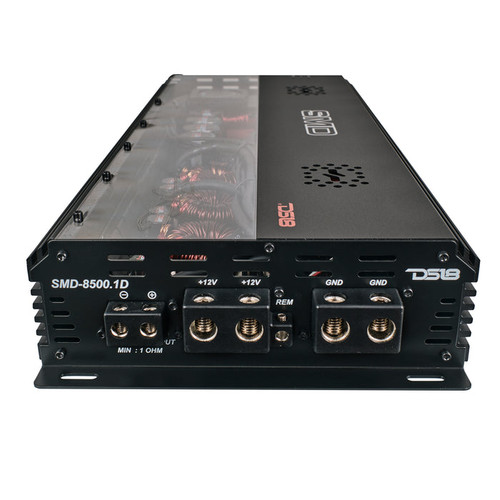

About: DS18 SMD-8500.1D 8500W RMS Monoblock Amplifier with Voltmeter and Digital LED Lights

Introducing the SMD-8500.1D— engineered by DS18 in collaboration with Steve Meade Designs. Built for superior audio performance, it features premium Korean components and Sky High Car Audio’s OFC Internal Wiring. With DS18’s reputation as the LOUDEST in pro audio and Steve Meade’s industry-standard installation peripherals, this amp is built for extreme power and convenience.

With the SMD-8500.1D, we achieved that and more. What sets the SMD-8500.1D apart is its unique clear half-top design ensuring efficient heat dissipation through a reverse-mounted board and dual cooling fans. It also features an exclusive built-in SMD VM-1 digital/analog-style LED voltmeter that monitors power draw in real-time. Customizable RGB lighting adds another layer of personalization, allowing you to match your vehicle’s interior or create dynamic light displays.

Manufactured using premium components from Korea, this amplifier guarantees the reliability and powerful bass amplification that DS18 is known for. The SMD-8500.1D is not only visually striking but also engineered for top-tier performance. It delivers an impressive 3300W RMS at 4-ohm, 5700W RMS at 2-ohm, and 8500W RMS at 1-ohm, driving even the most demanding subwoofer setups with ease.

Product Highlights:

• 1 Channel Subwoofer Monoblock
• Exclusive SMD Design ~ Class D
• 1 - 4 Ohm Stable ~ 8500 Watts @ 1 Ohm RMS
• VM-1 Voltmeter ~ Fans ~ Linkable
• Acrylic Window ~ Digital LED Lighting w/ Remote
• Bass Knob ~ LED Indicators ~ Made in Korea

Features:

• Amplifier Class: Digital
• Amplifier Type: Subwoofer
• Number of Channels: 1
• Minimum Impedance: 1 Ohm
• Led Indicator: Power / Protection / Clip
• Power Input Terminal Size: 0 AWG
• Recommended Fuse Size (Not Included): 740A
• Cooling Fan: Yes
• Thermal Protection: Yes
• Over-Load Protection: Yes
• DC Output Protection: Yes
• Short Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• Body Color / Finish: Black
• Metal Adjustment Knobs with Click Position: Yes
• Professional Tiffany RCA Connectors: Yes
• Remote Level Knob with Clip indicator: Yes (Metal Case)
• Linkable (Strap mode) Amplifier: Yes
• Reliable Heavy Duty Korean Board Design
• Very High Efficiency Digital Circuit Design
• Exclusive SMD design with VM-1 Voltmeter
• Front Acrylic Window and Digital RGB Lighting

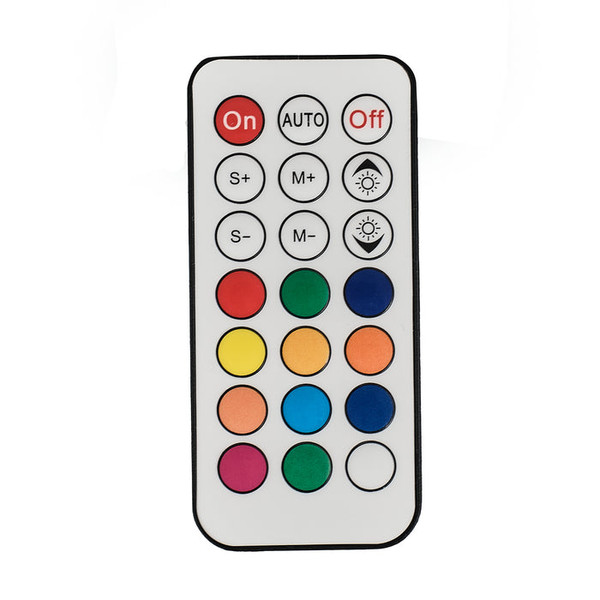

• IR Remote Control for LED patterns and colors

Specifications:

• RMS Power @ 4 ohm (14.4v): 3300W
• RMS Power @ 2 ohm (14.4v): 5700W
• RMS Power @ 1 ohm (14.4v): 8500W
• Frequency Response: 15Hz-250Hz
• Signal to Noise Ratio: >98dB
• Efficiency @ 4ohm: >86%
• Damping Factor: 300
• Input Impedance: 22K ohm
• Total Harmonic Distortion (THD): <0.02%
• Low Level Input Range: 200mV-6V
• High Level Input: NO
• Selectable X-Over: Fixed LPF
• X-Over Filter Range: 35Hz-250Hz
• Bass Boost Range: 0~9dB
• Bass Boost Frequency: 30Hz-60Hz
• Infrasonic Filter: 10Hz-30Hz
• Phase Selector: 0~180
• Operational Voltage: 8.5v-16.9v

Measurements:

• Overall Length: 23.3" (562 mm)
• Overall Width: 9.15" (232 mm)
• Overall Height: 3" (76 mm)
• Heatsink Length: 21.6" (550 mm)
