Descriptions

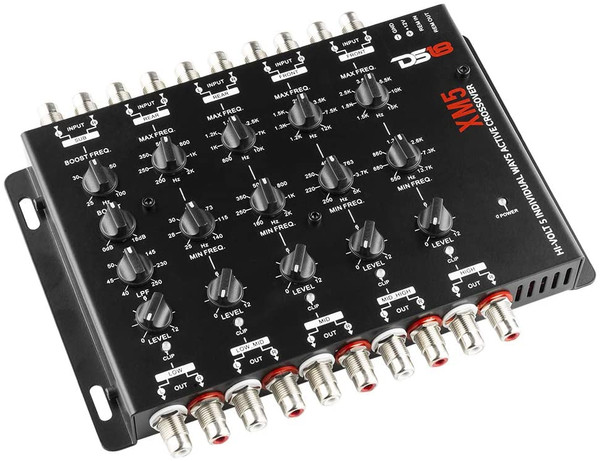

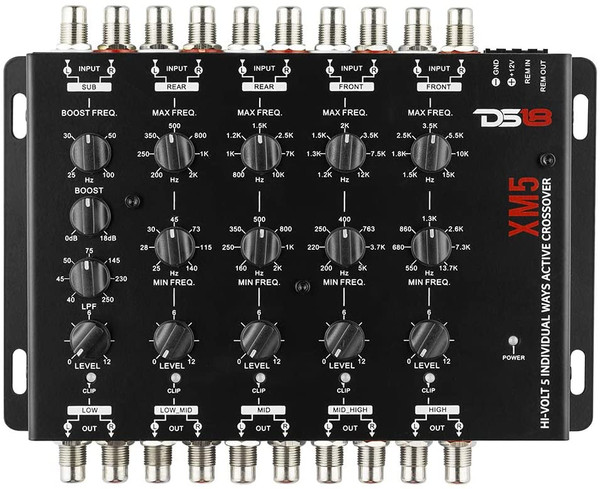

About: DS18 XM5 High Volt 5-Way Active Crossover

Introducing DS18’s XM5, the ultimate tool for car audio enthusiasts seeking to elevate their listening experience to astonishing new heights. With its 5 inputs and 5 outputs, this active crossover grants you complete control over every aspect of your audio landscape. Crafted with an unwavering commitment to excellence, the XM5 has been constructed with high quality parts to set it apart from the competition. Luxurious tiffany RCA jacks grace its impeccable frame, providing a visual feast for the eyes while ensuring uncompromising sound transmission. Compact yet mighty, the DS18 XM5 is meticulously engineered to deliver awe-inspiring performance in a compact frame. With dimensions of 196.6L x 124.5W x 34.5 (mm), it seamlessly integrates into your audio setup, leaving no room for compromise.

Those who like it LOUD understand the significance of clean, undistorted signals. That's why the XM5 features high voltage RCA outputs, allowing your finely tuned signals to effortlessly reach your amps without a hint of distortion. With the XM5 you have the power to control each of your amplifiers crossover points with next level precision. From the low rumbles to the soaring highs, every speaker can now be perfectly dialed in to match its ideal frequency range. The XM5's capabilities extend to each segment of the frequency spectrum, giving you complete control over the sound your system can achieve. Control multiple amps crossover points precisely with LOW, LOW MID, MID, MID HIGH, and HIGH pass settings so each of your speakers can be set properly within their frequency range for the best show quality sound.

Product Highlights:

• Active Crossover
• 5-Way
• 2 X Front/2 X Rear/Sub Inputs
• High/Mid High/Mid/Low Mid/Low Outputs
• Clip Indicators

Low Way (Mono):

• Cutoff Frequency (LPF): Variable 40-250 Hz (-25dB/Octave)
• Boost Frequency: Variable 25-100Hz
• Bass Boost: Variable 0-18 dB

Low Mid Way (Stereo):

• Minimum Cutoff Frequency: Variable 25-140Hz (-12dB/Octave)
• Maximum Cutoff Frequency: Variable 200-2KHz (-12dB/Octave)

Mid Way (Stereo):

• Minimum Cutoff Frequency: Variable 160-2KHz (-12dB/Octave)
• Maximum Cutoff Frequency: Variable 800-10KHz(-12dB/Octave)

Mid High Way (Stereo):

• Minimum Cutoff Frequency: Variable 200-5KHz(-12dB/Octave)
• Maximum Cutoff Frequency: Variable 1.2-12KHz(-12dB/Octave)

High Way (Stereo):

• Minimum Cutoff Frequency: Variable 550-13.7KHz(-12dB/Octave)
• Maximum Cutoff Frequency: Variable 1.5-15KHz(-12dB/Octave)

Measurement:

• Shipping Measurement (L x W x H): 9.75" x 8" x 2.5"
• Weight: 2lb
