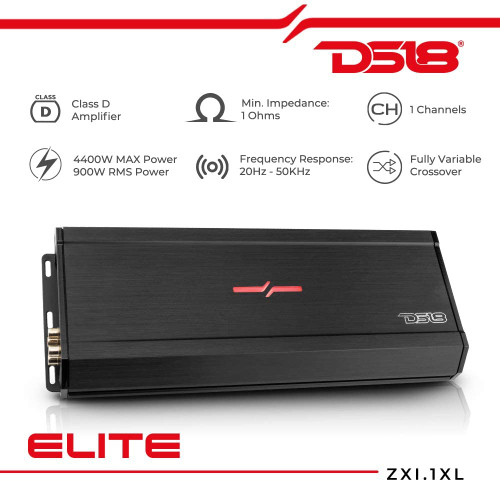

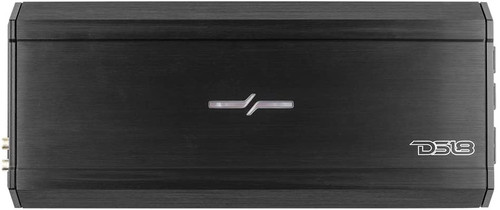

About: DS18 ZXI.1XL ELITE 1-Channel Class D Amplifier 2200 Watts RMS

Over time evolution is inevitable. The same can be said for ds18’s new z series model of amplifiers! We took one of our best selling lines and upgraded every aspect of it. They now put out even more power, have more top of the line components, and are guaranteed to deliver amazing quantities of rms power on demand. The previous z series was very powerful to begin with and for 2020 we packed all new ds18 branded boards with much more efficient electronics, and with all new heat sync casings to make an amazing amp line even more perfect for your needs. You have your pick of multiple 2 channel, 4 channel, and monoblock amps in this line to power every aspect of your ds18 audio system

Features:

• Led lighting on the front of the amp for a soothing aesthetic look
• Bass knob to control your bass from song to song with precise accuracy.
• Monoblock designed to give big power in a small package.
• RMS rating of 2200w@1ohm, 1500w@2ohms, and 900w@4 ohms

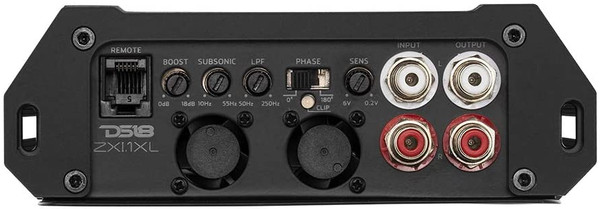

• Bass boost, Frequency adjust, and phase controls are all there to help you get the precise and accurate tuning
• for distortion-free sound.

Specifications:

• IRS Monoblock Digital Circuit Design Class-D
• LED Power and Protection Indicator
• RMS Power @ 4 Ohm: 900W x 1 CH
• RMS Power @ 2 Ohm: 1500W x 1 CH
• RMS Power @ 1 Ohm: 2200W x 1 CH
• Peak Power @ 4 Ohm: 1400W x 1 CH
• Peak Power @ 2 Ohm: 2200W x 1 CH
• Peak Power @ 1 Ohm: 3000W x 1 CH
• Minimum Impedance: 1 Ohm
• Frequency Response: 20-500Hz
• THD: 0.10%
• Input Sensitivity: 0.2-6V
• Signal/Noise Ratio: More than 90 dB
• Subsonic Frequency: 10-55 Hz
• Crossover Low Pass: 50-250 Hz
• Phase: 0-18 Degrees
• Bass Boost: 0-18 dB
• Operation Voltage: 8.5-16.8V

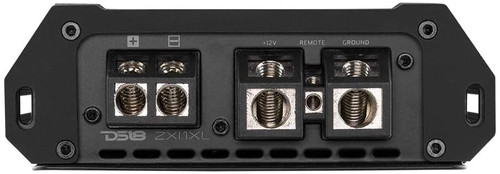

• Power Input Size: 0GA
• Remote Knob: Yes
• Dimensions (L x D x H): 13.8″ x 5.7″ x 1.9″

What's in the Box:

• 1 x Amplifier

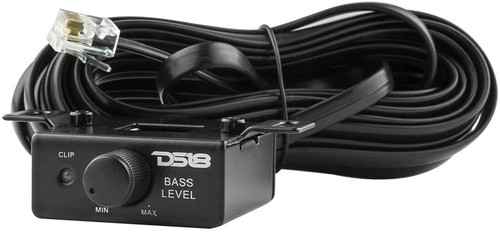

• 1 x Bass Knob w/ Clip indicator
