Descriptions

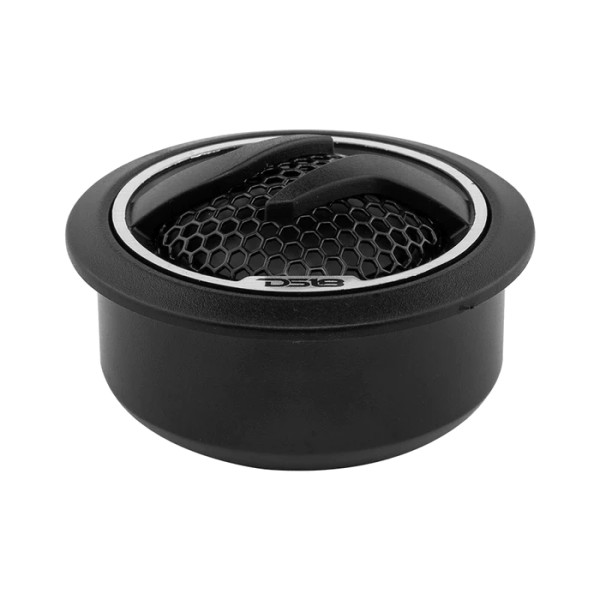

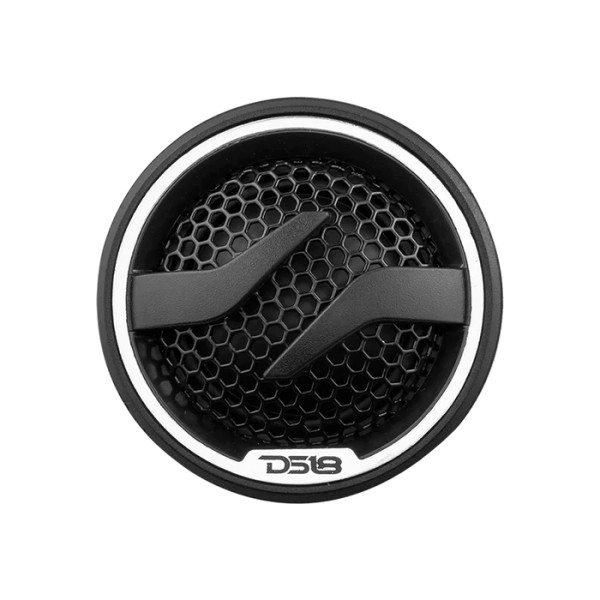

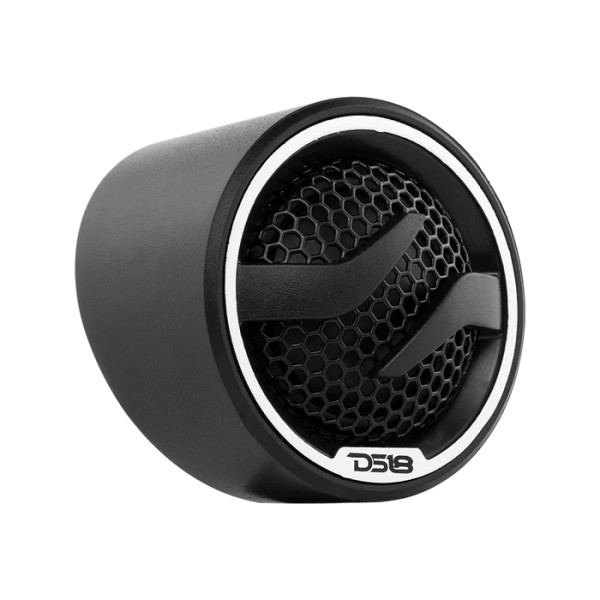

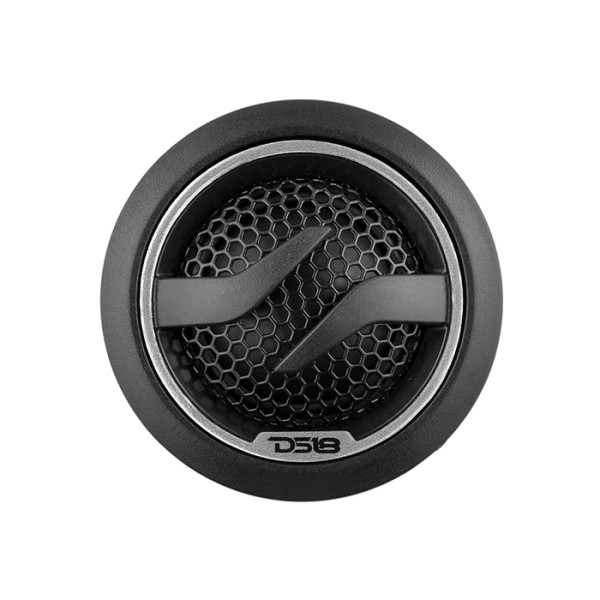

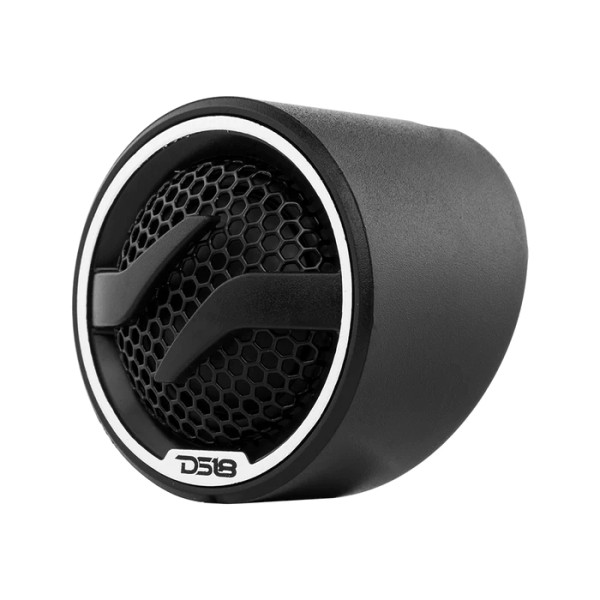

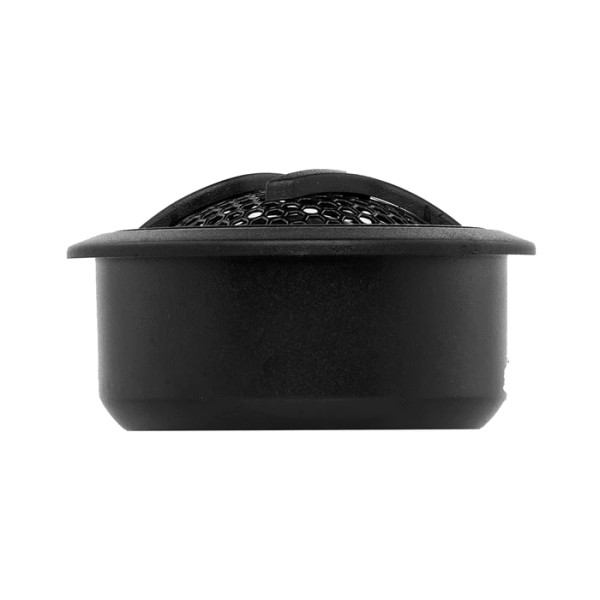

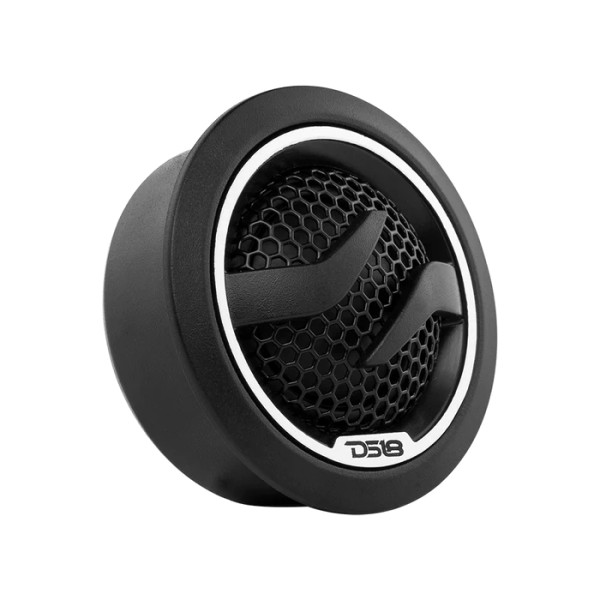

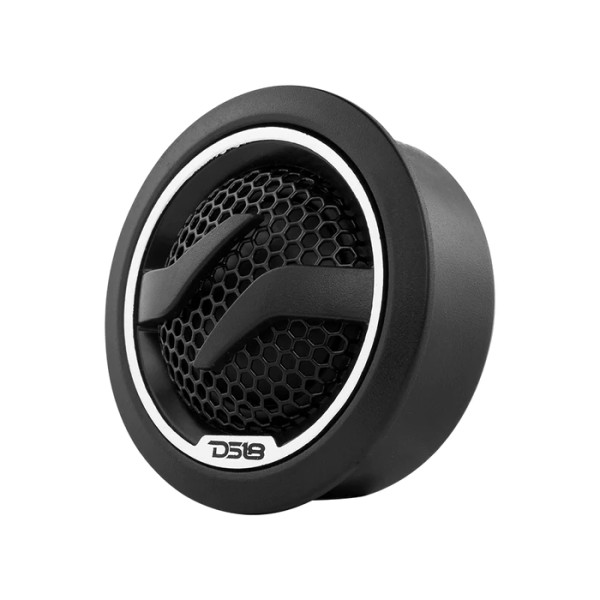

About: DS18 ZXI-T1 1.7" PEI Dome Tweeter With 1" Aluminum Voice Coil

Designed for true enthusiasts like you, DS18’s ZXI-T1 will elevate your listening experience to new heights. Crafted with precision and passion, DS18’s ZXI-T1 features a 1" voice coil made from premium aluminum. This ingenious design not only enhances extreme volume but also delivers breathtakingly crisp highs that beautifully complement your mid and low-range PRO Audio Speakers. The ZXI-T1’s ability to produce high-range volumes that can be heard for great distances is inspiring. No matter where your adventures take you, the ZXI-T1 effortlessly fills out your frequency range, creating an immersive soundstage that transports you to a realm of audio excellence.

DS18’s ZXI-T1 handles power like a true champion. With an AES Power Handling of 25W and a Peak Power Rating of 100W at 4-ohm, the ZXI-T1 delivers powerful audio without requiring large aftermarket amps. Prepare to be amazed as your favorite tracks surge with energy and presence, creating an immersive experience that will make your heart race. DS18’s ZXI-T1 not only captivates with its performance but also with its stunning aesthetics. The sleek black ABS body exudes a sense of sophistication and modernity, perfectly complementing any car interior. Let your imagination run wild as you envision your vehicle transformed into a sanctuary of both sight and sound. Mounting and configuring DS18’s ZXI-T1 is a breeze, ensuring compatibility with both stock and aftermarket sound systems. Whether you're an experienced audio aficionado or a beginner looking to enhance your car's audio setup, the ZXI-T1 is a perfect fit.

Product Highlights:

• 1.7" Dome Tweeter
• RMS Power: 50 Watts
• Impedance: 4 Ohm
• PEI Diaphragm
• Neodymium Magnet
• Sold as a Pair

Specifications:

• Nominal Diameter: 1.7” / 43mm
• Nominal Impedance: 4 OHMS
• AES Power Handling: 25W
• Program Power Handling: 50W
• Peak Power Handling: 100W
• Sensitivity (1w/1m): 92dB
• Frequency Response: 1KHz-20KHz
• Recommended Hi Pass Crossover: 3.5KHz
• Pair: Yes
• Body Color & Material: Black ABS

Motor:

• Voice Coil Diameter: 1”/ 25.4 mm
• Voice Coil Former Material: Aluminum
• Winding Material: SV
• Diaphragm Material: PEI
• Magnet Material: Neodymium
• Magnet Weight: 13 g

Measurements With Angle Surface Mount Adapter:

• Overall Diameter: 1.89" / 48 mm
• Overall Height: 1.73" / 44 mm

With Flush Mount Adapter:

• Overall Diameter: 2.16" / 55 mm
• Overall Depth: 1.18" / 30 mm
• Front Mount Baffle Cutout: 1.89" / 48 mm
• Mounting Depth: 0.78” / 20 mm

Tweeter Without Adapter:

• Overall Diameter: 1.71" / 43.5 mm
• Overall Height: 1" / 27.5 mm
