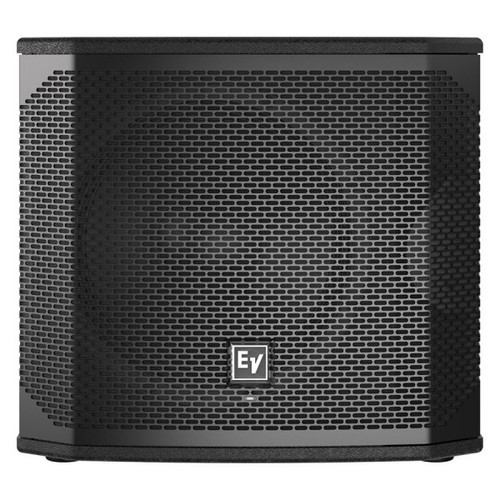

About: Electro-Voice ELX200-12SP 12'' 1200-Watt Powered Subwoofer

ELX200-12SP features high-efficiency Class-D power amplifiers (up to 1200 W) with integrated QuickSmartDSP, and delivers up to 129 dB SPL utilizing transducers designed and engineered by EV (12-inch EVS-12L woofer). Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.

The ELX200 series offers professional Electro-Voice audio quality, precision control, and robust, EV-engineered components in an ultra-lightweight package – a truly potent blend of performance and portability.

Wireless control and monitoring via the new Bluetooth® QuickSmartMobile app* Control your sound while in front of your system. Quickly configure up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions.

Features:

• EV QuickSmart Mobile application: quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth is available in select countries.
• QuickSmartDSP features best-in-class processing. Easy setup via three presets, sub/top system-match, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
• High-efficiency 1200 W Class-D power amplifier delivers up to 129 dB peak SPL utilizing ultraefficient, high-sensitivity transducer designed and engineered by EV.
• Ideal for portable and installed applications. Professional-grade hardware: integrated M20 threaded pole mount plate and two-handle design for easy lifting.

Specifications:

• Frequency response (-3 dB): 49 Hz - 135 Hz¹
• Frequency range (-10 dB): 41 Hz - 165 Hz¹
• Maximum SPL: 129 dB²
• Power rating: 1200 W
• LF transducer: EVS-12L 300 mm (12 in)
• Low-Pass frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz

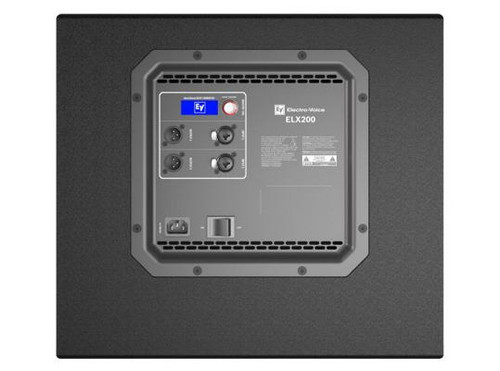

• Connectors: (2) XLR/TRS combo jacks and (2) XLR link outputs
• Enclosure: 15 mm plywood with EVCoat
• Grille: 18 AWG steel with powdercoat
• Color: Black
• Dimensions (H x W x D): 16.7” x 17.6” x 18.0” (397 x 445 x 457 mm)
• Net weight: 42.2 lb (19.1 kg)
• Shipping weight: 49.2 lb (22.3 kg)
• Power consumption: 100 - 240 V~, 50 - 60 Hz, 1.2 ~ 0.6A³

• ¹ Full space measurement using music DSP preset.
• ² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
• ³ Current rating is 1/8 power.
