Fi Audio

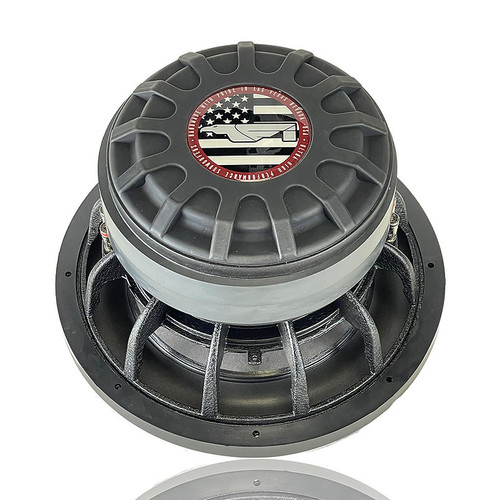

Fi Audio X12 12" 1500W RMS Subwoofer

$682.99
$585.00
SKU:
X12
Condition:
New
Availability:
Usually Ships in 1-2 Days
Shipping:
Calculated at Checkout

Fi Audio X12 12" 1500W RMS Subwoofer

$682.99
$585.00

Fi Audio X12 12" 1500W RMS Subwoofer

$682.99
$585.00

About: Fi Audio X12 12" 1500W RMS Subwoofer

The Xv4 Series of subwoofers is a super tough daily entry level sub. A double stack of wide high strength magnets and a standard high compression pole cap are the foundation for this motor. A multilayer foam wide surround is attached to a fiber impregnated linear kraft pulp cone which helps keep things under control in high power applications. A 3″ 4 layer aluminum voice coil yields 27mm of Xmax while keeping the motor force high. The X v4 Series will works best in ported or 6th order enclosures. Ultra tough and versatile, the X Series works in a variety of applications where excellent durability and output is required.  Gloss carbon caps are standard along with the option of an extra spider for higher FS/QTS applications such as SPL burp classes.

Features:

  • Dual 1 & 2 Ohm
  • Cast basket
  • Wrap around gasket
  • Linear reinforced cone
  • Mulit-layer wide foam surround
  • Push terminal
  • Extra heavy lead wire
  • FEA optimized motor
  • 3” diameter 4 layer coil
  • Wide double stack high grade magnet
  • Dual progressive spiders
  • Gloss carbon cap
  • Compression cooling
  • Optional extra spider

Thiele/Small parameters:

Coils

D1/D2 Soft

D1/D2 Stiff

Fs

33.1 Hz

40.1 Hz

Re

.8/1.6

.8/1.6

Qms

4.97

5.81

Qes

.42

.51

Qts

.39

.47

Mms

314 g

314g

Cms

7.34^-5

5.01^-5

Sd

480 cm^2

480 cm^2

Vas

23.7 l

16.1 l

Spl

85.0 1W/1m

85.0 1W/1m

Bl

16.4/23.2

16.4/23.2

Xmax

27 mm

27 mm

Rms

1500W

1500W

Measurements:

  • Overall: 12.625"
  • Cutout: 11.0625"
  • Mounting Depth: 7.125"
  • Displacement: 0.15
  • Sealed ft3: N/A
  • Ported ft3: 1.8-2.5 cuft
