Descriptions

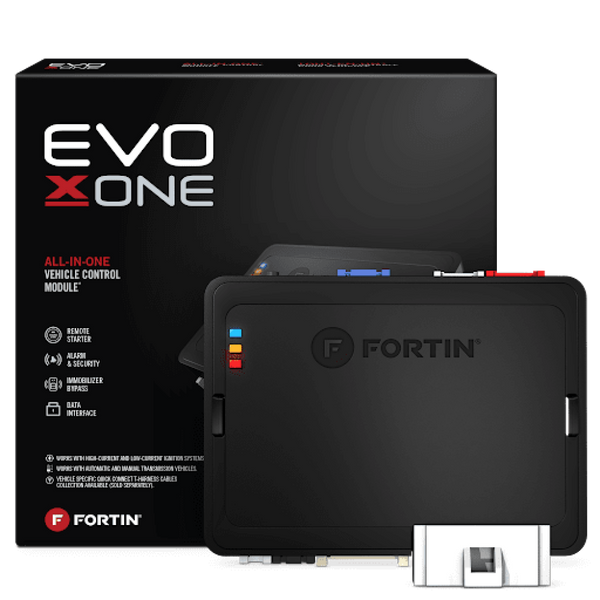

About: Fortin EVO-X-ONE All-In-One Remote Starter, Alarm, Immobilizer Bypass and Data Interface Module

The EVO-X-ONE is the ultimate and smallest ALL-IN-ONE HIGH POWER data immobilizer bypass, doorlock, security system & remote start interface. Compatible with specific T-Harnesses the EVO-X-ONE now sets the industry benchmark to a higher level.

It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple micro controller and bus architecture which redefines the word Remote Starter. This unit is much more powerful than most entry level vehicle's BCM. EVO-X-ONE is an impressive state of the art unit at reachable cost.

Specifications:

• 5 x High power Onboard relay.
• 3 x CAN-Bus controllers.
• 3 x General purpose controllers (J1850, LIN, Class 2, encrypted key etc.).
• 1 x On-board relay (DPDT).
• 1 x Analog controller 0-12VDC @ 20mV steps (Passlock, Parking lights, MUX).
• 10 x Data I/O controllers.
• 1 x Dual zone shock sensor input.
• 2 x Datalink RS232 ports.
• 3 x On-board LEDs for simplified programming and diagnostics.
• 1 x Harness part bag.
• 2 x 2-way datalink port for data-to-data (RS-232) communication with compatible external devices such as smartphones & GPS telematic units.
• [2]Self-Learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

Vehicle Applications:

Audi

Buick

Cadillac

Chevrolet

GMC

Mazda

Subaru

What's in the Box:

• 1x EVO-X-ONE Control Module [1] [3]
• Installation Cables [2]
• 1x Warning Label [3]
• 1x Hood Pin Switch
• 1x 20-pin general-purpose harness [4]
• 1x 6-pin high power harness [4]
• 1x 5-pin CAN-Bus Harness

Legend:

• [1]A firmware update is required
• [2]Using the 2-way datalink port with an equipped telematic unit greatly increases range and user integration.
• [3]Updated firmware and installation guides are posted on a regular basis. We recommend that you update this module to the latest firmware and download the latest installation guide(s) prior to the installation of this product.
• [4]Secure Clip Harness.

Note: The Fortin R-LINK2 may be required for installation (sold separately)
