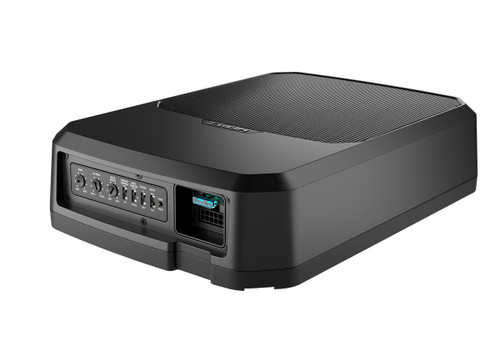

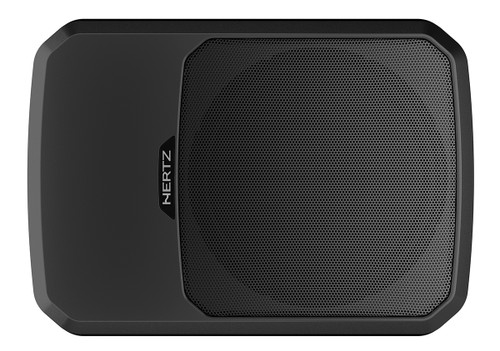

About: Hertz DBA201F 8" 220W RMS Shallow Active Subwoofer Box

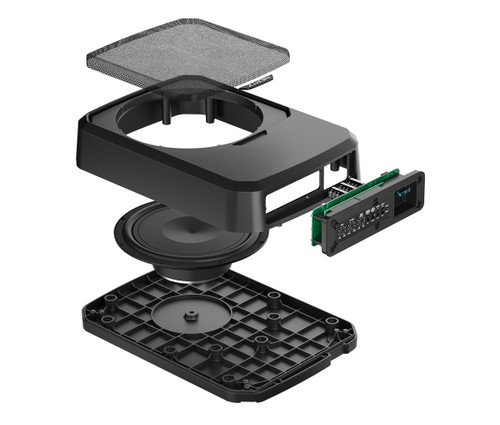

The DBA 201 F flat active subwoofer enclosure optimized with FEM simulation ensures superior performance, maximizing the subwoofer output with a super flat size. The massive magnet of the 8 in. driver provides optimal control during the highest cone excursion.The built-in 24 dB/Oct. low-pass crossover filter with a variable cutting corner frequency (50÷150 Hz) allows you to perfectly match the DBA 201 F to your speaker system. Adjustable bass boost (0÷6 dB @ 45Hz) can add bass output as you prefer, allowing correction for OEM sound equalization. With the phase inverter (0-180°), you can optimize phase alignment between the DBA 201 F and your speaker system, regardless of the subwoofer’s position in the car. The subsonic filter (15 Hz @ 24 dB/Oct) protects the cone from over-excursion and amplifiers from overheating. The input sensitivity control is the perfect tool to maximize the overall system output level while preventing clipping.

Specifications:

• Size mm (in.) 200 (8)
• Power Handling - Continuous W 220
• Power Handling - Peak W 440
• Impedance Ohm 0.4
• Design Super Flat Sealed
• Voice Coil Ø 38.6 (1.52) mm (in.)
• Frequency Response Hz 32 ÷ 400
• Magnet size D x d x h mm (in.) 110 x 45 x 17 (4.33 x 1.78 x 0.67)
• Weight of one component kg (lb.) 4.3 (9.48)
• Magnet High Density Flux Ferrite
• Cone Pressed paper
• Voice Coil Type Copper

Amplifier Stage

• Distortion - THD @ 100 Hz % 0.15
• Bandwidth Hz 15 - 150
• S/N ratio dBA 100
• Output power (RMS) @ 14,4 VDC, 1% THD W

Inputs/Filters

• PRE input signal VRMS (impedance) 0.2 ÷ 5 (10kΩ)
• SPK input signal VRMS (impedance) 1.2 ÷ 30 (6Ω)
• LO-PASS Filter @ 24 dB Oct adjustable Hz 50 ÷ 150
• Subsonic Filter @ 24 dB Oct Fixed Hz 15
• Phase switch 0 / 180°
• Bass Boost @45 Hz dB 0 ÷ 6
• Sub remote volume control dB 0 ÷ -15 (HRC 01 included)

Physical Specifications

• 13.58" x 9.64" x 3.11"
