Descriptions

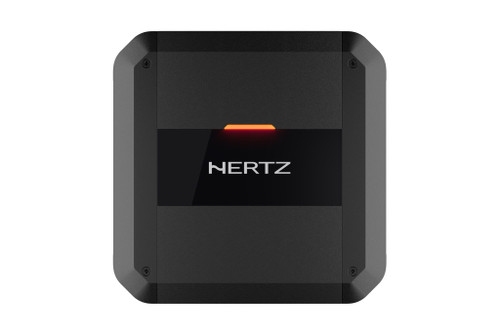

About: Hertz DP 1.500 Mono Class-D Car Audio Amplifier

Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint. Experience high-noise rejection with the balanced input circuitry of the Pre-in and Speaker-in, allowing for clean and interference-free signal transmission. The full set of controls, including adjustable input levels, low-pass crossover filters (50 ÷ 250 Hz @ 24 dB/Oct.), subsonic filter (25 Hz @ 24 dB/Oct.) and bass boost, provides users with the flexibility to fine-tune the audio to their preferences.

Specifications:

• Channels 1
• Amp class D

Power Supply:

• Nominal power supply voltage (fuse) 11 ÷ 15 VDC (1 x 30 A)
• Operating power supply voltage 6.5 ÷ 17.5 VDC
• Idling current 1 A
• Standby current draw 50 uA
• Consumption, MIN load impedance (Max Musical Power) 21 A
• Remote IN 4 ÷ 17 VDC (1 mA)
• ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
• Efficiency 86%

Amplifier Stage:

• Distortion - THD @ 100 Hz, 70% Rated Power 0.2%
• Damping factor @ 1 kHz, 1W 180
• Bandwidth @ -3 dB 10Hz ÷ 500Hz
• S/N ratio (A-weighted @ 1 V Input) 99 dBA
• Minimum load impedance
• @ 1 Ch: 2 Ω
• Adjustable Crossovers yes

Power Supply:

• Efficiency 86%
• ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC
• Remote IN 4 ÷ 17 VDC (1 mA)
• Consumption, MIN load impedance (Max Musical Power) 21 A
• Standby current draw 50 uA
• Channels: 1
• Nominal power supply voltage (fuse) 11 ÷ 15 VDC (1 x 25 A)
• Operating power supply voltage 6.5 ÷ 17.5 VDC
• Idling current 1 A

Inputs/Filters

• Inputs Pre-In / Speaker-In
• Pre Out Full Range
• Pre-In sensitivity 0.32 ÷ 8 VRMS
• Speaker-In sensitivity 1.6 ÷ 40 VRMS
• Lo-Pass OFF / 50÷ 250Hz 24dB/Oct.
• Subsonic OFF / 25 Hz @ 24 dB/Oct.
• Phase 0 / 180°
• Bass Boost 50Hz 0 ÷ 9 dB
• SUB Remote Volume Control HRC 02 -20 ÷ 6 dB

Output Power

• Output power (RMS) @ 1% THD
• 1Ch @ 4Ω : 280 W x 1
• 1Ch @ 2Ω : 500 W x 1
• Output Power (RMS) @ 14.4 VDC, THD 10%:
• 1Ch @ 4Ω 350 W x 1
• 1Ch @ 2Ω 590 W x 1
• Total Power 1180 W

Physical Specifications:

• Weight Kg : 1.62
• lbs : 3.57
