Descriptions

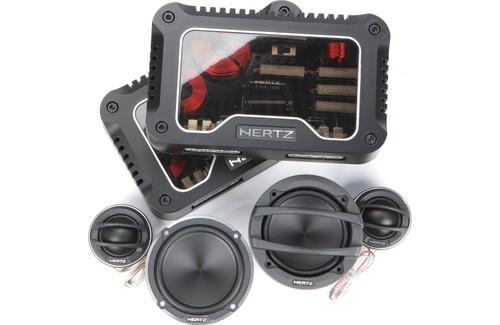

About: Hertz MLK700.3 Mille Legend Series 3" 100W RMS Component Speaker System

The MLK 700.3 Legend car audio speakers system aims at offering a mid-high frequency range of excellence, to combine with a Legend woofer with a choice between ML 1650.3 and ML 1800.3 actively filtered in a multi-amplified configuration. MLK 700.3 Legend is composed of the ML 700.3 Legend Extended Midrange, the ML 280.3 Legend tweeter and the MLCX 2 TM.3 dedicated crossover that features the unique Mid-Countour control with its three-position selector, acting on the mid frequencies of the ML 700.3 Legend midrange by varying the cross-point with the tweeter to obtain the desired sound.

The V-cone® exponential profile without the traditional dustcap gets close to the perfect one, generating exceptional dispersion: thanks to the synergistic action of these technological elements, ML700.3 Legend boasts outstanding high frequency extension making it possible to build purist two-way systems in combination with ML 1650.3 Legend or ML 1800.3 Legend.  Thanks to this configuration, where there is only one cross-point, phase rotations are limited to the minimum, ensuring excellent soundstage and disarming timbre consistency.

With the mid-high frequencies being handled by the ML700.3 Legend and the low ones by the ML1800.3 Legend, the whole audio range is reproduced with transducers built with the same materials and based on the same electro-acoustic structure; that doesn’t happen with woofer and tweeter, since due to its own nature the tweeter is different in materials and structure. The uniformity in materials and structures creates very high timbre consistency, so the speakers can “disappear” and leave room to emotions.

Specifications:

• Component system includes 2 midrange drivers, 2 tweeters, and 2 external crossovers
• 3" pressed pulp/cotton fiber midrange cone
• Boundary Free rubber surround
• Aluminum alloy basket
• 1-7/16" Tetolon dome tweeter
• Compact MLCX 2 TM.3 outboard crossover
• 3-position attenuation switches for tweeter and midrange
• Frequency range: 200-28,000 Hz
• Handles up to 100 watts RMS (200 watts peak power)
• Midrange sensitivity: 90 dB
• Tweeter sensitivity: 92 dB
• Midrange top-mount depth: 1-11/16"
• Grilles included

What's in the Box:

• Two ML 700.3 Midrange
• Two ML 280.3 Dome tweeters (with attached 10" length of speaker wire)
• Two MLCX 2 TM.3 Crossover networks
• 2 Tweeter flush mount cups (installed)
• 2 Tweeter grilles (installed)
• 2 Midrange grilles
• Eight 1" Allen head screws (3mm)
• Eight 1/2" Allen head screws (2.5mm)
• 8 Large speed clips
• 8 Small speed clips
• Two M3 x 8mm Machine screws (2.5mm Allen head/installed in tweeter housing)
• 2.5mm Allen head bit
• Owner's manual (English/ Spanish/ French/ German/ Italian/ Portuguese/ 21 Others)
• Templates on box
