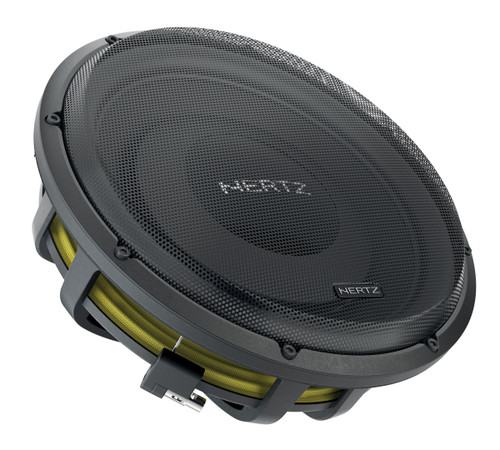

About: Hertz MPS 300 S2 Mille Pro Series 12" 500W RMS Shallow-Mount Subwoofer - 2 Ohm

MPS 300 S2 shallow subwoofer has been designed to achieve exceptional performance even when there is very little space available to install the subwoofer box.

MPS 300 S2 is optimized to work in ultra-compact sealed boxes starting from only 22,7 Lt (0.8 Cf). A typical example is a subwoofer enclosure under the rear bench of pickup trucks, where the space - and the height - are limited.

MPS 300 S2 has a depth/performance ratio never achieved before thanks to the impressive cone excursion capacity which is 20% higher than a traditional design.

This exceptional target has been achieved thanks to the ingenious suspension group design featuring a dedicated support structure for the spider and coil. This solution has allowed the movement of the magnetic group inwards, reducing the depth and at the same time maximizing cone linear excursion.

Features:

• Ultra-shallow overall depth
• 500W continuous power handling
• Optimized for extremely-compact sealed enclosure 20-24L (0.7-0.8CF)
• Air Intercooling Revolution (A.I.R.) prevents air-compression-related limitations
• Unrivalled mechanical excursion, +20% over traditional designs
• Six-layer copper voice coil (38mm/1.5 in.) ensures high thermal capacity
• Non-vented rear design allows reduced enclosure depth
• Robust screw-less mesh grille included with black screws provided
• Die-cast aluminum frame
• Solid horizontal 8AWG spring-loaded terminals
• EID: Scan, Discover, Identify

Specifications:

• Size mm (in.): 300 (12)
• Power Handling - Continuous W: 500
• Power Handling - Peak W: 1000
• Impedance Ohm: 2
• Depth mm (in.): 88 (3.46)
• Voice Coil Type: single
• No Filter Component: Subwoofers
• Voice Coil Ø: 38 (1.5)
• Frequency Response Hz: 25 - 400
• Magnet size D x d x h mm (in.): 156 x 60 x 36 (6.14 x 2.36 x 1.42)
• Weight of one component kg (lb.): 6,64 (14.64)
• Magnet: High density flux ferrite
• Cone: Polypropylene
• Xmech mm (in.): 20 (0.79)

Electro-acoustic Specifications:

• D mm: 262,59
• Xmax mm: 16,80
• Re Ohm: 1,9
• Fs Hz: 24
• Le mH: 1,48
• Vas I: 64,9
• Mms g: 295
• Cms mm/N: 0,16
• BL T*m: 12,3
• Qts: 0,51
• Qes: 0,55
• Qms: 7,5
• Spl dB: 84,5
