Descriptions

About: Hertz SP 1.900 SPL Show Series 1000W RMS Monoblock Car Amplifier

SP 1.900 mono amplifier features Hertz ADC (Advanced D-Class) output stage, reaching up to 87% efficiency. The maximum power of 1000 W is already available at 2Ω and remains stable even at 1Ω. Being ultra-compact (211.6 x 130 x 49 / 8.3 x 5.1 x 1.9) with impressive power, SP 1.900 is the ideal choice for Motorcycle applications under-seat in sports cars and behind-seat installations in trucks.

Features:

• Up to 87% efficiency thanks to ADC (Advanced D-Class) 1Ω stable output stage ensuring high audio performance in a compact size.
• USS (Universal Speakers Simulators) allows SP 1.900 to work with head units featuring the “speaker load detection” circuit.
• 1000 W RMS (1Ω) with ultra-compact size 211.6 x 130 x 49 / 8.3 x 5.1 x 1.9 (mm/inch).
• IP55 aluminum chassis for maximum protection against humidity and external agents.
• There is no cooling fan to prevent internal accumulation of dirt.
• Sealed power cord, line inputs, and speaker outputs to prevent oxidation.

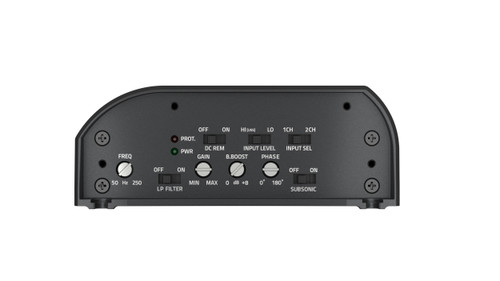

• Crossover filters and controls on a single side to facilitate calibration when the product is installed.
• Balanced fully differential high-noise rejection inputs.
• ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled).
• 24 dB continuous adjustable (50 to 250 Hz) Lo-Pass subwoofer filter.
• SUBSONIC filter (24 dB – 25 Hz), removes very low subsonic frequencies from music signals to avoid damage to the subwoofer.
• The optional HRC BM Remote Volume Control provides the ability to adjust the subwoofer volume level from the dashboard.

Specifications:

• Mono subwoofer amplifier
• 600 watts RMS x 1 at 4 ohms
• 1000 watts RMS x 1 at 2 ohms
• 1000 watts RMS x 1 at 1 ohm
• CEA-2006 compliant: 500 watts RMS x 1 at 4 ohms , 1% THD+N, 14.4 volts
• Hertz Advanced D-Class amp technology (frequency response: 10-500 Hz)
• Variable low-pass filter (50-250 Hz, 24 dB/octave)
• Selectable subsonic filter (25 Hz, 24 dB/octave)
• Variable bass boost (0-8 dB at 45 Hz)
• Phase switch (0-180°)
• IP55 rated for dust- and water-protection
• Conformal-coated circuit boards, aluminum chassis, protective control cover
• Power, input, and output wire harnesses sealed for protection
• Preamp and speaker-level inputs
• USS circuit supplies load for receiver output to prevent shut-down
• RCA-to-wire adapters included
• Wiring, fuse, and hardware not included with amplifier
• 4-gauge power and ground leads and a 50A fuse recommended
• Dimensions: 9.581"W x 1.96"H x 5.147"D

What's in the Box:

• Mono amplifier with attached 8" input/output & power/ground harnesses
• 16" Speaker output harness
• 16" Power & ground harness
• 2 Speaker to RCA adapters
• Four 1" screws
• User manual
