Descriptions

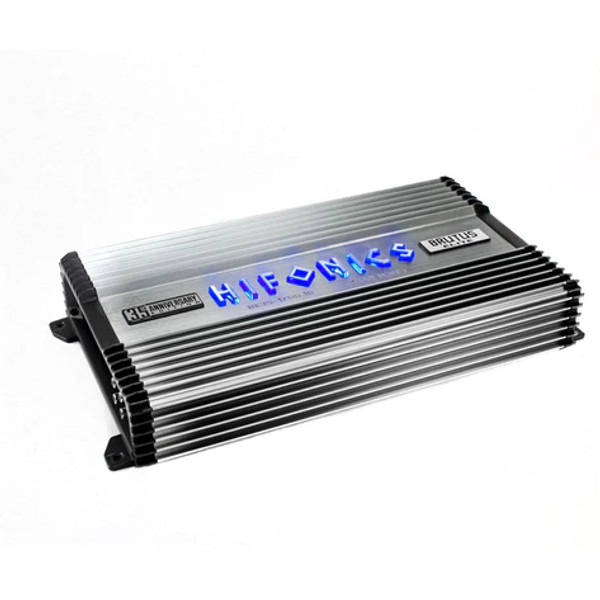

About: Hifonics BE35 1700.1D Brutus Elite Amplifier

Hifonics 35th Anniversary 1700 watt Super D-Class™ BRUTUS ELITE mono subwoofer amplifier with electronic crossovers, bass equalization and bass remote included.

Low Noise Preamplifier Circuit

Low voltage signal from the source unit comes into the amplifier pre-amplifier circuit with minimal distortion.

RCA Inputs

Tiffany Style RCA Connectors: Audiophile signal quality and maximum signal throughput with minimum distortion and maximum external noise rejection

Crossover Type

Accu-Cross: Accu-Cross crossovers allow for complete control of the signal directing to all speakers. See specifications section for specific frequencies.

Electronic Equalizer

Electronic: Control of amplifier output with on board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.

Class / Topology

Super D-Class™: The proprietary "Super D-Class” design uses high-speed microprocessors with proprietary D/A conversion algorithms to efficiently control the current consumption. At very high listening levels. Hifonics Super D-Class results in lower distortion, higher current efficiencies and less heat than conventional D-Class amplifier designs.

Output Device Technology

Ultra-Fi™ MOSFET: The Ultra-Fi™ MOSFET is designed for music production vs just electronics output power. It produces very musical high power with high efficiency for cooling and minimal distortion.

Power Supply

Twin Turbo: The Twin Turbo Coil PS is a Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices.

Output Connections

Nickel-Plated Brass: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant.

Connection Type

Illuminated, Molded and Angled: Secure connection for all Power, Ground and Speaker connections. Angled for ease of access during installation.

Full-Range RCA Outputs for Signal Pass Through

One pair of Tiffany style connectors for a full range, L & R output allow distortion free signal to be passed through this amplifier to feed that signal to other components without the need for noise generating Y cables.

LED System Protection Circuitry Diagnostics

4-Way System Protection Circuitry: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.

Bass Remote Included

Illuminated Bass Remote Included: Wired Bass Remote allows adjustments to bass frequencies from the control which can be mounted anywhere in the vehicle. Smooth potentiometer and ringed illumination in a satin black mount create a custom look.

Specifications:

• Amp Max Power (watts) : 1700
• Amp Power @ 1 Ohm (ch x watts) :  1  x 1700
• Amp Power @ 2 Ohms (ch x watts) :  1 x 1200
• Amp Power @ 4 Ohms (ch x watts) :  1 x 600
• Amp Crossover :  Electronic
• Amp Variable High Pass Crossover 12dB per Octave : N/A
• Amp Variable Low Pass Crossover 12dB per Octave :  40Hz-300Hz
• Amp Tone Control / Parametric EQ : Bass EQ
• Amp Bass Boost :  0-9dB @ 45Hz
• Amp Subsonic Filter : 10Hz-40Hz
• Amp Variable Voltage :  0.2-6V
• Amp Signal to Noise :  > 90dB
• Amp Frequency Response : 100Hz-300kHz
• Amp Speaker Level Audio Inputs :  Yes
• Amp Power Terminal 12v/GND :  4 GA
• Amp Speaker Terminal Wire Gauge :  12 GA
• Amp Total Channels :  1
• Amp Class :  Super D Class™
• Compatible Vehicles :  Universal
