23% Off

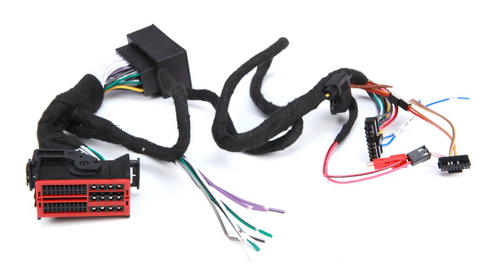

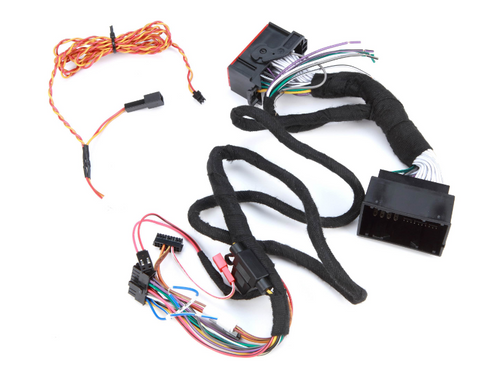

iDatalink Maestro HRN-DSP-CH3 DSP Installation T-Harness for Select Non-Factory Amplified Chrysler Vehicles

iDatalink

iDatalink Maestro HRN-DSP-CH3 DSP Installation T-Harness for Select Non-Factory Amplified Chrysler Vehicles

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$83.99

$59.99

$77.99

23% Off

(You save $24.00 )

SKU: HRN-DSP-CH3

Availability: Special Order - Usually Ships 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: iDatalink Maestro HRN-DSP-CH3 DSP Installation T-Harness for Select Non-Factory Amplified Chrysler Vehicles

DSP installation T-harness for select Chrysler, Dodge, Fiat, Jeep and Ram vehicles 2013 and up without factory amplifiers. Greatly simplifies the installation of the DSR1 and aftermarket amplifier sold separately.

Specifications:

T-harness to add Rockford Fosgate DSR1 processor to select 2013-up Chrysler-built vehicles without premium systems
Retain fader control, tone, and other important features and functions

Compatible Products:

Vehicle Applications:

Chrysler

300 (Without Amplifier): 2015 - 2023
Pacifica (Without Amplifier With Active Noise Cancelling Module): 2017 - 2021
Pacifica (Without Amplifier Without Active Noise Cancelling Module): 2017 - 2021
Voyager (Without Amplifier With Active Noise Cancelling Module): 2020 - 2021
Voyager (Without Amplifier Without Active Noise Cancelling Module): 2020 - 2021

Ram

1500 (Without Amplifier): 2013 - 2018
1500 (Without Amplifier With Active Noise Cancelling Module): 2019 - 2021
1500 (Without Amplifier Without Active Noise Cancelling Module): 2019 - 2021
1500 Classic (Without Amplifier): 2019 - 2023
2500 (Without Amplifier): 2013 - 2018
2500 (Without Amplifier With Active Noise Cancelling Module): 2019 - 2021
2500 (Without Amplifier Without Active Noise Cancelling Module): 2019 - 2021
3500 (Without Amplifier): 2013 - 2021
3500 (Without Amplifier With Active Noise Cancelling Module): 2019 - 2021
3500 (Without Amplifier Without Active Noise Cancelling Module): 2019 - 2021
Promaster (3" Screen): 2014 - 2020
Promaster (5" Screen): 2014 - 2021
Promaster City (3" Screen): 2015 - 2022
Promaster City (5" Screen): 2015 - 2022

Jeep

Compass (Without Amplifier): 2017 - 2021
Gladiator (Without Amplifier): 2020 - 2023
Grand Cherokee (Without Amplifier): 2014 - 2021
Renegade (Without Amplifier): 2015 - 2021
Wrangler JL (Without Amplifier): 2018 - 2023

Fiat

500 (All): 2016 - 2019
500L (All): 2014 - 2020
500X (Without Amplifier): 2016 - 2023
500X (With Amplifier): 2016 - 2023

Dodge

Challenger (Without Amplifier): 2015 - 2023
Charger (Without Amplifier): 2015 - 2023
Durango (Without Amplifier): 2014 - 2020

What's in the Box:

40" Main T-harness w/ inline fuse holder (installed 7.5A mini ATC fuse)
57" 2-Pin T-harness
