iDatalink Maestro APX-FL-FO1 APX Floating Radio Installation Kit for Select Ford Vehicles

$314.99
$434.99
28% Off
SKU: APX-FL-FO1
Condition: New
Availability: Special Order - Usually Ships 3-5 Days
Shipping: Calculated at Checkout
Adding to cart… The item has been added
Have more questions? Ask an Expert
Free shipping on orders over $200
30-Day Return Policy
Canadian Owned & Operated
Price Match Guarantee

Descriptions

About: iDatalink Maestro APX-FL-FO1 APX Floating Radio Installation Kit for Select Ford Vehicles

APX Floating radio installation kit for select Ford vehicles.

Specifications:

  • Allows you to install a Kenwood or JVC Direct Replacement radio with a 10.1" floating screen in select 2011-23 Ford vehicles with factory 4" MyFord Touch Radio (also requires the Maestro RR or RR2 module)
  • Retains appearance of factory dash
  • Retains the following factory features (if present):
    • Steering wheel audio controls with two function buttons and expandable radio functions
    • Backup camera with dynamic parking guidelines and park assist chimes
    • Factory 360° camera (if equipped)
    • Secondary vehicle display (if factory equipped)
    • Factory climate display/controls and vehicle settings from head unit's screen
    • USB port
    • Warning chimes
  • Adds these features:
    • Display vehicle information
    • Selectable performance gauges including "Track Pack" gauges
    • Read/reset check engine codes
  • Provides 12V/15A accessory power and illumination outputs
  • Provides outputs (parking brake, reverse, vehicle speed sensor [VSS]) needed to install a navigation or multimedia receiver

Compatible Radios:

Vehicle Application:

Ford

  • Edge (With 4.2" LCD Screen / Without Amplifier): 2015 - 2019
  • Edge (With 4.3" Screen With Automatic Climate / Without Amplifier): 2011 - 2014
  • Edge (With 4.3" Screen With Manual Climate / Without Amplifier): 2011 - 2014
  • Expedition (With "My Ford" 4.3" screen): 2015 - 2019
  • Explorer (With "My Ford" 4.3" screen / Without Amplifier): 2011 - 2019
  • F-150 (With "My Ford" 4.3" screen): 2015 - 2017
  • F-150 (With "My Ford" 4.3" screen Does not retain Sync): 2018 - 2020
  • F-250 (With "My Ford" 4.3" screen / Without Amplifier): 2017 - 2021
  • F-350 (With "My Ford" 4.3" screen / Without Amplifier): 2017 - 2021
  • F-450 (With "My Ford" 4.3" screen / Without Amplifier): 2017 - 2021
  • F-550 (With "My Ford" 4.3" screen / Without Amplifier): 2017 - 2021
  • Flex (With 4.2" LCD Display): 2013 - 2020
  • Mustang (With 4.2" LCD Display): 2015 - 2023
  • Ranger (With "My Ford" 4.3" screen / Without Amplifier): 2019 - 2023
  • Taurus (With "My Ford" 4.3" screen / Without Amplifier): 2013 - 2019

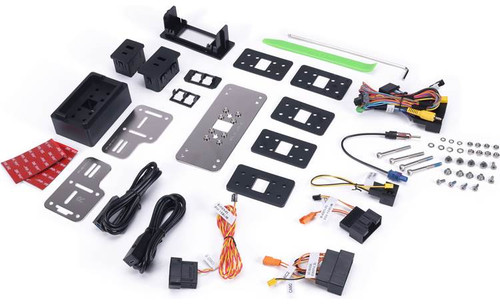

What's in the Box:

  • Floating monitor bracket
  • 5 Spacer mounts
  • Small USB housing
  • Large USB housing
  • USB trim-panel
  • USB trim-ring
  • APX-FL-FO1-02 mounting plate
  • APX-S8-FO1-11 mounting bracket
  • APX-S8-FO1-12 mounting bracket
  • Vehicle/interface wiring harness
  • Yellow/black wire harness
  • CAM2/MIC2 harness
  • MIC2 harness
  • OBDII harness
  • USB-C cable
  • USB-C to USB-A cable
  • Antenna adapter
  • Four M5x45mm screws
  • Four M5x6mm screws
  • Two M5x12mm screws
  • Four M4x10mm screws
  • Four M4 Nuts
  • Four M4 Split washers
  • Four M5x8mm screws
  • Four M5 Nuts
  • Four M5 split-washers
  • 3M tape
  • Pry-tool
  • Hex-tool
  • Quick Start Guide
