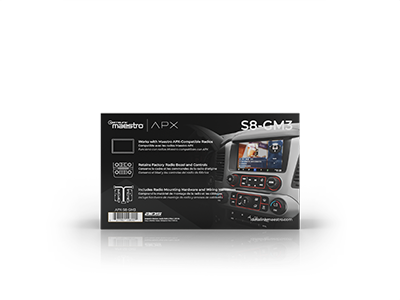

iDatalink Maestro APX-S8-GM3 APX 8" Radio Installation Kit for Select GM Vehicles with Motorized Bezel

iDatalink

iDatalink Maestro APX-S8-GM3 APX 8" Radio Installation Kit for Select GM Vehicles with Motorized Bezel

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$389.99

SKU: APX-S8-GM3

Condition: New

Availability: Special Order - Usually Ships 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: iDatalink Maestro APX-S8-GM3 APX 8" Radio Installation Kit for Select GM Vehicles with Motorized Bezel

APX 8" radio installation kit for select GM vehicles with Motorized Bezel.

Specifications:

Allows you to install a Kenwood or JVC Direct Replacement radio with an 8" screen in select 2014-20 GM vehicles (also requires the Maestro RR or RR2 module)
Retains appearance of factory dash
Retains the following factory features (if present):
- OnStar and Bluetooth hands-free
- Steering wheel audio controls with two function buttons and expandable radio functions
- Backup camera with dynamic parking guidelines and park assist chimes
- Secondary vehicle display (if factory equipped)
- USB ports
- Operate factory climate display/controls and vehicle settings from head unit's screen
Adds these features:
- Display vehicle information
- Selectable performance gauges including "Track Pack" gauges
- Read/reset check engine codes
Provides 12V/15A accessory power and illumination outputs
Provides outputs (parking brake, reverse, vehicle speed sensor [VSS]) needed to install a navigation or multimedia receiver

Compatible Radios:

Vehicle Application:

Chevrolet

Corvette (Amplifier Bypass Required): 2014 - 2019
Impala (With 8" Color Touchscreen / With Bose) (Amplifier Bypass Required): 2014 - 2019
Impala (With 8" Color Touchscreen / Without Amplifier): 2014 - 2019
Suburban (With 8" Color Touchscreen / With Bose) (Amplifier Bypass Required): 2015 - 2020
Suburban (With 8" Color Touchscreen / Without Amplifier): 2015 - 2020
Tahoe (With 8" Color Touchscreen / With Bose) (Amplifier Bypass Required): 2015 - 2020
Tahoe (With 8" Color Touchscreen / Without Amplifier): 2015 - 2020

GMC

Yukon (With 8" Color Touchscreen / With Bose) (Amplifier Bypass Required): 2015 - 2020
Yukon (With 8" Color Touchscreen / Without Amplifier): 2015 - 2020
Yukon XL (With 8" Color Touchscreen / With Bose) (Amplifier Bypass Required): 2015 - 2020
Yukon XL (With 8" Color Touchscreen / Without Amplifier): 2015 - 2020

What's in the Box:

S8-GM3--01 bracket
SB-GM3-02 bracket
S8-GM3-03 bracket
S8-GM-04 bracket
S8-GM3-14 bracket
S8-GM3-12 bracket
S8-GM3-13 bracket
S8-GM3-11 bracket
Vehicle/interface harness
Backup camera harness
External chime
OBDII connector harness
USB-C to USB-A cable
USB-C cable
Antenna adapter
3 Short cable-ties
3 Long cable-ties
3M tape
Pry-tool
Ten M5x6mm screws
Six M5x8mm screws
Four M4x5mm screws
Two M4x5mm screws
"GND" screw
USB-dongle
Quick Start Guide
