iDatalink Maestro APX-S8-GM4 APX 8" Radio Installation Kit for Select GM Vehicles

iDatalink

iDatalink Maestro APX-S8-GM4 APX 8" Radio Installation Kit for Select GM Vehicles

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$389.99

SKU: APX-S8-GM4

Condition: New

Availability: Special Order - Usually Ships 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: iDatalink Maestro APX-S8-GM4 APX 8" Radio Installation Kit for Select GM Vehicles

APX 8" radio installation kit for select GM vehicles.

Specifications:

Allows you to install a Kenwood or JVC Direct Replacement radio with an 8" screen in select 2014-20 GM vehicles (also requires the Maestro RR2 module)
Retains appearance of factory dash
Retains the following factory features (if present):
- OnStar and Bluetooth hands-free
- Steering wheel audio controls with two function buttons and expandable radio functions
- Backup camera with dynamic parking guidelines and park assist chimes
- Secondary vehicle display (if factory equipped)
- USB ports
- Factory climate display/controls and vehicle settings on head unit's screen
Adds these features:
- Display vehicle information
- Selectable performance gauges including "Track Pack" gauges
Provides 12V/15A accessory power and illumination outputs
- Read/reset check engine codes
Provides outputs (parking brake, reverse, vehicle speed sensor [VSS]) needed to install a navigation or multimedia receiver
Does not retain factory amplifier

Compatible Radios:

Vehicle Application:

Chevrolet

Colorado (With 8" Color Touchscreen / Without Amplifier) (RPO code: IOS, IOT, IOU): 2019 - 2022
Colorado (With 8" Color Touchscreen Bose Amplifier Bypass Required) (RPO code: IOS, IOT, IOU): 2019 - 2020

GMC

Acadia (With 8" Color Touchscreen / Without Amplifier) (RPO code: IOS, IOT, IOU): 2020 - 2023
Acadia (With 8" Color Touchscreen Bose Amplifier Bypass Required) (RPO code: IOS, IOT, IOU): 2020 - 2023
Canyon (With 8" Color Touchscreen / Without Amplifier) (RPO code: IOS, IOT, IOU): 2019 - 2022
Canyon (With 8" Color Touchscreen Bose Amplifier Bypass Required) (RPO code: IOS, IOT, IOU): 2019 - 2022

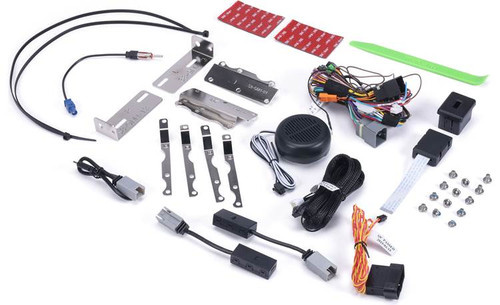

What's in the Box:

S8-GM1-01 bracket
S8-GM1-02 bracket
S8-GM14-12 bracket
S8-GM14-13 bracket
SB-GM1-03 bracket
SB-GM1-04 bracket
SB-GM1-05 bracket
SB-GM1-06 bracket
Vehicle/interface harness
B-HRN-S8 harness
External chime
Ribbon pack
OBDII harness
Antenna adapter
USB housing
micro-USB to USB-C cable
micro-USB to USB-C adapter
micro-USB to USB-A adapter
2 Cable-ties
3M tape
Pry-tool
Ten M5x6mm screws
Two M5x8mm screws
"GND" screw
Quick Start Guide
