About: iDatalink Maestro HRN-HRR-FO2 Plug and Play T-Harness for select Ford Vehicles

RR and RR2 compatible radio replacement harness for select 2011 up ford vehicles . The radio side of the harness terminates in a universal connector that can be used in conjunction with available Maestro Head unit adapters for a plug n play solution or removed for conventional connections Please see vehicle fit guide for more information on this solution.

Features:

• Allows installation of a new receiver in select Ford models (also requires the Maestro ADS-MRR or ADS-MRR2 module)
• Retains steering wheel controls, factory backup camera, and factory amp in select vehicles
• Retains most SYNC features with select Alpine, JVC, Kenwood, Pioneer, and Sony receivers
• Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood, Pioneer, and Sony receivers
• Works with iDatalink's "Head-unit Direct" harnesses, eliminating need for splicing

Vehicle Application:

Ford

• C-Max ("My Ford" with 4.3" screen) / Without Amplifier): 2013 - 2018
• Edge (4.2" and 8" Screen Requires KIT-EDG2 and 7" shallow radio -Without Sony Amplified System): 2015 - 2019
• Edge (4.3" Screen With Manual Climate): 2011 - 2014
• Edge (8" Screen -Requires KIT-EDG2 and 7" shallow radio -Without Sony Amplified System): 2020
• Escape ("My Ford" with 4.3" screen): 2013 - 2018
• F-250 XL (Without screen): 2017 - 2019
• F-350 XL (Without screen): 2017 - 2019
• F-450 XL (Without screen): 2017 - 2019
• F-550 XL (Without screen): 2017 - 2019
• Ranger ("My Ford" with 4.3" screen / Without Amplifier): 2019 - 2023
• Transit 150 ("My Ford Touch" with 6.5" screen): 2015
• Transit 150 ("My Ford" with 4.3" screen): 2015 - 2018
• Transit 150 ("My Ford" with 4.3" screen Must Have Sync): 2019
• Transit 150 (AM/FM/CD with 4" screen): 2015 - 2019
• Transit 250 ("My Ford Touch" with 6.5" screen): 2015 - 2016
• Transit 250 ("My Ford" with 4.3" screen): 2015 - 2018
• Transit 250 ("My Ford" with 4.3" screen Must Have Sync): 2019
• Transit 250 (AM/FM/CD with 4" screen): 2015 - 2019
• Transit 350 ("My Ford Touch" with 6.5" screen): 2015
• Transit 350 ("My Ford" with 4.3" screen): 2015 - 2018
• Transit 350 (AM/FM/CD with 4" screen): 2015 - 2019
• Transit Connect ("My Ford Touch"  with 6.5" screen): 2014 - 2018
• Transit Connect ("My Ford" with 4.3" screen): 2014 - 2018
• Transit Connect ("My Ford" with 4.3" screen / Without Amplifier): 2014 - 2017 & 2019

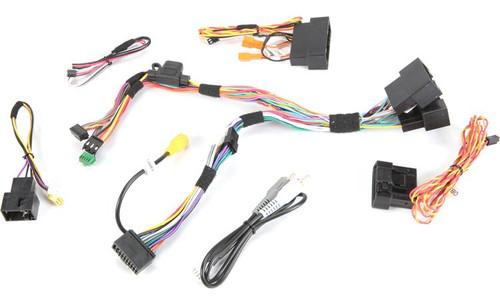

What's in the Box:

• Vehicle/radio installation harness
• OBDII harness
• Front speaker preout harness
• "A" harness
• "B" harness
• "C" harness
