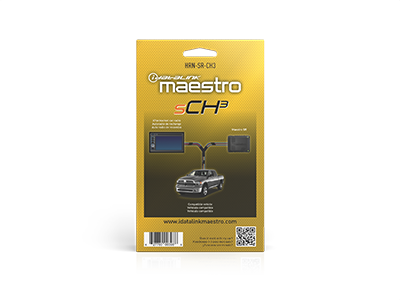

iDatalink Maestro HRN-SR-CH3 MSR Installation Harness for Select Chrysler / Jeep / Fiat / Ram Vehicles

iDatalink

iDatalink Maestro HRN-SR-CH3 MSR Installation Harness for Select Chrysler / Jeep / Fiat / Ram Vehicles

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$53.99

SKU: HRN-SR-CH3

Condition: New

Availability: Special Order - Usually Ships in 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: iDatalink Maestro HRN-SR-CH3 MSR Installation Harness for Select Chrysler / Jeep / Fiat / Ram Vehicles

Installation harness designed for use with Maestro SR module. Compatible with select Ram, Jeep, and Fiat vehicles 2013+ Optional head unit adapters available for most major brands radios for a simplified installation. Please refer to the vehicle fit guide for vehicle-specific feature coverage.

Specifications:

Allows installation of a new car stereo in select Chrysler-built vehicles (also requires the Maestro ADS-MSR module)
Retains steering wheel audio controls, factory amp (including turn-on, fader, gain, and speed-compensated volume), factory backup camera, vehicle settings, and rear seat entertainment (RSE) system with any car stereo
Retains these factory features with an iDatalink-ready stereo:

Secondary vehicle display
Multiple camera switching

Allows addition of aftermarket front, side, and/or 4x4 cameras
Provides parking brake, reverse, Vehicle Speed Sense (VSS) outputs for navigation-ready receivers
Provides 12V accessory power

Compatible Products:

iDatalink Maestro SR

Vehicle Applications:

Chrysler

300 (All): 2015-2020

Ram

1500 (3" Screen): 2013-2018
1500 (5" Screen): 2013-2018
1500 Classic (3" Screen): 2019-2022
1500 Classic (5" Screen W/ (Auto Climate)): 2019-2022
1500 Classic (5" screen W/(Manual Climate) Without Heated Seats): 2019-2023
2500 (3" Screen): 2013-2018
3500 (3" Screen): 2013-2018
Promaster (3" Screen): 2014-2020
Promaster (5" Screen): 2014-2021
Promaster City (3" Screen): 2015-2022
Promaster City (5" Screen): 2015-2022

Jeep

Gladiator (5" Screen Aftermarket Radio must be Shallow Mount Does Not Retain Back Up Camera): 2020-2022
Gladiator (7" Screen Aftermarket Radio must be Shallow Mount Does Not Retain Back Up Camera): 2020-2023
Gladiator (8.4" screen Aftermarket Radio must be Shallow Mount Does Not Retain Back Up Camera): 2020-2023
Wrangler JL (5" Screen Aftermarket Radio must be Shallow Mount Does Not Retain Back Up Camera): 2018-2022
Wrangler JL (7" Screen Aftermarket Radio must be Shallow Mount Does Not Retain Back Up Camera): 2018-2023
Wrangler JL (8.4" screen Aftermarket Radio must be Shallow Mount Does Not Retain Back Up Camera): 2018-2023

Fiat

500 Abarth (All): 2016-2017
500 (All): 2016-2019
500L (All): 2014-2020
500c (All): 2016-2017

What's in the Box:

Wiring harness
