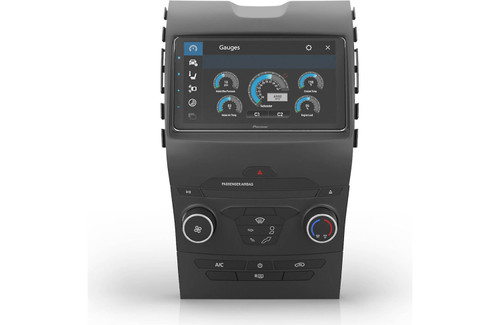

About: iDatalink Maestro KIT-EDG3 Double DIN Dash Kit for 2015-2020 Ford Edge Vehicles

Radio replacement dash kit solution for select Ford Edge vehicles 2015-2020. Includes head unit adapter ready T-harness, radio panel, steel radio brackets, and Replacement USB hub. Allows for the installation 8" or 9" modular radios. Maestro RR is required and sold separately. Head unit adapter for plug and play installation is also sold separately.

Specifications:

Allows you to install an iDatalink-compatible modular radio in select 2015-20 Ford Edge vehicles
Requires Maestro ADS-MRR or ADS-MRR2 interface module (sold separately)
Modular car stereo with 8" or 9" screen required
Includes dash kit, mounting brackets, and wiring harnesses
Includes replacement media hub with one USB-A and one USB-C port
Compatible with iDatalink's head-unit-ready harnesses
Retains these Ford features:
- Steering wheel audio controls
- Backup camera and 360° camera
- Climate controls (install into new dash panel)
- Vehicle settings
- Parking assist chimes
- Secondary display
Added features:

Turn off start/stop function
Read/reset check engine codes
Aftermarket front camera automatic control

Vehicle Applications:

Ford

Edge (4.2" and 8" Screen Requires KIT-EDG3 and 8",9" modular radio -Without Sony Amplified System): 2015-2019
Edge (8" Screen -Requires KIT-EDG3 and 8",9" modular radio -Without Sony Amplified System): 2020

What's in the Box:

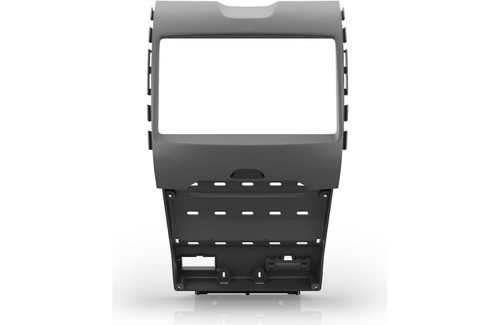

Radio trim-panel
Vehicle/Interface harness
OBDII harness
SYNC harness
2-PIn black/yellow wire harness
Antenna adapter
59" USB-C extension cable
59" USB-A extension cable
2 USB housings
2 USB brackets
Plastic CD-slot cover panel
Metal mounting bracket
Trim-ring
4 Metal clips
4 Rubber caps
4 Screws
Torx-bit
Quick Start Guide
