About: iDatalink Maestro KIT-EXP1 Replacement Dash Kit for 2011-2019 Ford Explorer Vehicles

Radio replacement dash kit for Ford Explorer vehicles 2011-2019 equipped with a factory 4.3" screen. Allows for the installation of a double din radio or a floating radio. Includes head unit adapter ready T-harness. Maestro RR/RR2 module, and iDatalink-compatible aftermarket radio are required and sold separately. Head unit adapter for plug and play installation is also sold separately.

Specifications:

• Allows you to install an iDatalink-ready double-DIN radio in select MyFord Touch-equipped Ford vehicles
• Also requires the Maestro ADS-MRR or ADS-MRR2 module
• Includes dash kit, wiring harness, and other wiring
• Includes hard button climate controls
• Retains steering wheel audio controls
• Retains factory backup camera (if equipped) including advanced camera features
• Retains climate controls and hazard button
• Retains factory menus
• Displays vehicle information and gauges on new receiver's screen
• Supplies outputs (parking brake, reverse, vehicle speed sense [VSS]) for navigation and multimedia receivers

Vehicle Applications:

Ford

• Explorer("My Ford" (4.3" screen)/Without Amplifier): 2011-2019

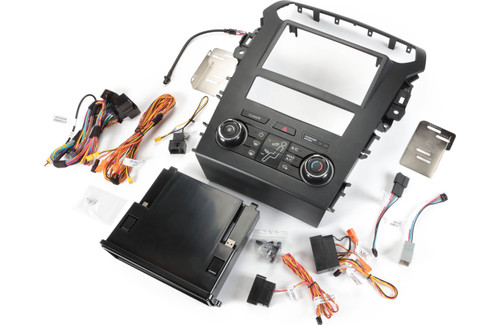

What's in the Box:

• Dash kit with integrated climate control
• Pocket with USB ports (pre-installed rubber mat)
• 2 Radio brackets
• Wiring harness
• Extension harness
• MIC1/MIC2 harness
• Yellow/black wire harness
• Antenna adapter
• OBDII harness
• 2 HVAC harnesses
• 2 Screws
• 2 Clips
• 2 Rubber sleeves
• Quick Start Guide
