About: Infinity Perfect 6SPKSYS 80W RMS 6-Speaker System for Select 2014 - 2022 Harley-Davidson Road Glide and Street Glide Models
This complete speaker and amp kit will bring outstanding sound to 2014-22 Harley-Davidson Street Glide and 2015-22 Road Glide motorcycles equipped with factory fairings, Tour Pak, and saddlebags. The package includes three pairs of Infinity Kappa Perfect speakers, plus two 4-channel amplifiers and all the gear you'll need to install them. Everything goes in without cutting or splicing, and you won't need to have your dealer re-flash the factory receiver.
A six-pack of speakers
Infinity Kappa Perfect speakers are built to perform in motorcycle applications, with an IPX5 waterproof rating that ensures they'll stand up to the elements. Infinity uses a basalt fiber Plus One™ woofer for durability and responsiveness, while the 1" edge-driven dome tweeters deliver smooth highs that cut through wind and road noise.
This kit includes two pairs of 6-1/2” Infinity Kappa Perfect speakers – a pair for the fairings and a pair for the Tour-Pak, plus a pair of 6”x9” models for the saddlebags. And thanks to their removable tweeter design, you have the option to install these as components or coaxials.
A perfect pair of amps
Infinity's Kappa Perfect 5004A amplifier puts out four channels of 75 watts RMS from a chassis about the size and shape of a standard building brick. You'll get two of these compact, rugged amps with this kit, so your speakers will get all the power they need to rock while you roll.
A removable weather-proof panel protects the controls on each amp, while the tough aluminum chassis and conformal-coated circuit boards will help keep the music playing even when the going gets dirty or wet.
Installation made easier
This kit comes with all the brackets and harnesses you'll need to install everything in your Harley-Davidson. As we mentioned earlier, this is about as close to “plug and play” as an installation gets, plus you won't need to re-flash the factory receiver.
Specifications:
- designed for 2014-up Harley-Davidson Road Glide and Street Glide models with factory fairings, Tour Pak, and saddlebags
- system includes 2 pairs of 6-1/2" Infinity Kappa Perfect speakers, 1 pair of 6"x9" Kappa Perfect speakers, and a pair of Infinity Kappa Perfect 5004A amplifiers
Infinity Kappa Perfect 600X 6-1/2" speakers (2 pairs)
- component speaker system includes 2 woofers and 2 tweeters with inline crossovers
- 6-1/2" Plus One basalt fiber woofer cone with hi-roll rubber surround
- 1" edge-driven polyphenylene sulfide dome tweeter
- removable tweeter works with component and coaxial configurations
- IPX5 weather-resistance rating
- Street Glide, Road Glide, and Tour Pak grilles included
- handles up to 80 watts RMS (240 watts peak power)
- frequency response: 60-20,000 Hz
- sensitivity: 95 dB at 2.83 volts
- grilles included
Infinity Kappa Perfect Series 6"x9" component speakers (1 pair)
- component speaker system includes 2 woofers and 2 tweeters with inline crossovers
- 6"x9" Plus One basalt fiber woofer cone with hi-roll rubber surround
- edge-driven polyphenylene sulfide dome tweeter
- removable tweeter works with component and coaxial configuration
- handles up to 100 watts RMS (300 watts peak power)
- frequency response: 50-20,000 Hz
- sensitivity: 95 dB at 2.83 volts
- grilles included
Infinity Kappa Perfect 5004A 4-channel amplifiers (2)
- compact 4-channel amplifier
- 75 watts RMS x 4 at 4 ohms
- Class D amp technology (frequency response: 20-20,000 Hz)
- selectable high-pass filter (60, 80, 120 Hz at 12 dB/octave) on front channels
- selectable high- or low-pass filter (60, 80, 120 Hz at 12 dB/octave) on rear channels
- weather-resistant aluminum chassis and conformal-coated circuit board
- dimensions: 11"W x 1.75"H x 3.3"D

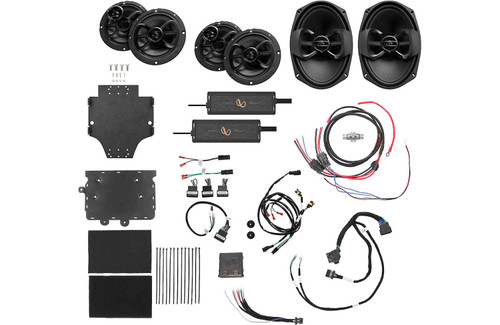

What's in the box:
- This Harley-Davidson audio system includes 11 individually packaged items:
Infinity Kappa Perfect 600X Speakers (x2):
- Two 2-way speakers
- Two 16" Lengths of wire with in-line crossovers
- 2 Surface mount tweeter housings
- 2 Tweeter opening covers
- 2 Street Glide grilles
- 2 Road Glide grilles
- 2 Tour-Pak grilles
- Tweeter removal tool
- Eight 5/8" Screws
- Four 5/8" Flat head screws
- Installation instructions
- Template on box
- 3 Infinity logo badges
Infinity Kappa Perfect 900X:
- Two 6x9 2-way speakers
- Two 16" Lengths of wire with in-line crossovers
- 2 Surface mount tweeter housings
- 2 Tweeter opening covers
- 2 Grilles
- 2 Mounting brackets
- 2 Speaker protectors
- 2 Templates
- Tweeter removal tool
- Eight 1" Screws
- Eight 1/2" Screws
- Four 5/8" Flat head screws
- Installation instructions
Infinity Kappa Perfect 5004A Amplifier (x2):
- 4-Channel amplifier with attached 6.5" input harnesses and 8.5" power/ground & output harnesses (inline 40A ATO fuse)
- 2 Cover plates
- Spare 40A ATO fuse
- Four 5/8" screws
- Four 4mm counter-sunk screws
- Four 6" wire ties
- 2 Decals
- QR Codes for owner's manual (En/Sp/Fr)
- Safety instructions
- Saddle Tramp BC-DSPX-HD2:
- DSP/interface module
- 3' T-Harness
- 16" Input harness
Saddle Tramp BC-AMP06:
- Amplifier mounting plate (Street Glide)
- Two 8.5"x6" sheets of hook-and-loop fastener
- Thirteen 7.5" wire-ties
- Installation instructions
BC-AMP04:
- Amplifier mounting plate (Road Glide)
- Three sheets of hook-and-loop fastener (7.5"x5" / 3"x3" / 5"x1.5")
- Four 3/4" bolts
- Four 12mm machine screws
- 4 Lock-nuts
Saddle Tramp BC-9726:
- 4 Amp bypass connectors
- Two saddlebag speaker harnesses
- 4-Pin connector (un-pinned)
Saddle Tramp HM-9723:
- 8.5' Rear speaker Y-harness
- Two 26" rear speaker harnesses
- Eight 6" wire-ties
- 6 Cable holders with 3M adhesive backing
HM-9703 Amplifier Wiring Kit:
- 6' Power & ground harness with attached 22" turn-on wire
- 12" Power wire lead (bare-ended wire on one end / ring terminal on other end)
- Mini-ANL fuse holder
- 60A Mini-ANL fuse
