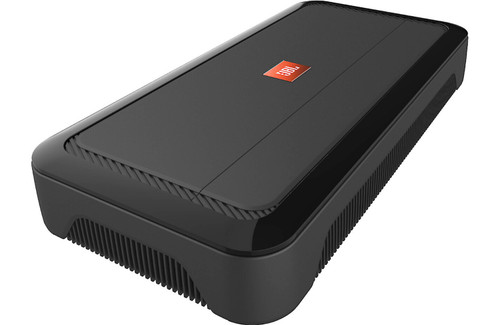

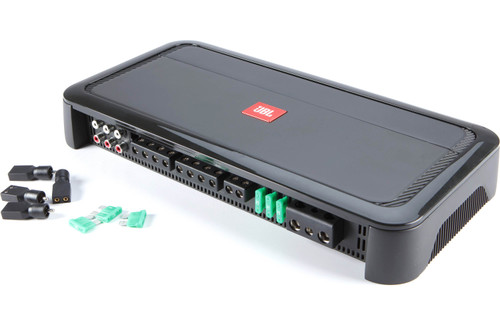

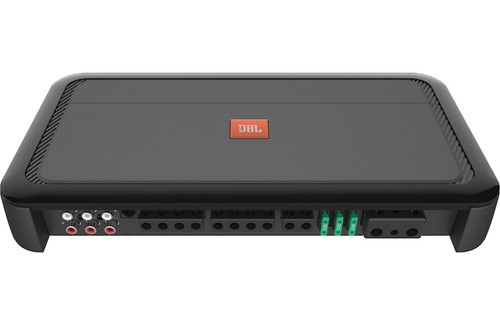

About: JBL AMPCBA5055AM(Club A 5055) High Performance 5-Channel Amplifier

The Club A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your car, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.

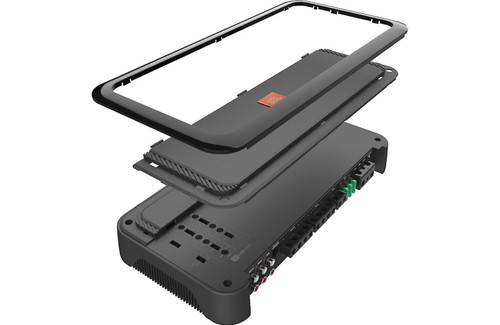

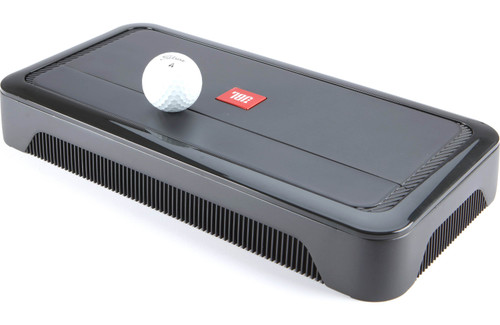

Compact Size

The JBL Club A5055 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.

High and Low Level Input

Speaker-level and low-level inputs allow the Club A5055 to integrate with both aftermarket and factory car stereo systems.

Variable Crossover and Bass Boost

Unlike many amplifiers available at similar prices, the JBL Club A5055 features variable electronics crossovers and bass boost circuits allowing for precise system tuning and performance.

Low Noise and Distortion

The Club A5055 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high outputs levels. This also makes it far less susceptible to line induced radiated engine noise.

Input Level Control

When low-level inputs are used, this control adjust the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full On-Board Protection

On-board circuitry protects the Club A5055 from shorts, high-temperature, overvoltage and undervoltage, An LED indicator is provided to let you know when one of these conditions exists.

Phase Switch

This switch changes the input phase to inverted or non-inverted. This is especially helpful with the subwoofer channel.

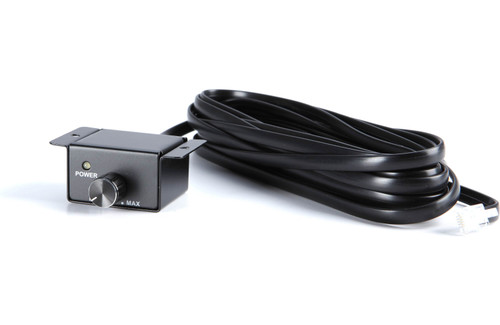

RBC Wired Remote

The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver's seat.

Specifications:

• 5-channel car amplifier
  • 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohmsYes
  • 65 watts RMS x 4 + 500 watts RMS x 1 at 2 ohmsYes
  • 140 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohms
• Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
• Preamp and speaker-level inputs
• 4-gauge power and ground leads recommended
• Wiring and hardware not included with amplifier
• Fuse rating: 30A x 3
• Dimensions: 14-3/16” x 2-1/16" x 7" (36 x 51.3 x 180 mm)
• Warranty: 1 year

What's in the Box:

• 1 x Club A5055 five channel amplifier
• 4 x Bare wire-to-RCA adapters
• 6 x 30A ATO fuses (3 installed, 3 spare)
• 1 x Remote bass control module
• 1 x 16.5' Remote control cable (RJ-25 plugs on both ends)
• 2 x Self-tapping screws for remote (M3 x 15mm)
• 4 x Mounting screws (M4 x 53mm)
• 1 x Owner's manual
