About: JBL BassPro Micro Dockable Powered Subwoofer System

JBL creates a new dockable bass solution with BassPro Micro. This ultra-compact powered subwoofer system achieves jaw-dropping bass performance that is hard to believe for its size. The 140-watt RMS Class D amplifier and proprietary subwoofer combination delivers 100 dB at 10 feet! The subwoofer enclosure is docked to the permanent amplifier base but detaches in just seconds providing extra cargo space when needed. The BassPro Micro includes speaker-level and line-level inputs that easily connect to the car's existing audio system. There are also controls for input sensitivity, crossover frequency, phase and a bass EQ with 9 dB of boost. The BassPro Micro's efficient and streamlined design makes it an ideal upgrade for any car’s audio system. If you are hungry for even more bass, you can daisy chain two units together to deliver real thunder.

Sleek Appearance and Smart Design

With durable grill fabrics, satin chrome trim and matte black finish for the enclosure case, the BassPro Micro looks as good as it sounds. You'll probably be giving your friends a good look at what sounds so good.

Quick Release

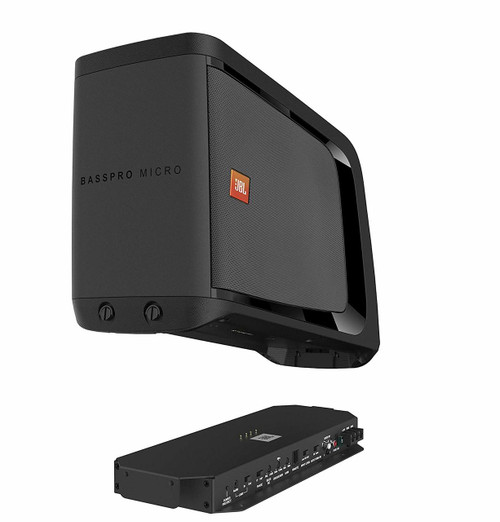

The BassPro Micro is designed to quickly unlatch via a quick release bracket and detach from the amplifier unit that serves as the permanently installed base in the vehicle. Removal of the bass enclosure provides bonus cargo room when needed.

Built-in 140 watt RMS Class D Amplifier

The amplifier provides matched electronics and is optimized for BassPro Micro subwoofer characteristics and enclosure acoustics. Class D operation also mean the amplifier runs cooler and draws less current from the vehicle electrical system.

High and Low-level Inputs

The BassPro Micro system is designed to be compatible with nearly every type of car audio system. It has speaker-level inputs for factory OEM systems or RCA line-level inputs for high-end aftermarket systems. BassPro Micro also has four channel high level inputs to ensure non-fading bass.

Specifications

• Driver Complement: 8"(200mm) Woofer
• Amplifier Power: 140W RMS
• Fuse: 15A
• Maximum Current Draw: 14.5A
• Quiescent Current Draw: <800mA
• Input Sensitivity: 0.05V – 2.0V Low-Level Input; 0.5V – 20V High-Level Input
• Crossover Frequency: 50Hz – 120Hz
• Crossover Slope: 12dB/octave
• Bass Boost: 0dB to + 9dB @ 65Hz
• Dimensions (L x W x H): 16-3/16" x 7" x 10-7/8" (411mm x 177mm x 275mm)

What's in the Box:

• 1 x BassPro Micro Speaker enclosure
• 1 x BassPro Micro Amplifier base
• 1 x Hardware for attachment to vehicle
• 1 x QSG
• 2 x RCA adapters
