Descriptions

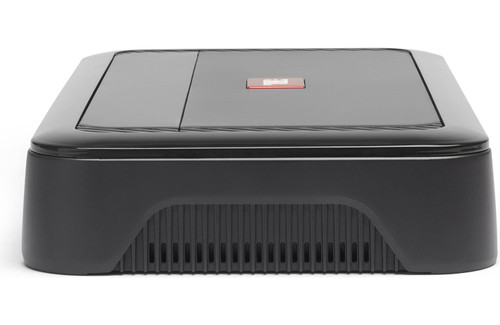

About: JBL AMPCBA754AM Club A754 4-Channel Car Amplifier

The Club A754 4-channel amplifier delivers a powerful 75-Watts RMS to each of the front and rear speakers in your car. You can also bridge the amp to 2-channel mode to drive a couple subs with 200 watts RMS or 3-channel mode to drive both a pair of full range speakers and a subwoofer. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics.

Compact Size

The JBL Club A754 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where avaliable space is limited.

High and Low Level Input

Speaker-level and low-level inputs allow the Club A754 to integrate with both aftermarket and factory car stereo systems.

Variable Crossover

Unlike many amplifier available at similar prices, the JBL Club A754 features variable electronic crossovers for precise system tuning and performance.

Low Noise and Distortion

The Club A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced engine noise.

Input Level Control

When low-level inputs are used, this control adjust the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.

Full On-Board Protection

On-board circuitry protects the Club A754 from shorts, high-temperature, overvoltage and undervoltage, An LED indicator is provided to let you know when one of these conditions exists.

Preamp Outputs

 Using multiple amplifier, the Club A754 has full range preamp outputs allowing you to feed an additional amplifier without using splitters.

Specifications:

• 4-channel car amplifier
  • 75 watts RMS x 4 at 4 ohms
  • 100 watts RMS x 4 at 2 ohms
  • 200 watts RMS x 2 bridged at 4 ohms (4-ohm stable in bridged mode)
• Class H amp technology
• Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels
• Preamp and speaker-level inputs
• Preamp outputs
  • Bare wire to RCA adapters included for high-level input
• Wiring and hardware not included with amplifier
• Fuse rating: 30A x 2
• Dimensions: 12-1/2"W x 2"H x 7"D
• Warranty: 1 year

What's in the Box:

• 1 x Club A754 four channel amplifier
• 4 x Bare wire-to-RCA adapters
• 4 x 30A ATO fuses (2 installed, 2 spare)
• 4 Mounting screws (M4 x 53mm)
• 2 x JBL stickers
• 1 x Owner's manual
