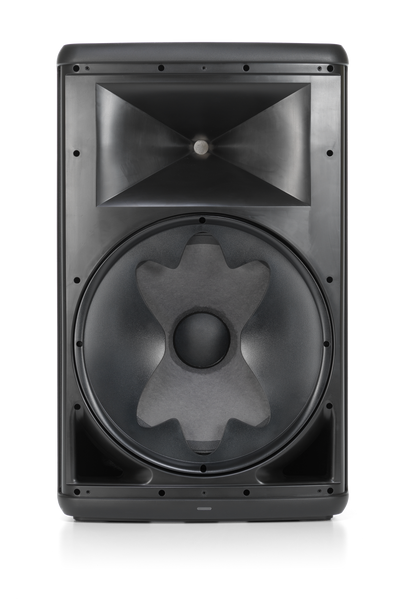

- Custom-designed 15-inch woofer
- 2414H compression driver
- Re-designed high-frequency horn
- Power: 1,300W peak / 650W RMS
- Frequency response: 45 Hz–20 kHz (-10 dB); 55 Hz–20 kHz (-3 dB)
- Max SPL: 128 dB
- Dispersion: 90° H x 60° V

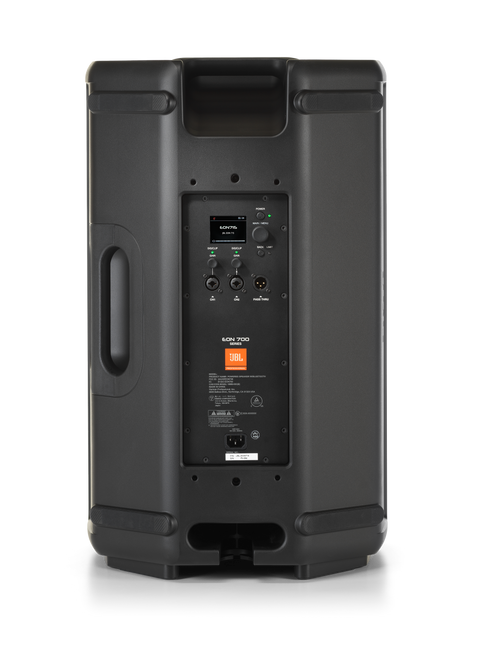

- Audio I/Os: 2 XLR Combo, 1 XLR passthrough
- Advanced dbx DSP: Automatic Feedback Suppression, ducking, 100ms speaker delay, parametric EQ
- Built-in 3-channel digital mixer
- Backlit color LCD screen provides easy access to functions
- Universal JBL Pro Connect app control
- Bluetooth 5.0 streaming and control
- Durable polypropylene cabinet and metal grille
- Two ergonomic handles simplify transport
- Built-in pole mount and optional EON700 Universal Yoke Mount expand system configuration options
- Stackable cabinets allow easy storage
- Dimensions: 27.6 x 17.2 x 13.8 in (702 x 438 x 351 mm) (HxWxD)
- Weight: 37.3 pounds (16.9 kg)
- Shipping dimensions: 29.92 x 21.73 x 18.38 in (760 x 552 x 467 mm) (HxWxD)
- Shipping weight: 49.6 pounds (22.5 kg)
Specifications:
- System Type: 15IN Powered Loudspeaker
- Woofer Model: 715G
- Woofer Size: 15"
- Woofer Magnet: Ferrite
- Woofer Voice Coil: 2"
- Tweeter Model: 2414H Compression Driver
- Tweeter Size: 1''
- Tweeter Magnet: Neodymium
- Transducer Impedence: LF 4ohm rated, HF 8ohm rated
- Max SPL: 128dB @1m/4Pi
- Freq Range -10: 45Hz - 20kHz
- Freq Range -3: 55Hz - 20kHz
- Hor Dispersion: 90°
- Vert Dispersion: 60°
- Power Rating: 1300W peak / 650 RMS
- AC Power Input: 100V-120V or 220V-240V
- Cooling: Passive
- LED Indicators: 1 Power LED, 1 Limit LED, 1 Front LED, 2 Signal/ SSM LEDs
- Input Impedence: 50k/100k un-balanced/balanced
- Input Gain: - ∞to +36db
- Crossover Freq: 1.9 kHz
- I/O: 2 XLR Combo Jacks / BT 1 XLR M Thru Cabinet PP+10% Talc Grille 16GA perforated steel with acoustically transparent black cloth backing Suspension/Mount 4 M10 Suspension points, 36mm Pole Socket, universal yoke bracket holes
- Handles: 2, cable channel on bottom
- Net Weight 17kg (37.48 lbs.)
- Gross Weight 21.5kg (47.40 lbs.)
- Product DIMs HxWxD 716x438x358mm (28.19x17.24x11.09 in.)
- Shipping DIMs HxWxD 738x543x458mm (29.06x21.38x18.03 in.
