About: JBL JBLMA9100HPWHTAM 9.2 Channel 8K High Performance AV Receiver with White Front Panel

The JBL MA9100HP high-performance AV Receiver delivers stunning realism for the ultimate home cinema experience. It is designed with a passion for music and movies, bringing both to life with true high fidelity.

Features:

• free JBL Premium Audio remote app lets you use your Apple® or Android™ device as a Wi-Fi remote and to calibrate the sound quality to your unique room conditions
• setup assistant guides you through the initial connection process and settings
• intuitive on-screen guide

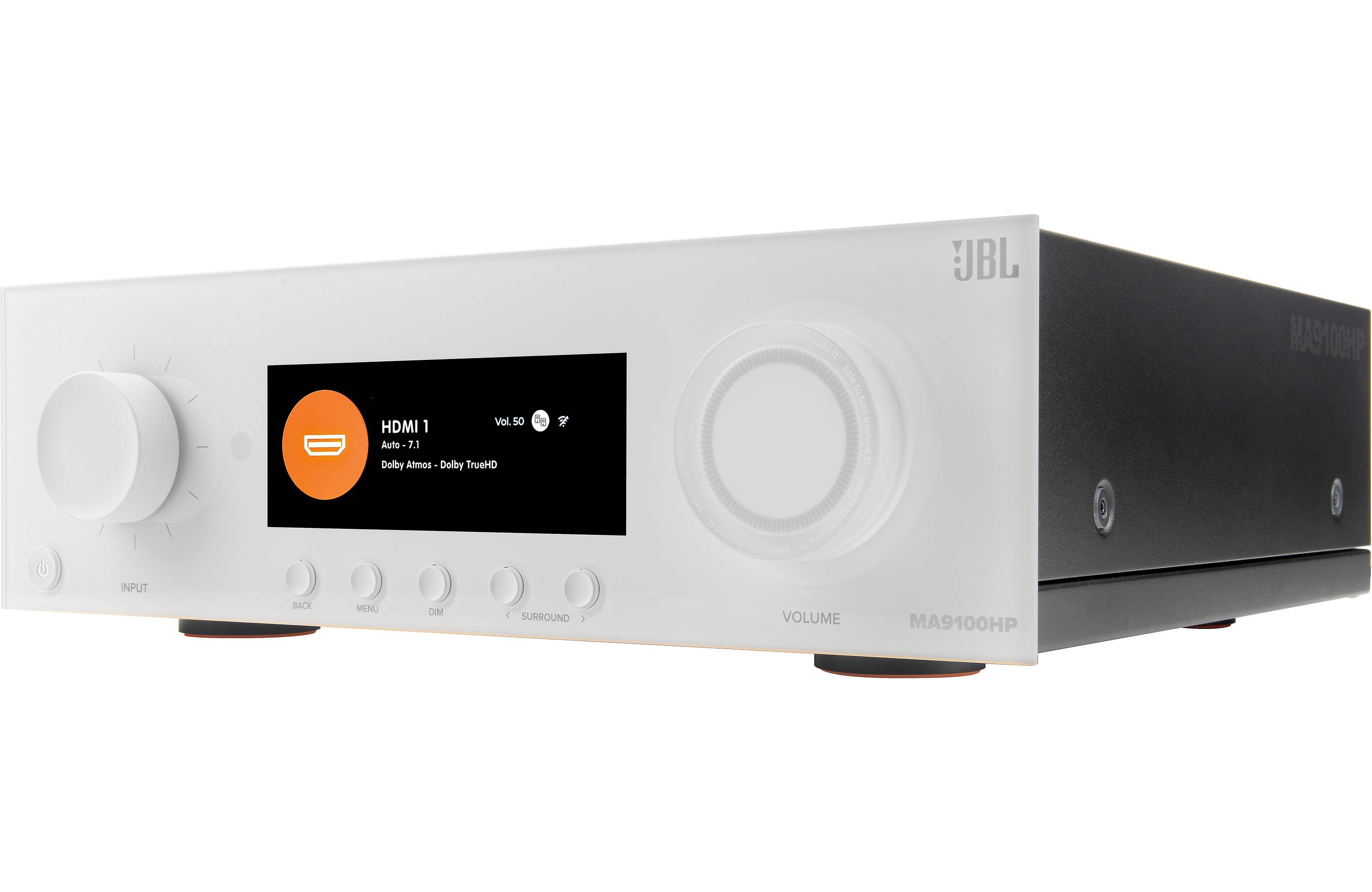

• full color, dimmable front-panel display
• customizable front-panel LED underglow
• HDMI standby pass-through allows HDMI switching without powering up receiver
• built-in support for select third-party home automation systems
• IR remote control

Power and processing:

• 9-channel amplifier
• 140 watts per channel into 8 ohms (20-20,000 Hz) at 0.5% THD
• 240 watts per channel into 4 ohms (20-20,000 Hz) at 0.5% THD
• Dolby® and DTS® surround sound decoding
• Dolby Atmos and DTS:X processing for use with in-ceiling or "height" speakers
• EZ Set EQ provides easy-to-use room equalization for optimized sound quality
• requires network connection
• separate microphone recommended for Android devices
• optional Dirac Live room calibration
• requires purchase of separate license from Dirac
• requires PC or Mac and a third-party USB microphone

Digital and streaming music options:

• built-in Wi-Fi for listening to music from a networked PC, free internet radio, and music services like Spotify® Connect and TIDAL
• Apple AirPlay 2 lets you stream directly from an iPhone® or iPad® and ask Siri to play Apple Music
• supports multi-room audio with compatible wireless speakers
• Google Cast for wireless music streaming from compatible devices
• built-in Bluetooth aptX® HD and aptX Adaptive for wireless music listening with smartphones, tablets, and compatible computers
• Bluetooth transmission for sending audio from the receiver to Bluetooth-enabled headphones
• play audio through Bluetooth headphones only, or through Bluetooth headphones and connected speakers simultaneously
• plays high-resolution digital music files (PCM up to 24-bit/192kHz resolution)
• works as a Roon player (requires subscription and Roon Core running on your network)
• Roon Core is media server software that runs on your computer, NAS drive, or other compatible hardware
• works With SmartThings
• requires setup with a SmartThings Hub and the SmartThings app

Multi-room audio/video:

• dual-room/single-source output
• 2nd HDMI output can send video signal to another TV
• amp assign function lets you use height speaker outputs for front height or middle height speakers, Zone B (labeled as Zone 2), or bi-amping front speakers
• using powered 2nd-room output allows 7.2-channel sound in main room
• line-level 2nd-room output for use with a separate amplifier or powered speakers
• Party mode lets you play music through 7 speakers in your main room and downmixed stereo in your 2nd room

HDMI features:

• HDMI 2.1 audio/video switching: 6 in, 2 out
• three connections support 8K/60Hz and 4K/120Hz video
• all connections support 4K/60Hz video
• HDCP 2.3 technology ensures compatibility with 4K Ultra HD sources and TVs
• supports HDR10, HDR10+ and Dolby Vision
• one connection supports ARC (Audio Return Channel) and eARC (Enhanced Audio Return Channel)
• eARC receives uncompressed surround sound signals including Dolby Atmos and DTS:X via the HDMI connection with your compatible TV
• gaming-optimized video processing technologies for a smooth, lag-free gaming experience
• Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), and Quick Frame Transport (QFT) reduce or eliminate lag and frame tearing

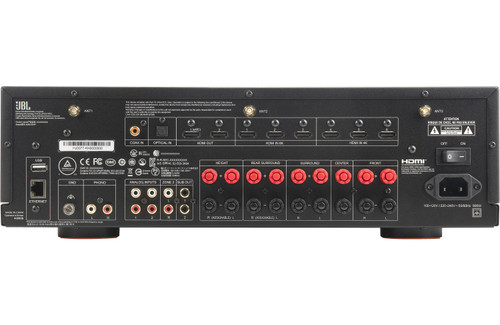

Other connections:

• digital audio inputs: 1 optical and 1 coaxial
• 2 analog stereo RCA line-level audio inputs
• moving magnet (mm) phono input for connecting a turntable
• Zone B stereo RCA preamp outputs (labeled as Zone 2) send main zone audio to another room
• rear-panel USB-A port for audio playback from USB flash drive
• outputs for 9 speakers (Front L/R, Center, Surround L/R, Surround Back L/R, Height1 L/R)
• dual mono RCA subwoofer outputs
• Ethernet port for wired network connection
• detachable power cord

Dimensions & other info:

• 17-1/16"W x 5-5/16"H x 16-11/16"D (7-5/8"H with Wi-Fi antennas raised)
• weight: 16.8 lbs.

Note: Ultra High Speed HDMI 2.1 cable recommended for optimum performance

What's in the box:

• AV receiver
• AC power cord
• Remote control
• 2 "AAA" batteries
• 3 Antennas
• Quick Start Guide
• Safety Sheet
