Descriptions

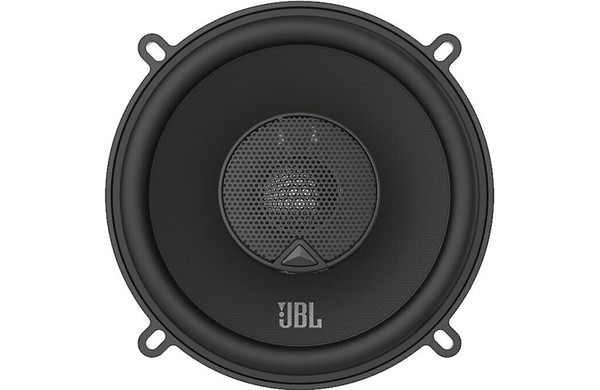

About: JBL JBLSPKSD52FAM Stadium 52F 5-1/4" 2-Way Car Speakers

JBL's Stadium Series speakers - available in 2", 3", 5-1/4",6-1/2", 6" x 8", 4" x 6", 6" x 9", and 3/4"- bring iconic JBL sound that can only come from a 75-year pedigree of audio excellence to virtually any car on the road. Stadium’s Plus One™ fiberglass woofers deliver high-output, deep and robust bass. The high-resolution 3/4" edge-driven textile dome tweeters deliver soaring highs up to 40kHz. 2" and 3" midranges are available to upgrade two-way component systems into three-way. The compact 3" midrange speakers also offer a perfect plug-and-play solution with low frequency response to 300Hz, and high sensitivity.

40KHz High-Resolution Aluminum Dome Tweeter

Stadium edge-driven aluminum dome tweeters equipped with oversized voice coils deliver unforgettable audio experience with impressive thermal power handling and 40kHz high-resolution. Turn every drive into your personal concert.

Patented Plus One Glass Fiber Woofers

Patented Plus One fiberglass woofer cones leverage lighter weight and increased stiffness for a visceral bass experience for the whole body. Dare to listen.

0dB or -3db Tweeter Output Level Control

The push-button on the angled tweeter allows tweeter output level control of 0db or -3dB to optimize system linearity based on installation location.

UniPivot and Angled Tweeter

For 5-1/4", 6-1/2" and 6"x8" coaxial models, the tweeters are angled and can be rotated 270 degrees after installation on most models. This gives you imaging options and the ability to elevate the soundstage on low mounted speakers.

3-way Upgradability

Looking to 3way component system upgrade? Stadium 2-way component system crossovers are equipped with 2-way and 3-way selections, giving you the flexibility to add the optional 2" or 3" midrange with perfect tonal balance,

Super Compact Design and High Sensitivity 3" Midrange Speaker

Stadium 3" midrange delivers low-frequency response to 300Hz while keeping high sensitivity over 89dB. The super compact design and premium performance allows the midrange to fit more vehicles without sacrificing any of your audio experience.

Sleek and Powerful Industry Design

Intelligent design that complements the aesthetic of any car while filling it with premium sound.

Slim and Smart Crossover Design

Stadium component systems all have a very slim crossovers, which equipped with connection cable for easy installation. The push-button on crossover allows tweeter output level control of 0dB or -3dB to optimize system linearity based on installation location.

Specifications:

• 5-1/4" (133 mm) 2-way car speakers
• Plus One+ glass-fiber woofer cone with hi-roll rubber surround
• Edge-driven, aluminum dome tweeter
• UniPivot angled tweeter design
• Power Handling:
• RMS Power: 60 Watts
• Peak Power: 180 Watts
• Sensitivity (@ 2.83V): 93dB
• Frequency Response: 55Hz – 40kHz
• Impedance: 3 Ohms
• Grilles not included

What's in the Box:

• 2 x Speakers
• 2 x Foam gaskets
• 8 x screws
• 8 x speed clips
• 2 x JBL logo badges
• 2 x brand stickers
• Owner’s manual
