JBL PRX812W 12" Powered Speaker

MSRP: $1,385.00

$1,179.99

(You save $205.01 )

Description
Warranty Information
Shipping & Returns

Description

About: JBL PRX812W 12" Powered Speaker

12” Two-Way Full-Range Main System/Floor Monitor with Wi-Fi

The JBL PRX812 is a full-range speaker designed for main system and floor monitor applications. Featuring a 12”, two-way, bass-reflex design powered by a 1500-watt class-D amplifier, PRX812 delivers incredible volume in a lightweight and compact form factor.

Compatible with HARMAN Connected PA

The PRX800 series integrates embedded ioSYS technology which enables easier setup and control when used with the HARMAN Connected PA app and compatible products. Connected PA delivers seamless plug-and-play operation with a variety of HARMAN equipment and enables you to control your entire live sound system with one app. Products within the Connected PA system self-identify and retain presets for effortless setup, and setup wizards help you quickly optimize speaker levels, configuration settings and EQ. Current products with embedded ioSYS technology and HARMAN Connected PA compatibility include the Ui24R mixer, JBL PRX800 loudspeakers, dbx Di1 direct boxes, and AKG P5i microphones. Learn more about HARMAN Connected PA.

Features:

Built-in Wi-Fi for wireless control of your system from anywhere in the venue

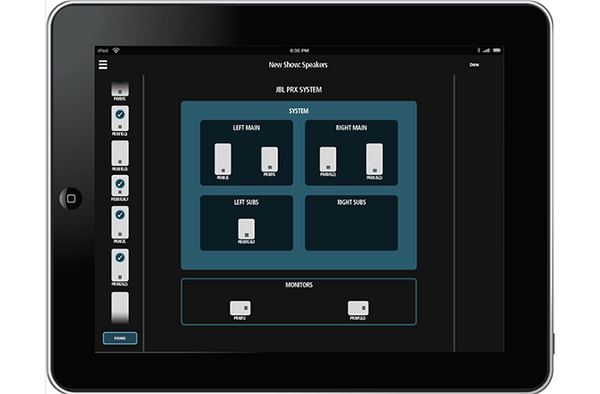

Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
Class-leading 1500-watt amplifier delivers ample power to fill your venue
JBL Differential Drive® transducers for higher SPL in a lightweight design
Next-generation JBL neodymium compression drivers
Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
Intelligent variable-speed fan activates only when needed to reduce noise
Updated tuning delivers flat frequency response and smooth off-axis behavior
Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
Universal power supply for worldwide compatibility
dbx Type IV™ limiting ensures clear, accurate sound at high volumes
Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

Applications:

PRX812 is a compact and versatile speaker in the PRX800 Series with remote Wi-Fi control of onboard DSP EQ parameters. It has been designed to deliver maximum performance for its weight and size as both a stage monitor and a front of house main PA. Two user selectable EQ settings are provided to optimize the system for either application. With a dual socket pole mount the PRX812 is a perfect match with a PRX818XLF subwoofer, offering a high performance self-powered sub/sat system.

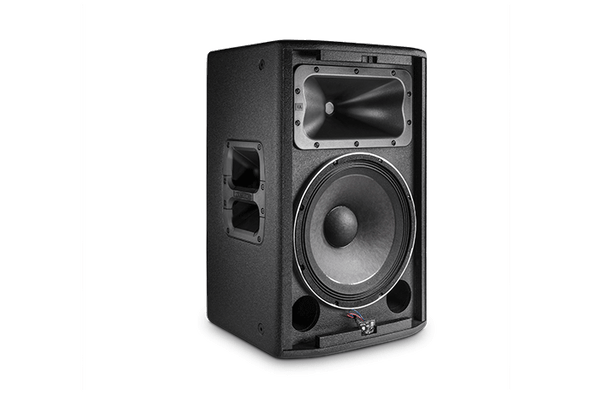

The PRX812 is comprised of a 12” Differential Drive® woofer, a 2408H-1, 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by 1500 watt Class-D digital power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.
All PRX800 cabinets are built from 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

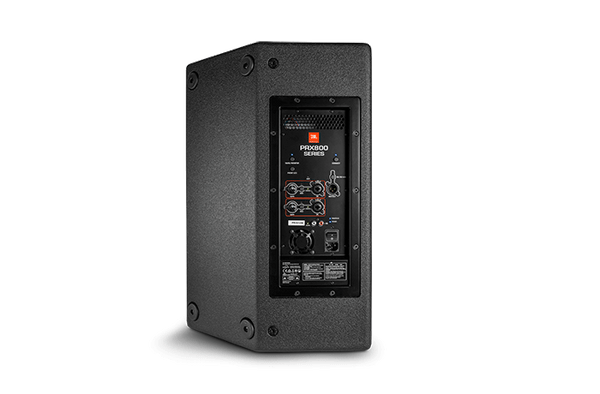

The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and limiter lights indicate the system status and assist in setting the optimum level via the level control knob.

Specifications:

System Type: Self Powered 12”, two-way, bass-reflex
Maximum SPL Output: 135 dB peak
Frequency Range (-10 dB): Main: 44.8 Hz – 20 kHz Monitor: 44.8 Hz – 20 kHz
Frequency Response (±3 dB): Main: 55.7 Hz – 20 kHz Monitor: 56.5 Hz – 20 kHz
Input Connectors: 2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input
Input Impedance: 20K Ohms (balanced), 10K Ohms (unbalanced)
Signal Indicators:
Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power: Blue indicates system has power and ready to pass audio
EQ: User selectable presets for Main or Monitor position, Advanced EQ settings available using Wi-Fi and PRX Connect application
Dynamic Control (Input): dbx Type IV™ limiter circuit
Crossover Frequency: 1.85 kHz
Design: Highly efficient Class-D amplifier
Power Rating: 1500W (750W x 2)
AC Power Input: 100V - 240V ~ 50/60 Hz
LF Driver: 1 x JBL 272G 305 mm (12 in) woofer
HF Driver: 1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver
Coverage Pattern: 90° x 50° nominal
Directivity Index (DI): 10.2 dB
Directivity Factor (Q): 10.4
Enclosure: Asymmetrical, 18 mm, plywood
Suspension / Mounting: Dual 36 mm pole socket, 12 x M10 Suspension Points
Transport: 1 x injection molded handle with backing cup
Finish: Obsidian DuraFlex™ finish
Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D): 23.6" x 15.1" x 13.4" (599 x 385 x 341 mm)
Net Weight: 40 lbs / 18.1 kg
Gross Weight: 48.0 lb (21.2 kg)
