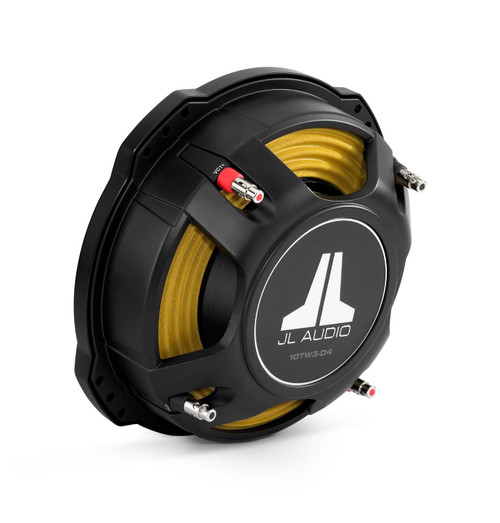

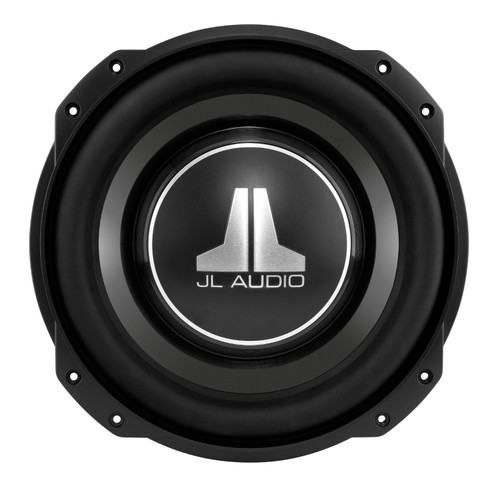

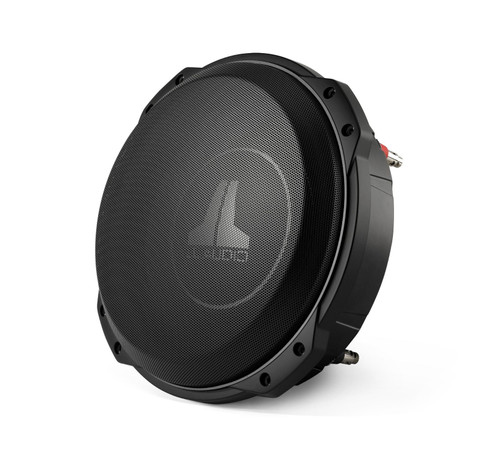

JL Audio 10TW3-D4 TW3 Series Thin-Line 10" 400W RMS Subwoofer - Dual 4 Ohm

have questions?

+1 (416) 745-1021

Ask an Expert

Guaranteed Fitment

Always the correct part
In-House Experts

We know our products
Installation Assistance

We're happy to help
Canada Wide Delivery

Free shipping on orders over $200*

JL Audio

JL Audio 10TW3-D4 TW3 Series Thin-Line 10" 400W RMS Subwoofer - Dual 4 Ohm

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$689.95

$579.95

SKU:: 10TW3-D4
UPC:: 699440921848
Condition:: New
Availability:: Special Order - Usually Ships in 3-5 Days
Shipping:: Calculated at Checkout

JL Audio 10TW3-D4 TW3 Series Thin-Line 10" 400W RMS Subwoofer - Dual 4 Ohm

$689.95

$579.95

Description
Shipping & Returns

Description

About: JL Audio 10TW3-D4 TW3 Series Thin-Line 10" 400W RMS Subwoofer - Dual 4 Ohm

Building on the core technology of our TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s.

To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

TW3’s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing Subwoofers.

Features:

Very shallow mounting depth (3.25 / 3.50 Inches)
No pole vent: permits mounting close to rear wall of enclosure.
Very small sealed enclosure volume requirements
Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
DMA-optimized motor designs
“concentric tube” architecture
Patented “floating cone attach method” technology
Cast alloy frame
Injection molded, mica-filled polypropylene cone
Rubber surround
Aluminum-alloy dust cap and rear cap with JL Audio logo
Precision-built in USA at JL Audio’s Miramar, Florida factory with global components

Specifications:

Continuous Power Handling (RMS): 400 W
Recommended Amplifier Power (RMS): 200 - 400 W
Nominal Impedance (Znom): Dual 4 Ω
Nominal Diameter: 10 in / 250 mm
Overall Diameter:

A1: 11.2 in / 284 mm
A2: 10.5 in / 267 mm

Mounting Hole Diameter: 9.625 in / 244 mm
Bolt Hole Circle Diameter: 10.5 in / 267 mm
Motor Outer Diameter: 5.1 in / 130 mm
Mounting Depth: 3.25 in / 83 mm
Driver Displacement: 0.019 cu ft / 0.54 L
Net Weight: 10.1 lbs / 4.6 kg

Parameters:

Free Air Resonance (Fs): 32.30 Hz
Electrical “Q” (Qes): 0.656
Mechanical “Q” (Qms): 11.35
Total Speaker “Q” (Qts): 0.62
Equivalent Compliance (Vas): 0.700 cu ft / 19.82 L
One-Way Linear Excursion (Xmax)*: 0.6 in / 15.2 mm
Reference Efficiency (no): 0.23%
Efficiency (1 W / 1 m)**: 82.10 dB SPL
Effective Piston Area (Sd): 56.532 sq in / 0.0365 sq m
DC Resistance (Re)***: 9.036 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
*** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same.

Sealed Enclosure Specifications:

Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 0.50 cu ft / 14.16 L
External Width (W) 16 in / 406 mm
External Height (H) 13.875 in / 352 mm
External Depth (D) 6.5 in / 165 mm
F3 40.09 Hz
Fc 50.04 Hz
Qtc 0.96

Ported Enclosure Specifications:

Wall Thickness 0.75 in / 19 mm
Front Baffle Thickness 0.75 in / 19 mm
Volume (net int.) 0.60 cu ft / 17 L
External Width (W) 30 in / 762 mm
External Height (H) 14.625 in / 372 mm
External Depth (D) 5.125 in / 130 mm
Internal Slot Port Width (SW) 3.625 in / 92 mm
Internal Slot Port Height (SH) 2.125 in / 54 mm
Internal Slot Port Length (SL) 31.0625 in / 789 mm
Port Extension Length (PL) 26.375 in / 670 mm
Tuning Frequency (Fb) 32.14 Hz
F3 32.11 Hz

Enclosure Notes:

The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure.
All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account.
When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support.
We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
All specifications are subject to change without notice.

Safety Notice:

Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

What's in the Box:

One 10" Thin-Line subwoofer
Owner's manual
Voice coil connection warning
On-line product registration note
