JL Audio

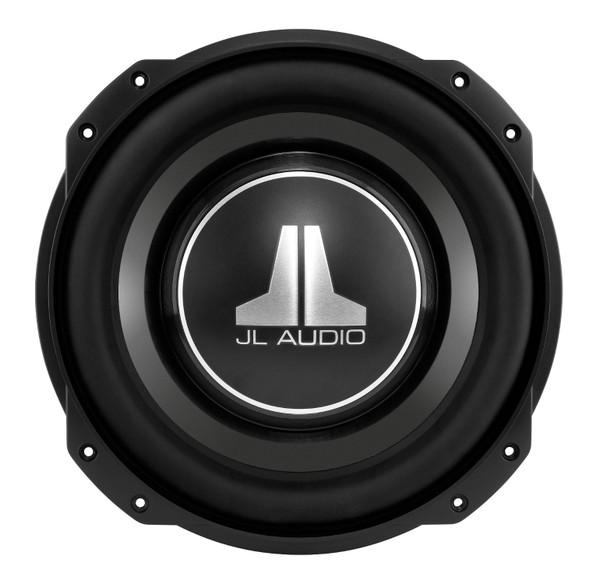

JL Audio 10TW3-D8 TW3 Series Thin-Line 10" 400W RMS Subwoofer - Dual 8 Ohm

$689.95
SKU:
10TW3-D8
UPC:
699440921930
Condition:
New
Availability:
Special Order - Usually Ships in 3-5 Days
Shipping:
Calculated at Checkout
Out of stock

JL Audio 10TW3-D8 TW3 Series Thin-Line 10" 400W RMS Subwoofer - Dual 8 Ohm

$689.95

Out of stock

About: JL Audio 10TW3-D8 TW3 Series Thin-Line 10" 400W RMS Subwoofer - Dual 8 Ohm

TW3 10-inch Subwoofer (400 W, dual 8 Ω voice coils)

Building on the core technology of our TW5 thin-line subwoofers, the TW3’s deliver a powerful combination of shallow mounting depth and excursion capability. In fact, they are capable of greater excursion than the W3v3’s.

To allow this remarkable feat to be achieved, JL Audio’s patented thin-line woofer technology compresses the architecture of the TW3’s using a “concentric tube” structure built into the injection-molded cone body. This structure supports the voice coil and a full annular spider, while permitting the placement of the large motor structure further forward in the speaker than with conventional designs.

TW3’s are optimized for small enclosures and offer our tab-ear mounting design to maximize cone area within their mounting footprints. We know you’re going to love working with these amazing Subwoofers.

Deep, powerful and accurate JL Audio bass is now possible in more applications than ever.

  • Very shallow mounting depth (3.25 / 3.50 Inches)
  • No pole vent: permits mounting close to rear wall of enclosure.
  • Very small sealed enclosure volume requirements
  • Very long linear excursion capability (0.60 In / 15.2 mm, one-way)
  • DMA-optimized motor designs
  • “concentric tube” architecture
  • Patented “floating cone attach method” technology
  • Cast alloy frame
  • Injection molded, mica-filled polypropylene cone
  • Rubber surround
  • Aluminum-alloy dust cap and rear cap with JL Audio logo
  • Precision-built in USA at JL Audio’s Miramar, Florida factory with global components

General Specifications:

  • Continuous Power Handling (RMS): 400 W
  • Recommended Amplifier Power (RMS): 200 - 400 W
  • Nominal Impedance (Znom): Dual 8 Ω

Physical Specifications:

  • Nominal Diameter: 10 in / 250 mm
  • Overall Diameter:
    • A1: 11.2 in / 284 mm
    • A2: 10.5 in / 267 mm
  • Mounting Hole Diameter: 9.625 in / 244 mm
  • Bolt Hole Circle Diameter: 10.5 in / 267 mm
  • Motor Outer Diameter: 5.1 in / 130 mm
  • Mounting Depth: 3.25 in / 83 mm
  • Driver Displacement: 0.019 cu ft / 0.54 L
  • Net Weight: 10.1 lbs / 4.6 kg

Parameters:

  • Free Air Resonance (Fs): 39.262 Hz
  • Electrical “Q” (Qes): 0.825
  • Mechanical “Q” (Qms): 9.84
  • Total Speaker “Q” (Qts): 0.761
  • Equivalent Compliance (Vas): 0.510 cu ft / 14.44 L
  • One-Way Linear Excursion (Xmax)*: 0.6 in / 15.2 mm
  • Reference Efficiency (no): 0.23%
  • Efficiency (1 W / 1 m)**: 82.27 dB SPL
  • Effective Piston Area (Sd): 56.532 sq in / 0.0365 sq m
  • DC Resistance (Re)***: 15.008 Ω
  • * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
  • ** For parallel-wired voice coils, divide "Re" by 4. All other specifications remain the same.
  • *** Re (DC resistance) is measured with the voice coils in series, for parallel-wired specification divide Re by 4. All other specifications remain the same

Sealed Enclosure Specifications:

  • Wall Thickness: 0.75 in / 19 mm
  • Front Baffle Thickness: 0.75 in / 19 mm
  • Volume (net int.): 0.575 cu ft / 16.3 L
  • External Width (W): 16.75 in / 425 mm
  • External Height (H): 15 in / 381 mm
  • External Depth (D): 6.5 in / 165 mm
  • F3: 41.61 Hz
  • Fc: 53.93 Hz
  • Qtc: 1.0453

Ported Enclosure Specifications:

  • Wall Thickness: 0.75 in / 19 mm
  • Front Baffle Thickness: 0.75 in / 19 mm
  • Volume (net int.): 0.75 cu ft / 21.2 L
  • External Width (W): 30 in / 762 mm
  • External Height (H): 16.375 in / 416 mm
  • External Depth (D): 5.25 in / 133 mm
  • Internal Slot Port Width (SW): 3.75 in / 95 mm
  • Internal Slot Port Height (SH): 2.125 in / 54 mm
  • Internal Slot Port Length (SL): 26.8125 in / 681 mm
  • Port Extension Length (PL): 25 in / 635 mm
  • Tuning Frequency (Fb): 31.33 Hz
  • F3: 29.54 Hz

Enclosure Notes:

  • The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure
  • All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account
  • When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support
  • We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance.
  • All specifications are subject to change without notice

Safety Notice:

  • Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity.
  • When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van.

Features:

  • 10" subwoofer with dual 8-ohm voice coils
  • Shallow-mount design with small airspace requirements
  • Mica-filled polypropylene cone with rubber surround
  • Cast alloy basket
  • Top-mount depth: 3-1/4"
  • Handles up to 400 watts RMS
  • Peak power handling: 800 watts
  • Frequency response: 24-200 Hz
  • Sensitivity: 82.27 dB
  • Sealed box volume: 0.575 cubic feet
  • Ported box volume: 0.75 cubic feet

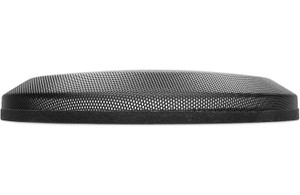

  • Grille not included

What's in the Box:

  • One 10" Thin-Line subwoofer
  • Owner's manual
  • Voice coil connection warning
  • On-line product registration note
