• Wall Thickness: 0.75 in / 19 mm
• Front Baffle Thickness: 0.75 in / 19 mm
• Volume (net int.): 1.25 cu ft / 35.4 L
• External Width (W): 25 in / 635 mm
• External Height (H): 12 in / 305 mm
• External Depth (D): 12.5 in / 318 mm
• Internal Slot Port Width (SW): 1.25 in / 32 mm
• Internal Slot Port Height (SH): 10.5 in / 267 mm
• Internal Slot Port Length (SL): 24.75 in / 629 mm
• Port Extension Length (EL): 11.625 in / 295 mm
• Tuning Frequency (Fb): 32.0 Hz
• F3: 31.4 Hz

Enclosure Notes:

• The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure
• All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account
• When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support
• We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance
• All specifications are subject to change without notice

Safety Notice:

• Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity
• When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van

Features:

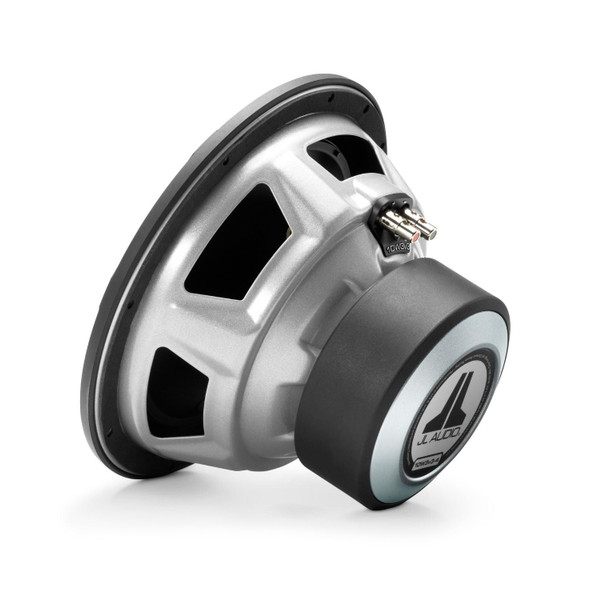

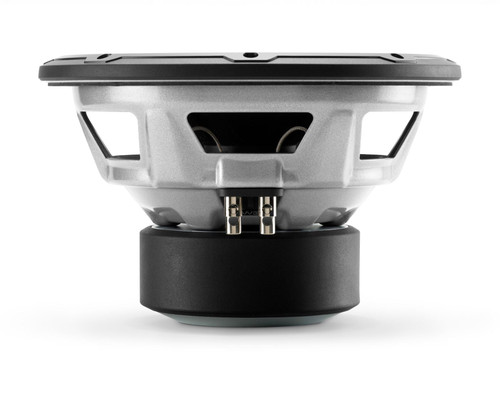

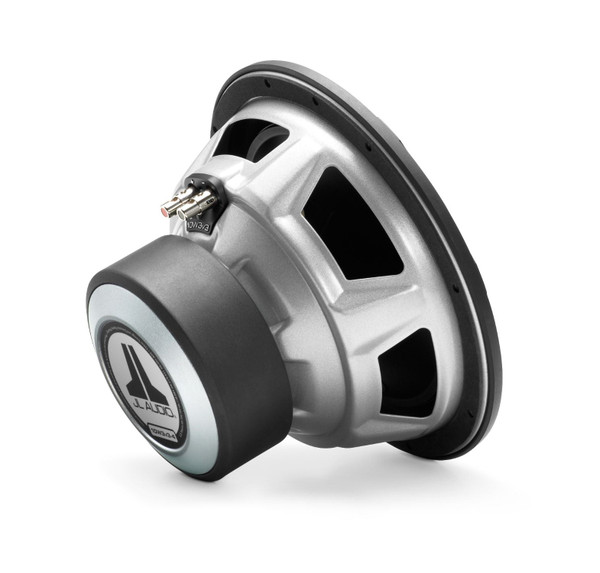

• 10" 2-ohm subwoofer
• Mineral-filled polypropylene cone with nitrile-butylene rubber surround
• Power range: 100-500 watts RMS
• Peak power handling: 1000 watts
• Frequency response: 25-250 Hz
• Sensitivity: 85.37 dB
• Top-mount depth: 5-7/8"
• Sealed box volume: 0.625 cubic feet
• Ported box volume: 1.25 cubic feet

What's in the Box:

• One 10" Subwoofer
• Black plastic trim ring
• Owner's Manual
