About: JL Audio 10W7AE-3 W7 Series Anniversary Edition 10" 750W RMS Subwoofer - SVC 3 Ohm

10th Anniversary Edition - W7 10-inch Subwoofer (750 W, 3 Ω)

If you are seeking reference-grade sub-bass from a 10-inch driver, your search ends here. Total Car Audio in the UK called it like this when they reviewed the 10W7: "This gives an all round performance of such high quality on every level, that bettering it will be very hard to achieve." Not only does the 10W7 deliver amazing excursion capability for its size, but it also maintains complete composure under power and is able to track complex bass material with uncanny accuracy and power.

The 10W7AE is best used with amplifier power in the 300W - 750W range and is optimized to operate in a 1.25 cu. ft. (35.4 l) sealed enclosure, or a 1.5 cu. ft. (42.5 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

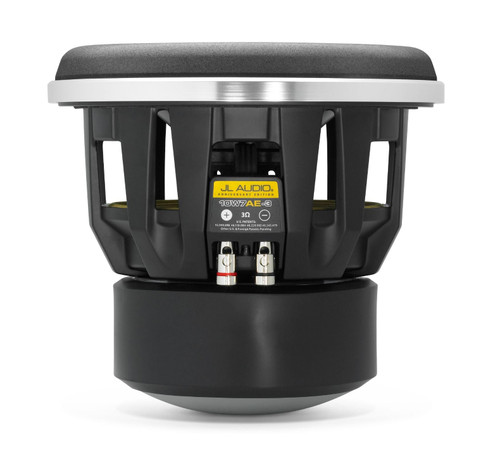

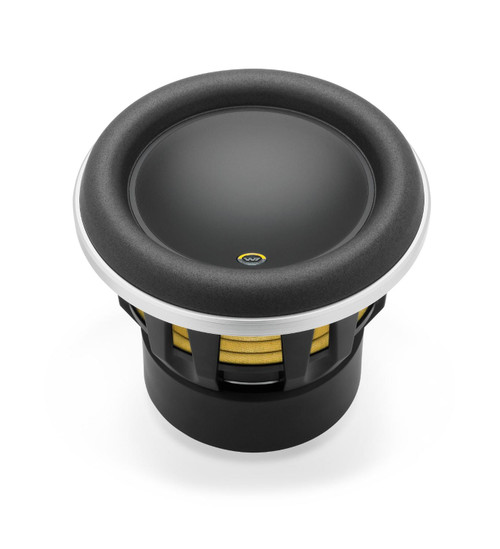

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but they are distinguished by the following cosmetic differences:

Satin-Black Powdercoated Baskets
Bright Anodized Surround Clamp Ring
Anniversary Edition Cone Badge
Anniversary Edition Terminal Label

General Specifications:

Continuous Power Handling (RMS): 750 W
Recommended Amplifier Power (RMS): 300 - 750 W
Nominal Impedance (Znom): 3 Ω

Physical Specifications:

Nominal Diameter: 10.0 in / 250 mm
Overall Diameter: 10.5 in / 267 mm
Mounting Hole Diameter: 8.74 in / 222 mm
Bolt Hole Circle Diameter: 9.34 in / 237 mm
Motor Outer Diameter: 6.55 in / 166 mm
Mounting Depth: 8.0 in / 203 mm
Driver Displacement: 0.09 cu ft / 2.5 L
Net Weight: 30 lbs / 13.6 kg

Parameters:

Free Air Resonance (Fs): 30.6 Hz
Electrical “Q” (Qes): 0.578
Mechanical “Q” (Qms): 7.647
Total Speaker “Q” (Qts): 0.537
Equivalent Compliance (Vas): 1.28 cu ft / 36.1 L
One-Way Linear Excursion (Xmax)*: 0.9 in / 23 mm
Reference Efficiency (no): 0.17%
Efficiency (1 W / 1 m)**: 84.3 dB SPL
Effective Piston Area (Sd): 59.8 sq in / 0.0386 sq m
DC Resistance (Re): 2.75 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”

Sealed Enclosure Specifications:

Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 1.0 in / 25 mm
Volume (net int.): 1.25 cu ft / 35.4 L
External Width (W): 14.5 in / 368 mm
External Height (H): 14.5 in / 368 mm
External Depth (D): 15.375 in / 391 mm
F3: 40.5 Hz
Fc: 43.5 Hz
Qtc: 0.763

Ported Enclosure Specifications:

Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 1.0 in / 25 mm
Volume (net int.): 1.5 cu ft / 42.5 L
External Width (W): 21.75 in / 552 mm
External Height (H): 14.5 in / 368 mm
External Depth (D): 14.625 in / 371 mm
Internal Slot Port Width (SW): 1.5 in / 38 mm
Internal Slot Port Height (SH): 13 in / 330 mm
Internal Slot Port Length (SL): 24.375 in / 619 mm
Port Extension Length (EL): 9 in / 229 mm
Tuning Frequency (Fb): 35.3 Hz
F3: 29.9 Hz

Enclosure Notes:

Net volumes given above do not include the air volume displaced by the speaker (Driver Displacement). This value must be added to the net volume along with the displacement of any braces and/or ports (if applicable) to arrive at a gross internal volume. Air inside a port is not part of the effective net volume. Calculate ports as solid, not hollow objects.

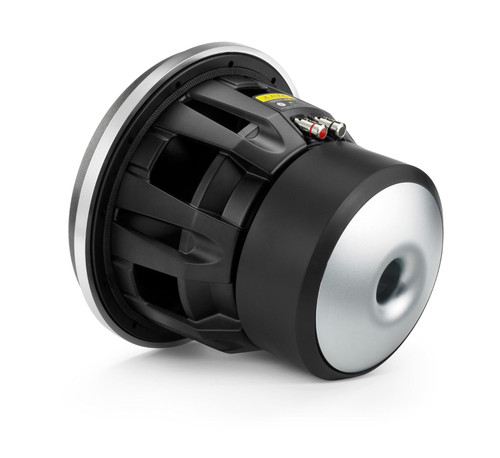

* The W7’s employ a pole vent to remove heat and pressure from the inside of the speaker.This vent is located at the rear of the speaker. A minimum distance of 0.75 in (19 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent.
The dimensions given for the enclosure examples above take all applicable displacements into consideration

Safety Notice:

It is absolutely essential that the completed subwoofer enclosure is mounted firmly to the vehicle with heavy steel bolts (0.5 in diameter) and large steel washers on both sides of the bolts. This will reduce the likelihood of occupant injury in the event of a collision or sudden deceleration

Features:

10" 3-ohm subwoofer

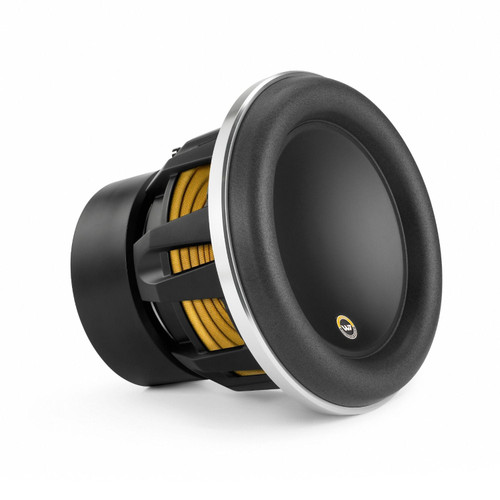

Polypropylene W-Cone with polyester foam surround
Solid cast-alloy basket
Power range: 250-750 watts RMS
Peak power handling: 1500 watts
Frequency response: 20-250 Hz
Sensitivity: 84.3 dB
Top-mount depth: 8-1/16"
Sealed box volume: 1.25 cubic feet
Ported box volume: 1.5 cubic feet
Grille not included

What's in the Box:

One 10" Single voice coil subwoofer (attached to an MDF baffle board with 12 Phillips-head screws)
Owner's manual
On-line product registration information
