JL Audio

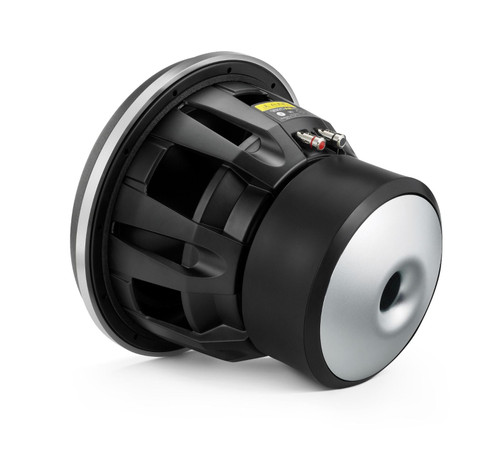

JL Audio 12W7AE-3 W7 Series Anniversary Edition 12" 1000W RMS Subwoofer - SVC 3 Ohm

$2,099.95
SKU:
12W7AE-3
UPC:
699440921152
Condition:
New
Availability:
Special Order - Usually Ships in 3-5 Days
Shipping:
Calculated at Checkout
Out of stock

JL Audio 12W7AE-3 W7 Series Anniversary Edition 12" 1000W RMS Subwoofer - SVC 3 Ohm

$2,099.95

Out of stock

About: JL Audio 12W7AE-3 W7 Series Anniversary Edition 12" 1000W RMS Subwoofer - SVC 3 Ohm

10th Anniversary Edition - W7 12-inch Subwoofer (1000 W, 3 Ω)

The 12W7AE brings serious performance to the table by combining the breakthrough of the long-excursion W7 design with a large 12-inch bore. It has been called "addictive," "seductive" and "the new subwoofer reference", by some of the world's toughest reviewers, and has earned these accolades by delivering nearly limitless dynamics, exceptional balance and world-class sound quality.

This potent driver is best used with amplifier power in the 400W - 1000W range and is optimized to operate in a 1.375 cu. ft. (38.9 l) sealed enclosure, or a 1.75 cu. ft. (49.6 l) ported enclosure.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but they are distinguished by the following cosmetic differences:

  • Satin-Black Powdercoated Baskets
  • Bright Anodized Surround Clamp Ring
  • Anniversary Edition Cone Badge
  • Anniversary Edition Terminal Label

General Specifications:

  • Continuous Power Handling (RMS): 1000 W
  • Recommended Amplifier Power (RMS): 400 - 1000 W
  • Nominal Impedance (Znom): 3 Ω

Physical Specifications:

  • Nominal Diameter: 12.0 in / 300 mm
  • Overall Diameter: 12.5 in / 318 mm
  • Mounting Hole Diameter: 10.5 in / 267 mm
  • Bolt Hole Circle Diameter: 11.27 in / 286 mm
  • Motor Outer Diameter: 7.5 in / 191 mm
  • Mounting Depth: 9.5 in / 241 mm
  • Driver Displacement: 0.14 cu ft / 4.0 L
  • Net Weight: 45 lbs / 20.4 kg

Parameters:

  • Free Air Resonance (Fs): 27.2 Hz
  • Electrical “Q” (Qes): 0.514
  • Mechanical “Q” (Qms): 7.807
  • Total Speaker “Q” (Qts): 0.482
  • Equivalent Compliance (Vas): 2.33 cu ft / 66.0 L
  • One-Way Linear Excursion (Xmax)*: 1.15 in / 29 mm
  • Reference Efficiency (no): 0.25%
  • Efficiency (1 W / 1 m)**: 86.2 dB SPL
  • Effective Piston Area (Sd): 84 sq in / 0.0542 sq m
  • DC Resistance (Re): 2.47 Ω
  • * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
  • ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”

Sealed Enclosure Specifications:

  • Wall Thickness: 0.75 in / 19 mm
  • Front Baffle Thickness: 1.0 in / 25 mm
  • Volume (net int.): 1.375 cu ft / 38.94 L
  • External Width (W): 15 in / 381 mm
  • External Height (H): 15 in / 381 mm
  • External Depth (D): 16.125 in / 410 mm
  • F3: 40.4 Hz
  • Fc: 44.7 Hz
  • Qtc: 0.791

Ported Enclosure Specifications:

  • Wall Thickness: 0.75 in / 19 mm
  • Front Baffle Thickness: 1.0 in / 25 mm
  • Volume (net int.): 1.75 cu ft / 49.6 L
  • External Width (W): 22.75 in / 578 mm
  • External Height (H): 15 in / 381 mm
  • External Depth (D): 15.875 in / 403 mm
  • Internal Slot Port Width (SW): 1.875 in / 48 mm
  • Internal Slot Port Height (SH): 13.5 in / 343 mm
  • Internal Slot Port Length (SL): 24.75 in / 629 mm
  • Port Extension Length (EL): 7.9375 in / 202 mm
  • Tuning Frequency (Fb): 36.7 Hz
  • F3: 32.8 Hz

Enclosure Notes:

  • Net volumes given above do not include the air volume displaced by the speaker (Driver Displacement). This value must be added to the net volume along with the displacement of any braces and/or ports (if applicable) to arrive at a gross internal volume. Air inside a port is not part of the effective net volume. Calculate ports as solid, not hollow objects
  • The W7’s employ a pole vent to remove heat and pressure from the inside of the speaker. This vent is located at the rear of the speaker. A minimum distance of 0.75 in (19 mm) is required between the back of the speaker and any wall of the enclosure to allow proper operation of the pole vent
  • The dimensions given for the enclosure examples above take all applicable displacements into consideration

Safety Notice:

  • It is absolutely essential that the completed subwoofer enclosure is mounted firmly to the vehicle with heavy steel bolts (0.5 in diameter) and large steel washers on both sides of the bolts. This will reduce the likelihood of occupant injury in the event of a collision or sudden deceleration

Features:

  • 12" 3-ohm subwoofer
  • Polypropylene W-Cone with polyester foam surround
  • Solid cast-alloy basket
  • Power range: 400-1000 watts RMS
  • Peak power handling: 2000 watts
  • Frequency response: 18-200 Hz
  • Sensitivity: 86.2 dB
  • Top-mount depth: 9-1/2"
  • Sealed box volume: 1.375 cubic feet
  • Ported box volume: 1.75 cubic feet
  • Grille not included

What's in the Box:

  • One 12" Single voice coil subwoofer (attached to an MDF baffle board with 12 Phillips-head screws)
  • Owner's manual
  • Online product registration information
