JL Audio

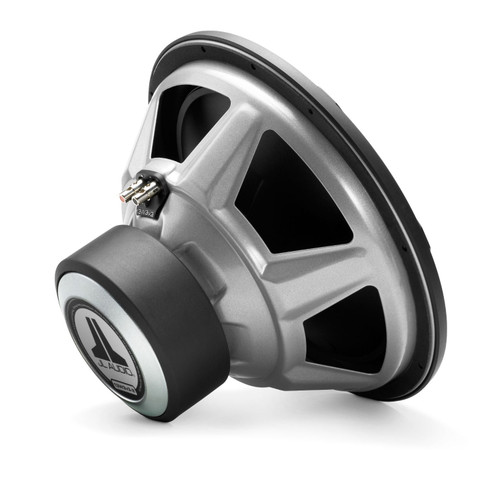

JL Audio 13W3v3-2 W3v3 Series 13.5" 600W RMS Subwoofer - SVC 2 Ohm

$599.95
SKU:
13W3v3-2
UPC:
699440921565
Condition:
New
Availability:
Special Order - Usually Ships in 3-5 Days
Shipping:
Calculated at Checkout
Out of stock

JL Audio 13W3v3-2 W3v3 Series 13.5" 600W RMS Subwoofer - SVC 2 Ohm

$599.95

Out of stock

About: JL Audio 13W3v3-2 W3v3 Series 13.5" 600W RMS Subwoofer - SVC 2 Ohm

W3v3 13.5-inch Subwoofer (600 W, 2 Ω)

If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.

As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.

The 13W3v3-2 is best used with amplifier power in the 150W - 600W range and is optimized to operate in a moderate size 1.75 cu. ft. (49.6 l) sealed enclosure, or a 2.5 cu. ft. (70.8 l) ported enclosure.

General Specifications:

  • Continuous Power Handling (RMS): 600 W
  • Recommended Amplifier Power (RMS): 150 - 600 W
  • Nominal Impedance (Znom): 2 Ω

Physical Specifications:

  • Nominal Diameter: 13.5 in / 345 mm
  • Overall Diameter: 14.0 in / 356 mm
  • Mounting Hole Diameter: 12.5625 in / 319 mm
  • Bolt Hole Circle Diameter: 13.2 in / 335 mm
  • Motor Outer Diameter: 5.79 in / 147 mm
  • Mounting Depth: 7.63 in / 194 mm
  • Driver Displacement: 0.096 cu ft / 2.72 liters
  • Net Weight: 17.75 lbs / 8.05 kg

Parameters:

  • Free Air Resonance (Fs): 24.70 Hz
  • Electrical “Q” (Qes): 0.544
  • Mechanical “Q” (Qms): 6.936
  • Total Speaker “Q” (Qts): 0.504
  • Equivalent Compliance (Vas): 4.635 cu ft / 131.26 L
  • One-Way Linear Excursion (Xmax)*: 0.610 in / 15.5 mm
  • Reference Efficiency (no): 0.35%
  • Efficiency (1 W / 1 m)**: 87.63 dB SPL
  • Effective Piston Area (Sd): 103.850 sq in / 0.0670 sq m
  • DC Resistance (Re): 1.659 Ω
  • * Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
  • ** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”

Sealed Enclosure Specifications:

  • Wall Thickness 0.75 in / 19 mm
  • Front Baffle Thickness 0.75 in / 19 mm
  • Volume (net int.) 1.75 cu ft / 49.6 L
  • External Width (W) 16.625 in / 422 mm
  • External Height (H) 16 in / 406 mm
  • External Depth (D) 16 in / 406 mm
  • F3 37.7 Hz
  • Fc 47.2 Hz
  • Qtc 0.96

Ported Enclosure Specifications:

  • Wall Thickness: 0.75 in / 19 mm
  • Front Baffle Thickness: 0.75 in / 19 mm
  • Volume (net int.): 2.5 cu ft / 70.8 L
  • External Width (W): 23.625 in / 600 mm
  • External Height (H): 17 in / 432 mm
  • External Depth (D): 18 in / 457 mm
  • Internal Slot Port Width (SW): 1.5 in / 38 mm
  • Internal Slot Port Height (SH): 15.5 in / 394 mm
  • Internal Slot Port Length (SL): 36.25 in / 921 mm
  • Port Extension Length (EL): 17.5 in / 445 mm
  • Tuning Frequency (Fb): 25 Hz
  • F3: 35 Hz

Enclosure Notes:

  • The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure
  • All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account
  • When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support
  • We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance
  • All specifications are subject to change without notice

Safety Notice:

  • Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity
  • When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van

Features:

  • 13.5" 2-ohm subwoofer
  • Mineral-filled polypropylene cone with nitrile-butylene rubber surround
  • Power range: 150-600 watts RMS
  • Peak power handling:1,200 watts
  • Frequency response: 20-200 Hz
  • Sensitivity: 87.63 dB
  • Top-mount depth: 7-5/8"
  • Sealed box volume: 1.75 cubic feet
  • Ported box volume: 2.5 cubic feet
  • Grille not included

What's in the Box:

  • 13.5" Subwoofer
  • Black plastic trim ring
  • Owner's Manual
