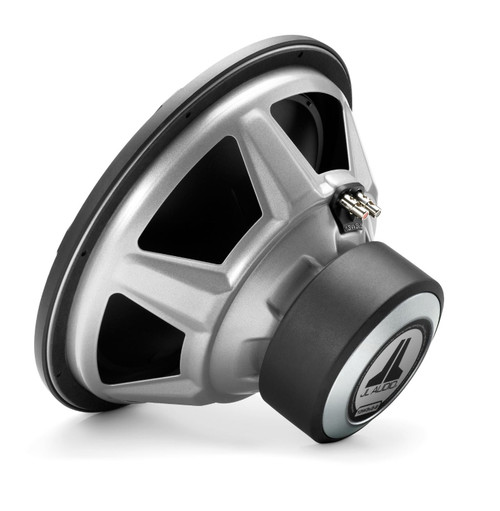

JL Audio 13W3v3-4 W3v3 Series 13.5" 600W RMS Subwoofer - SVC 4 Ohm

JL Audio

JL Audio 13W3v3-4 W3v3 Series 13.5" 600W RMS Subwoofer - SVC 4 Ohm

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$859.99

SKU: 13W3v3-4

UPC: 699440921572

Condition: New

Availability: Special Order - Usually Ships in 3-5 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: JL Audio 13W3v3-4 W3v3 Series 13.5" 600W RMS Subwoofer - SVC 4 Ohm

W3v3 13.5-inch Subwoofer (600 W, 4 Ω)

If you have the space, it makes a tremendous sense to maximize your subwoofer system's piston area to enhance efficiency (and output). It gets even better when the larger driver delivers additional power handling and excursion. For the preceding reasons, the 13W3v3 can be the best choice for those seeking high output with great sound quality at medium power levels.

As with the smaller W3v3's, several exclusive JL Audio technologies and proprietary assembly techniques are applied to the 13W3v3 to enhance linearity and reliability.

The 13W3v3-4 is best used with amplifier power in the 150W - 600W range and is optimized to operate in a moderate size 1.5 cu. ft. (42.5 l) sealed enclosure, or a 2.25 cu. ft. (63.7 l) ported enclosure.

General Specifications:

Continuous Power Handling (RMS): 600 W
Recommended Amplifier Power (RMS): 150 - 600 W
Nominal Impedance (Znom): 4 Ω

Physical Specifications:

Nominal Diameter: 13.5 in / 345 mm
Overall Diameter: 14.0 in / 356 mm
Mounting Hole Diameter: 12.5625 in / 319 mm
Bolt Hole Circle Diameter: 13.2 in / 335 mm
Motor Outer Diameter: 5.79 in / 147 mm
Mounting Depth: 7.63 in / 194 mm
Driver Displacement: 0.096 cu ft / 2.72 liters
Net Weight: 17.75 lbs / 8.05 kg

Parameters:

Free Air Resonance (Fs): 23.66 Hz
Electrical “Q” (Qes): 0.465
Mechanical “Q” (Qms): 6.774
Total Speaker “Q” (Qts): 0.435
Equivalent Compliance (Vas): 4.793 cu ft / 135.74 L
One-Way Linear Excursion (Xmax)*: 0.610 in / 15.5 mm
Reference Efficiency (no): 0.37%
Efficiency (1 W / 1 m)**: 87.90 dB SPL
Effective Piston Area (Sd): 103.850 sq in / 0.0670 sq m
DC Resistance (Re): 3.569 Ω
* Xmax specifications are derived via one-way voice coil overhang method with no correction factors applied.
** Efficiency (1 W / 1 m) is not an accurate indicator of a subwoofer’s output capability and should not be used as a comparison to other subwoofers to determine which one is “louder”

Sealed Enclosure Specifications:

Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 0.75 in / 19 mm
Volume (net int.): 1.500 cu ft / 42.5 L
External Width (W): 16 in / 406 mm
External Height (H): 16 in / 406 mm
External Depth (D): 14.625 in / 371 mm
F3: 40.4 Hz
Fc: 48.5 Hz
Qtc: 0.89

Ported Enclosure Specifications:

Wall Thickness: 0.75 in / 19 mm
Front Baffle Thickness: 0.75 in / 19 mm
Volume (net int.): 2.25 cu ft / 63.7 L
External Width (W): 21.75 in / 552 mm
External Height (H): 17 in / 432 mm
External Depth (D): 18 in / 457 mm
Internal Slot Port Width (SW): 1.5 in / 38 mm
Internal Slot Port Height (SH): 15.5 in / 394 mm
Internal Slot Port Length (SL): 34.375 in / 873 mm
Port Extension Length (EL): 15.625 in / 397 mm
Tuning Frequency (Fb): 27 Hz
F3: 35 Hz

Enclosure Notes:

The enclosure recommendations listed above are external dimensions which assume the use of 0.75 in (19 mm) thick material. If you are using 0.625 in (16 mm) thick material, subtract 0.25 in (6.5 mm) from each dimension. Do not use any material with a thickness of less than 0.625 in (16 mm) as this may compromise the rigidity of the enclosure
All enclosure volumes listed above are net internal volumes! Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account
When using multiple subwoofers in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorized JL Audio dealer or JL Audio Technical Support
We recommend the use of this speaker in a bi-amplified system using high-quality satellite speakers and a high-quality amplifier. We do not recommend the use of this subwoofer with a passive crossover (coil), as this type of device will adversely affect performance
All specifications are subject to change without notice

Safety Notice:

Prolonged exposure to sound pressure levels in excess of 100dB can cause permanent hearing loss. This high-performance speaker can exceed this level. Please exercise restraint in its operation in order to preserve your ability to enjoy its fidelity
When installing a subwoofer in your vehicle, it is extremely important to secure the enclosure firmly. We recommend bolting the enclosure through the metal of the floorpan or the frame of the vehicle with large diameter washers for reinforcement. If an enclosure is not firmly attached, it can become a projectile in a collision. This is particularly important in a hatchback, station wagon, sports utility vehicle, or van

Features:

13.5" 4-ohm subwoofer
Mineral-filled polypropylene cone with nitrile-butylene rubber surround
Power range: 150-600 watts RMS
Peak power handling: 1,200 watts
Frequency response: 20-200 Hz
Sensitivity: 87.9 dB
Top-mount depth: 7-5/8"
Sealed box volume: 1.5 cubic feet
Ported box volume: 2.25 cubic feet
Grille not included

What's in the Box:

13.5" Subwoofer
Black plastic trim ring
Owner's Manual
