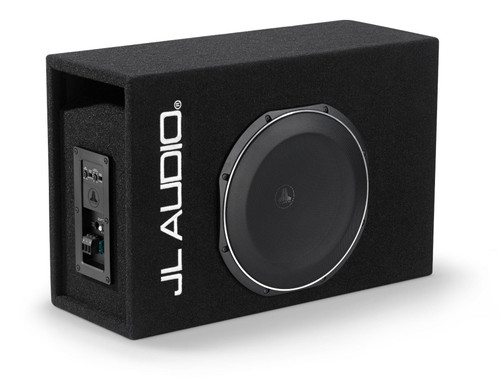

About: JL Audio ACP112LG-TW1 MicroSub+ Single 12" Powered Subwoofer with 400W RMS Amplifier
Amplified Subwoofer System with Single 12TW1-0.25 Subwoofer, Built-In 400W Class D Amplifier, Black Carpet - Ported Enclosure
With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance TW1 driver. By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.
Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 12TW1 Subwoofer. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.
Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.
Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.
Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the Subwoofer.
Construction: CNC-Cut High-Grade MDF
Amplifier power: Built-in DCD™ Class D amplifier (400 W @ 0.25 Ω)
Nominal Impedance: 0.25 Ω
Enclosure and Subwoofer Built in USA with global components.
General Specifications:
- Continuous Power Handling (RMS): Built-in amplifier 400 W @ 0.25 Ω
- System Nominal Impedance: 0.25 Ω
- Input Voltage Range @ RCA Inputs: 70 mV - 1.40 V RMS
- Input Voltage Range @ High-Level Inputs: 280 mV - 5.4 V RMS
- Recommended Copper Power / Ground Wire Gauge: 8 AWG wire
- Fuse Rating: 30 A (ATO or ATC)
- Enclosure Type: Slot-ported, Low-profile
- Finish: Black carpet
- Grille Included: Black Steel Mesh
Signal Processing:
- Filter Mode(s): Low-Pass only
- Filter Slope(s): 12 dB/octave
- Filter Frequency Range: 50 Hz - 200 Hz
- Output Polarity Switch: Yes
- Remote Subwoofer Level Control: Optional (RBC-1)
Features:
- 12" TW1 subwoofer in ported enclosure
- Woofer impedance: 0.25 ohms
- Built-in Class D amp delivers 400 watts RMS at 0.25 ohms
- 8-gauge amp wiring kit required (sold separately)
- Fuse rating: 30 A
- Dimensions: 23-3/4"W x 15-3/4"H x 9-1/4"D
- Weight: 40.4 lbs
What's in the Box:
- MicroSub+ enclosure (loaded with one 12TW1-0.25 subwoofer and built-in amplifier)
- Black metal grille (installed)
- Power connection plug (installed)
- 30-amp ATO fuse (installed)
- 12" Speaker level input harness
- Owner's manual
