JL Audio

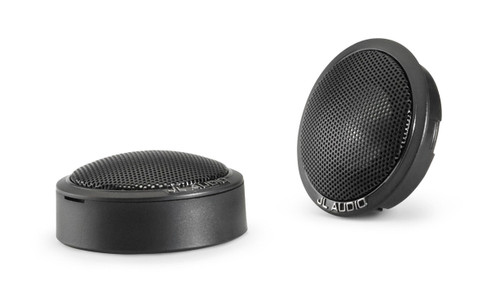

JL Audio C1-100ct C1 Series 1" 60W RMS Aluminum Dome Tweeters

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$119.99

SKU:: C1-100ct
UPC:: 699440990493
Condition:: New
Availability:: Usually Ships in 1-2 Days
Shipping:: Calculated at Checkout

JL Audio C1-100ct C1 Series 1" 60W RMS Aluminum Dome Tweeters

$119.99

Description
Shipping & Returns

Description

About: JL Audio C1-100ct C1 Series 1" 60W RMS Aluminum Dome Tweeters

C1 component tweeters are engineered to deliver refined performance, with excellent off-axis response and high-frequency extension. Utilizing true, edge driven 1.0-inch aluminum domes with silk suspensions, the C1-100ct component tweeters provide smooth, detailed reproduction of treble frequencies from 3.6 – 22 kHz.

The tweeters can be flush-mounted or surface-mounted with the supplied fixtures to fit a wide variety of installation needs. Inline, outboard, 12 dB / octave, high-pass filters are included to ensure smooth response and reliability. These filters also are equipped with Advanced Tweeter Protection Circuitry to improve power handling and reliability. When it comes to value, C1 is the real deal! Sold as a pair. Surface-mount and flush-mount fixtures and grilles are included.

Specifications:

Continuous Power Handling (RMS): 60 W
Recommended Amplifier Power (RMS): 20 - 60 W / Ch.
System Efficiency: 91.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 3.6 kHz - 22 KHz ± 3 dB
*With supplied crossover

Tweeter Physical Specifications:

Flush Mount Fixture Diameter: 1.97 in / 50 mm
Surface Mount Fixture Diameter: 2.01 in / 51 mm
Flush Mount Mounting Hole Diameter: 1.75 in / 45 mm
Flush Mount Mounting Depth: 0.40 in / 10 mm
Flush Mount Tweeter Frontal Protrusion: 0.32 in / 8 mm
Surface Mount Tweeter Frontal Protrusion: 0.87 in / 22 mm

Crossover Physical Specifications:

Width (W): 1.96 in / 50 mm
Depth (D): 1.34 in / 34 mm
Height (H): 0.90 in / 23 mm

What's in the Box:

2 Tweeters (with 6" wires attached)
2 Crossovers
2 Flush mount housings (tweeters installed)
2 Surface mount housings
2 Metal spring clips (for flush mounting)
Four 5/8" Flat head screws
Two 25mm Stud bolts
Two 10mm Stud bolts
2 M5 Nuts
Owner's manual
