JL Audio C1-690 C1 Series 6"x9" 60W RMS Component Speaker System

JL Audio

JL Audio C1-690 C1 Series 6"x9" 60W RMS Component Speaker System

Name: Singh Electronics
Address: 7003 Steeles Avenue West, Toronto, ON, M9W 0A2, CA
Telephone: +1 (416) 745-1021
Price range: $

$268.00

$319.99

16% Off

SKU: C1-690

UPC: 699440990462

Condition: New

Availability: Usually Ships in 1-3 Days

Shipping: Calculated at Checkout

Select Quantity:

Adding to cart… The item has been added

Buy now pay later with

Learn more

+1 (416) 745-1021

Have more questions? Ask an Expert

Free shipping on orders over $200

30-Day Return Policy

Canadian Owned & Operated

Price Match Guarantee

Description
Warranty
Shipping & Returns

Descriptions

About: JL Audio C1-690 C1 Series 6"x9" 60W RMS Component Speaker System

2-Way Component System: 6 x 9-inch (150 x 230 mm) Woofer, 1.0-inch (25 mm) Aluminum Dome Tweeter

C1 speakers deliver real substance and great audio performance in a format designed for easy fit behind factory grilles.

To facilitate fit, spacer/adaptor rings are included allowing the C1-690 woofers to be installed in bottom-mount applications. Surface and flush mounts are included with C1 tweeters for maximum installation versatility.

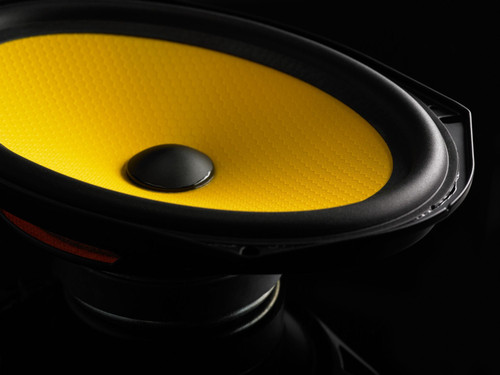

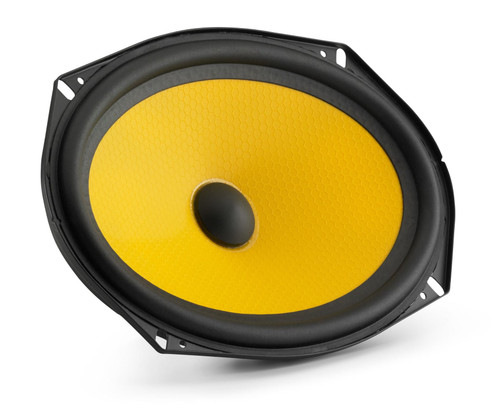

C1 woofer drivers benefit from proprietary FEA modeling and JL Audio's expertise in low-frequency driver design. This knowledge is used to create speakers that can play loudly, while maintaining a smooth, dynamic, low distortion sound. At the core of the C1-690 is a proprietary, stamped, steel 6 x 9-inch (150 x 230 mm) oval frame and a DMA-optimized motor system. A mineral-filled, injection-molded polypropylene cone is suspended with a rubber surround on the front, and a carefully engineered flat Conex® spider at the top of the voice coil, to precisely control motion and prevent impact between the voice coil and the back plate. Tinsel leads are carefully routed and attached to the spider to prevent fatigue and buzzing. These are the same kinds of features and materials normally found on much more expensive loudspeakers.

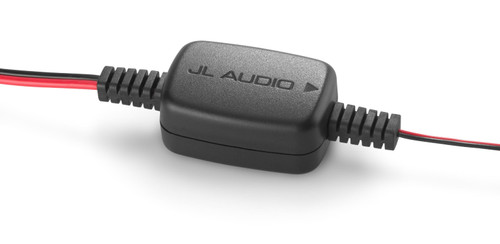

Equipped with a true, edge-driven, 1-inch aluminum dome tweeter, the C1-690 stands further apart from others in its category with superior high-frequency clarity and definition. The tweeter’s design has inherently excellent off-axis response and high-frequency extension. It also benefits from the damping of a silk surround suspension and Ferrofluid in the voice coil gap, along with the superior strength of a neodymium magnet circuit. An in-line, outboard 2nd order high-pass filter, with Advanced Tweeter Protection Circuitry, is included to further enhance smoothness and improve power handling.

When it comes to value, C1 is the real deal!

Sold as a pair. Grilles not available.

General Specifications:

Continuous Power Handling (RMS): 60 W
Recommended Amplifier Power (RMS): 10 - 100 W / Ch.
System Efficiency: 91.5 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 39 Hz - 22 KHz ± 3 dB

Woofer Physical Specifications:

Frame Outer Diameter*: 6.38 x 9.33 in / 162 x 237 mm
Grille Tray Outer Diameter: N/A
Motor Outer Diameter: 3.54 in / 90 mm
Frontal Coaxial Tweeter Protrusion: N/A
Frontal Grille Protrusion: N/A
Mounting Hole Diameter: N/A
Mounting Depth: 2.75 in / 70 mm
*Does not take into account mounting tabs
**Frontal grille protrusion measured from mounting surface

Tweeter Physical Specifications:

Flush Mount Fixture Diameter: 1.97 in / 50 mm
Surface Mount Fixture Diameter: 2.01 in / 51 mm
Flush Mount Mounting Hole Diameter: 1.75 in / 45 mm
Flush Mount Mounting Depth: 0.40 in / 10 mm
Flush Mount Tweeter Frontal Protrusion: 0.32 in / 8 mm
Surface Mount Tweeter Frontal Protrusion: 0.87 in / 22 mm

Crossover Physical Specifications:

Depth (D): 1.34 in / 34 mm
Height (H): 0.90 in / 23 mm
Width (W): 1.96 in / 50 mm

Features:

Component speaker system includes 2 woofers and 2 tweeters
6"x9" injection-molded mineral-filled polypropylene woofer cone with rubber surround
Separate 1" aluminum edge-driven dome tweeter with in-line high pass filter
Handles up to 60 watts RMS (225 watts peak power)
Frequency response: 39-22,000 Hz
Sensitivity: 94 dB at 2.83 volts
Top-mount depth: 2-3/4"
Grilles not included

What's in the Box:

2 C1-690cw Woofers
2 Bottom mount woofer brackets
2 C1-100ct Tweeters (with 6" wires attached)
2 Tweeter crossovers
2 Flush mount tweeter housings (tweeters installed)
2 Surface mount tweeter housings
2 Metal spring clips for tweeter fixtures
2 Crimp-on 0.187" Female quick slides
2 Crimp-on 0.110" Female quick slides
Four 5/8" Flat head screws
Eight 3/4" Pan head screws
Eight 1-1/2" Pan head screws
8 Speed clips
Two 25mm Stud bolts
Two 10mm Stud bolts
2 M5 Nuts
Owner's manual
